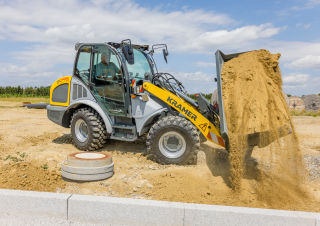

8095L Kramer 8095L Specifications & Technical Data (2024—2026)

Weight: 5.3t – Standard tyres: 12.5–20 – Bucket width: 1.95m – Bucket capacity: 0.85m³ – Steering mode: AL – Transport length: 5.58m

8095L

Years of manufacture: 2024—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 8095L Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.3 t

Standard tyres: 12.5–20

Bucket width: 1.95 m

Bucket capacity: 0.85 m³

Steering mode: AL

Transport length: 5.58 m

Transport width: 1.78 m

Transport height: 2.49 m

Travel speed: 20 km/h

Max. discharge height: 2.81 m

Turning radius outside: 2.84 m

Lifting force: 42.8 kN

Engine manuf.: Deutz

Engine type: TCD2.9

Engine power: 55.4 kW

Displacement: 2.924 l

Max. torque: 300/1600 Nm

Emission level: V

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Kramer 8095L FAQ

When was the Kramer 8095L manufactured?

The Kramer 8095L was first produced in 2024.

How much does the Kramer 8095L wheel loader weigh?

The Kramer 8095L wheel loader weighs 5.3 tons.

What are the transport dimensions of the Kramer 8095L wheel loader?

The Kramer 8095L has a transport length of 5.58 meters, a transport width of 1.78 meters, and a transport height of 2.49 meters.

What is the travel speed of the Kramer 8095L wheel loader?

The Kramer 8095L has a travel speed of 20 km/h.

What is the standard tyre size of the Kramer 8095L?

The Kramer 8095L has standard tyres sized 12.5u201320.

What are the maneuverability specifications of the Kramer 8095L wheel loader?

The Kramer 8095L features all-wheel steering and has an outside turning radius of 2.84 meters.

What is the lifting force of the Kramer 8095L wheel loader?

The Kramer 8095L wheel loader has a lifting force of 42.8 kN.

What is the maximum discharge height of the Kramer 8095L?

The Kramer 8095L has a maximum discharge height of 2.81 meters.

What are the bucket specifications of the Kramer 8095L wheel loader?

The Kramer 8095L wheel loader has a bucket capacity of 0.85 cubic meters and a bucket width of 1.95 meters.
