8095 Kramer 8095 Specifications & Technical Data (2014—2021)

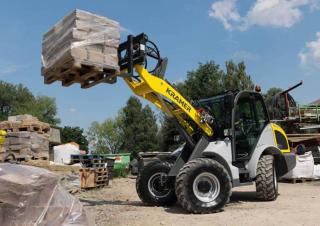

The Kramer 8095 is a wheel loader manufactured by Kramer from 2014 to 2021. It has a weight of 4.99 tons and a transport length of…

The Kramer 8095 is a wheel loader manufactured by Kramer from 2014 to 2021. It has a weight of 4.99 tons and a transport length of 5.41 meters. The bucket capacity is 0.7 cubic meters with a bucket width of 1.95 meters. The maximum discharge height is 2.58 meters and it has a travel speed of 20 km/h. The transport width is 1.78 meters and the transport height is 2.48 meters. The turning radius outside is 2.84 meters. The special equipment includes a quick hitch hydr. The bucket capacity ranges from 0.95 cubic meters to 0.95 cubic meters.

8095

Years of manufacture: 2014—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 8095 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.99 t

Standard tyres: 12.5-20

Bucket width: 1.95 m

Bucket capacity: 0.7 m³

Bucket capacity min.: 0.95 m³

Bucket capacity max.: 0.95 m³

Steering mode: AL

Transport length: 5.41 m

Transport width: 1.78 m

Transport height: 2.48 m

Travel speed: 20 km/h

Max. discharge height: 2.58 m

Turning radius outside: 2.84 m

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

No. of cylinders: 4

Emission level: III B

More technical details, like: lifting force, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Kramer 8095 FAQ

When was the Kramer 8095 manufactured?

The Kramer 8095 was manufactured from 2014 to 2021.

How much does the Kramer 8095 wheel loader weigh?

The Kramer 8095 wheel loader weighs 4.99 tons.

What are the transport dimensions of the Kramer 8095 wheel loader?

The Kramer 8095 has a transport length of 5.41 meters, a transport width of 1.78 meters, and a transport height of 2.48 meters.

What is the travel speed of the Kramer 8095 wheel loader?

The Kramer 8095 has a travel speed of 20 km/h.

What is the standard tyre size of the Kramer 8095 wheel loader?

The Kramer 8095 wheel loader is equipped with standard tyres sized 12.5-20.

What are the maneuverability specifications of the Kramer 8095 wheel loader?

The Kramer 8095 wheel loader has an outside turning radius of 2.84 meters and features all-wheel steering.

What is the maximum discharge height of the Kramer 8095 wheel loader?

The Kramer 8095 wheel loader has a maximum discharge height of 2.58 meters.

What are the bucket capacity and dimensions of the Kramer 8095 wheel loader?

The Kramer 8095 wheel loader has a bucket capacity of 0.7 mu00b3, with both minimum and maximum bucket capacities listed as 0.95 mu00b3, and a bucket width of 1.95 meters.

How much is a Kramer 8095 Wheel loader (2014u20132021) worth?

The residual value of the Kramer 8095 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
