8085T Kramer 8085T Specifications & Technical Data (2021—2023)

The Kramer 8085T is a wheel loader manufactured since 2021. It has a weight of 5.5 tons and a transport length of 5.89 meters. The…

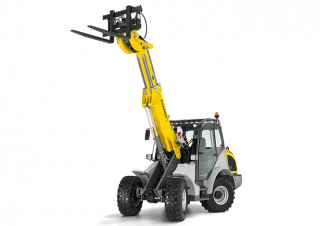

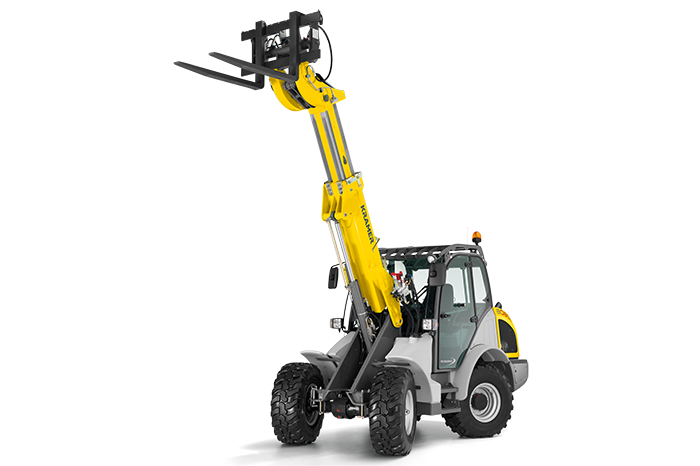

The Kramer 8085T is a wheel loader manufactured since 2021. It has a weight of 5.5 tons and a transport length of 5.89 meters. The bucket capacity ranges from 0.81 to 1.5 cubic meters, with a bucket width of 1.85 meters. The maximum discharge height is 4.01 meters. It has a travel speed of 20 km/h and a transport width of 1.78 meters. The transport height is 2.59 meters, and the turning radius outside is 2.84 meters. Special equipment includes a diesel particulate filter, quick hitch hydraulic and mechanical, and telescopic capabilities.

8085T

Years of manufacture: 2021—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 8085T Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.5 t

Standard tyres: 12.5–20

Bucket width: 1.85 m

Bucket capacity: 0.85 m³

Bucket capacity min.: 0.81 m³

Bucket capacity max.: 1.5 m³

Steering mode: AL

Transport length: 5.89 m

Transport width: 1.78 m

Transport height: 2.59 m

Travel speed: 20 km/h

Max. discharge height: 4.01 m

Turning radius outside: 2.84 m

Lifting force: 31 kN

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.925 l

Revolutions at max torque: 1600 rpm

Max. torque: 300/1600 Nm

No. of cylinders: 4

Cylinder bore x stroke: 92x110 mm

Emission level: EU V

More technical details, like: model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: Yes

Download datasheets (PDF)

Kramer 8085T FAQ

When was the Kramer 8085T manufactured?

The Kramer 8085T was manufactured from 2021 to 2023.

How much does the Kramer 8085T wheel loader weigh?

The Kramer 8085T wheel loader weighs 5.5 tons.

What are the transport dimensions of the Kramer 8085T wheel loader?

The Kramer 8085T has a transport length of 5.89 meters, a transport width of 1.78 meters, and a transport height of 2.59 meters.

What is the travel speed of the Kramer 8085T wheel loader?

The Kramer 8085T has a travel speed of 20 km/h.

What are the undercarriage specifications of the Kramer 8085T wheel loader?

The Kramer 8085T wheel loader is equipped with standard tyres sized 12.5u201320.

What are the maneuverability specifications of the Kramer 8085T?

The Kramer 8085T has an outside turning radius of 2.84 meters and features all-wheel steering.

What is the lifting force of the Kramer 8085T wheel loader?

The Kramer 8085T wheel loader has a lifting force of 31 kN.

What is the maximum discharge height of the Kramer 8085T wheel loader?

The Kramer 8085T wheel loader has a maximum discharge height of 4.01 meters.

What are the specifications of the bucket on the Kramer 8085T wheel loader?

The Kramer 8085T wheel loader has a bucket with a capacity ranging from 0.81 to 1.5 cubic meters, a standard capacity of 0.85 cubic meters, and a bucket width of 1.85 meters.
