8085 Kramer 8085 Specifications & Technical Data (2021—2023)

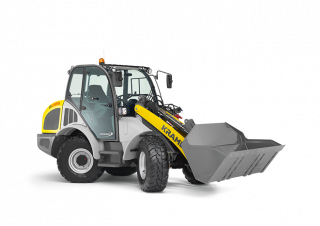

The Kramer 8085 is a wheel loader manufactured since 2021. It has a weight of 4.75 tons and a transport length of 5.28 meters. The…

The Kramer 8085 is a wheel loader manufactured since 2021. It has a weight of 4.75 tons and a transport length of 5.28 meters. The bucket capacity ranges from 0.75 to 1.5 cubic meters, with a bucket width of 1.85 meters. The maximum discharge height is 2.56 meters. It has a travel speed of 20 km/h and a transport width of 1.78 meters. The transport height is 2.48 meters, and the turning radius outside is 2.84 meters. Special equipment includes a diesel particulate filter and a quick hitch hydraulic mechanism.

8085

Years of manufacture: 2021—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 8085 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.75 t

Standard tyres: 12.5–20

Bucket width: 1.85 m

Bucket capacity: 0.85 m³

Bucket capacity min.: 0.75 m³

Bucket capacity max.: 1.5 m³

Steering mode: AL

Transport length: 5.28 m

Transport width: 1.78 m

Transport height: 2.48 m

Travel speed: 20 km/h

Max. discharge height: 2.56 m

Turning radius outside: 2.84 m

Lifting force: 43.8 kN

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.925 l

Revolutions at max torque: 1600 rpm

Max. torque: 300/1600 Nm

No. of cylinders: 4

Cylinder bore x stroke: 92x110 mm

Emission level: EU V

More technical details, like: model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Kramer 8085 FAQ

When was the Kramer 8085 manufactured?

The Kramer 8085 was manufactured from 2021 to 2023.

How much does the Kramer 8085 wheel loader weigh?

The Kramer 8085 wheel loader weighs 4.75 tons.

What are the transport dimensions of the Kramer 8085 wheel loader?

The Kramer 8085 has a transport length of 5.28 meters, a transport width of 1.78 meters, and a transport height of 2.48 meters.

What is the travel speed of the Kramer 8085 wheel loader?

The Kramer 8085 wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the Kramer 8085 wheel loader?

The Kramer 8085 wheel loader is equipped with standard tyres sized 12.5u201320.

What are the maneuverability specifications of the Kramer 8085 wheel loader?

The Kramer 8085 wheel loader has an outside turning radius of 2.84 meters and features all-wheel steering.

What is the lifting force of the Kramer 8085 wheel loader?

The Kramer 8085 wheel loader has a lifting force of 43.8 kN.

What is the maximum discharge height of the Kramer 8085?

The Kramer 8085 has a maximum discharge height of 2.56 meters.

What are the specifications of the bucket on the Kramer 8085 wheel loader?

The Kramer 8085 wheel loader has a bucket with a capacity ranging from 0.75 to 1.5 cubic meters, a standard capacity of 0.85 cubic meters, and a bucket width of 1.85 meters.
