8075 Kramer 8075 Specifications & Technical Data (2014—2019)

Model rating: 10,00 / 10

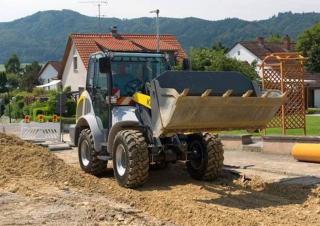

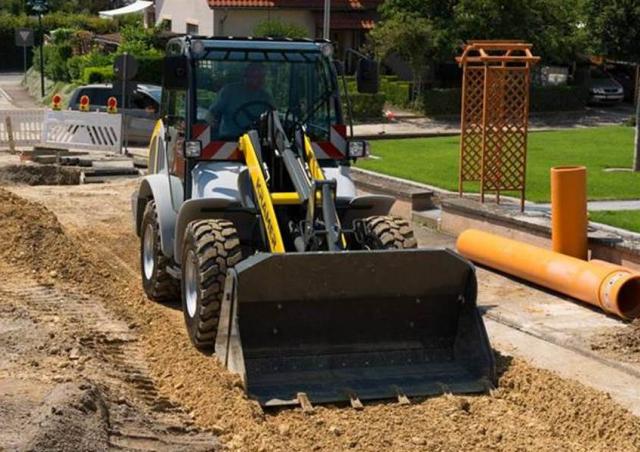

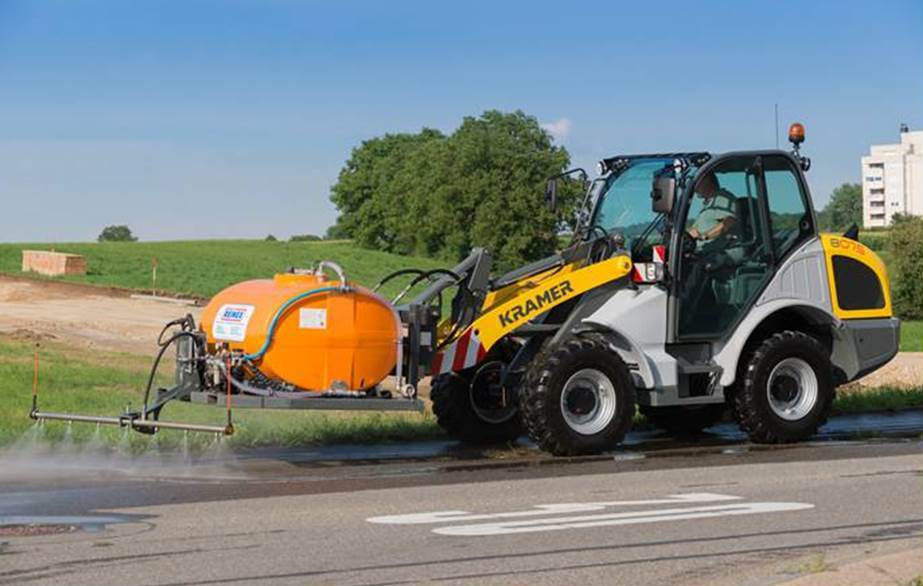

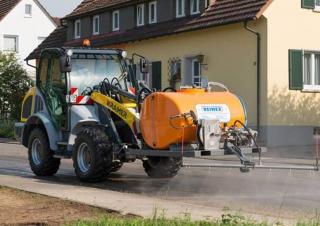

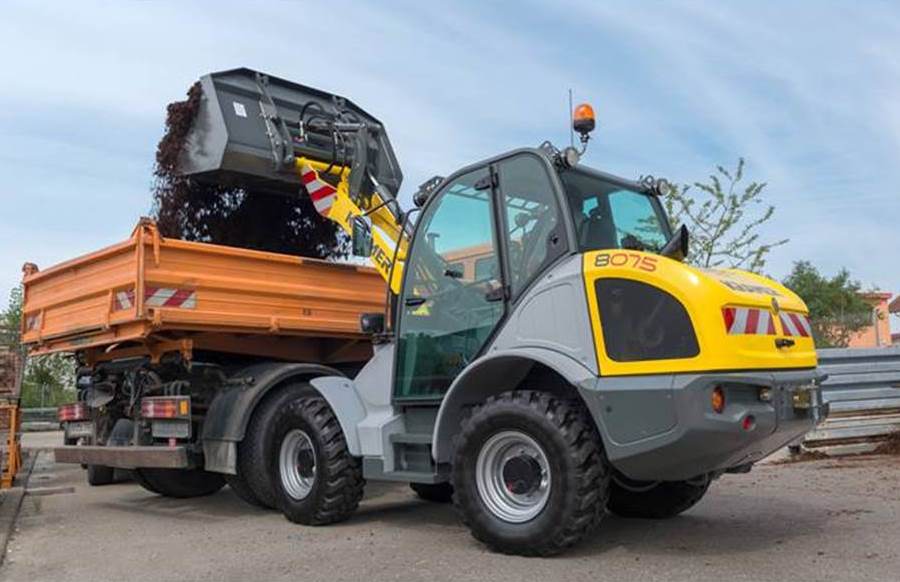

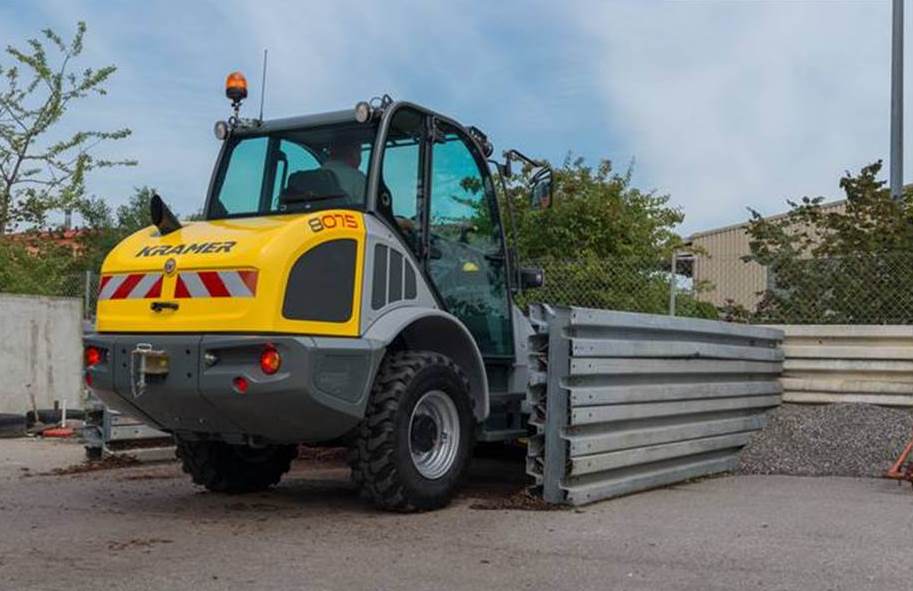

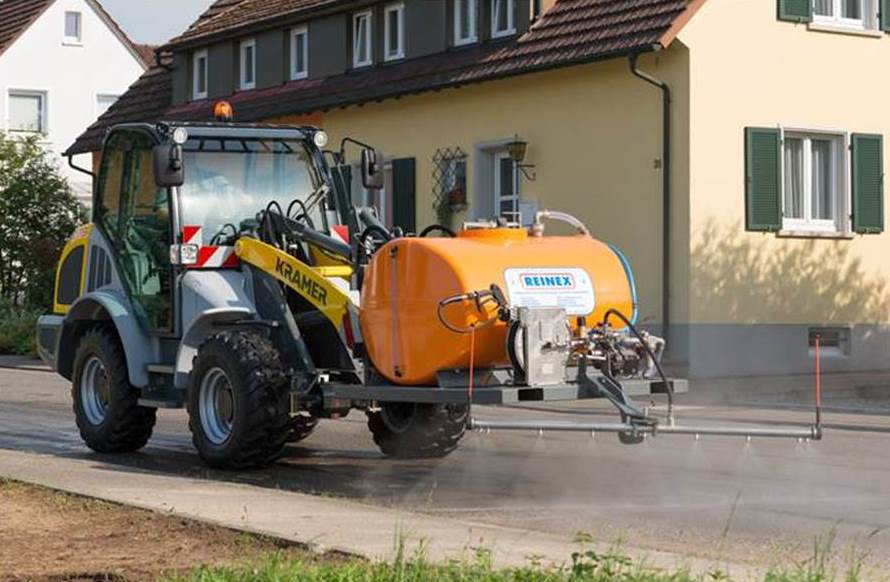

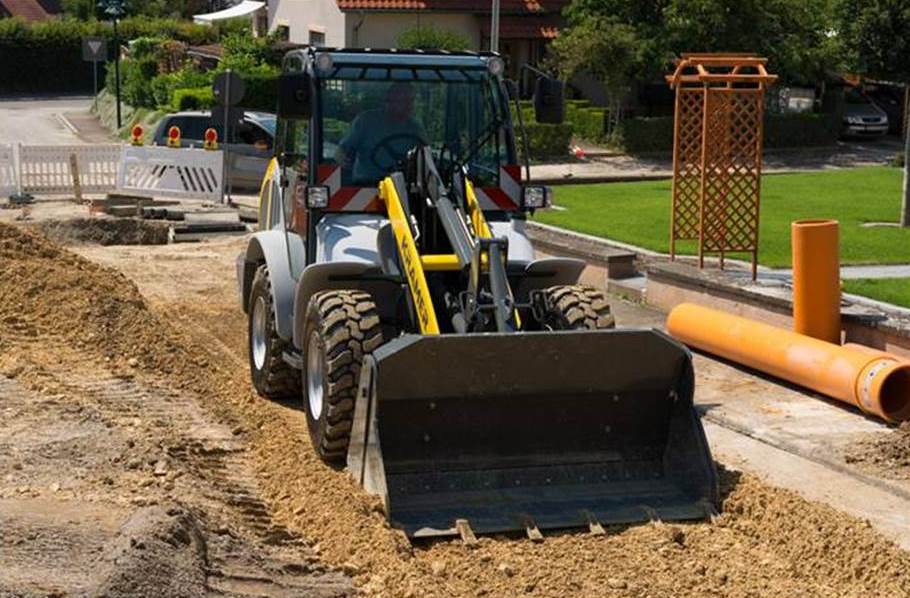

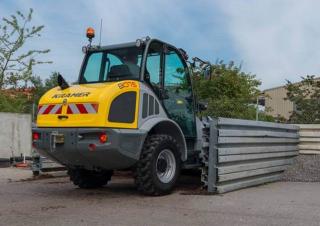

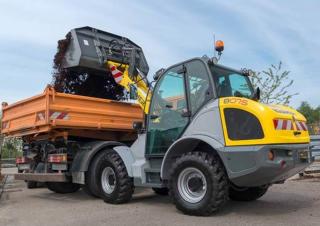

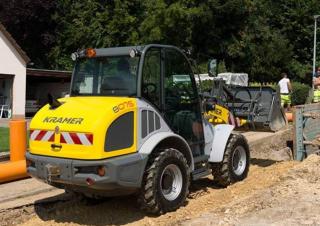

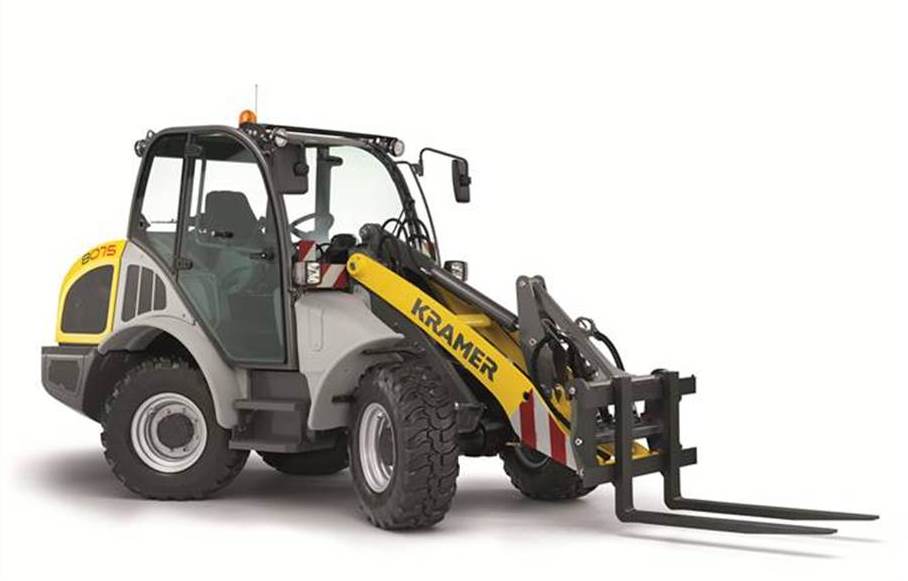

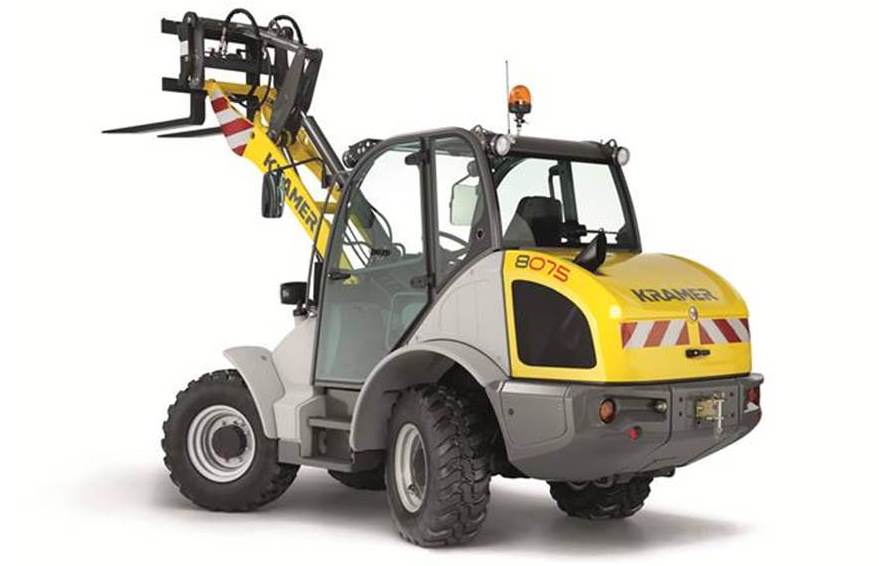

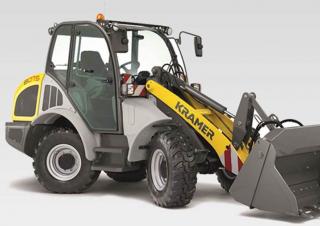

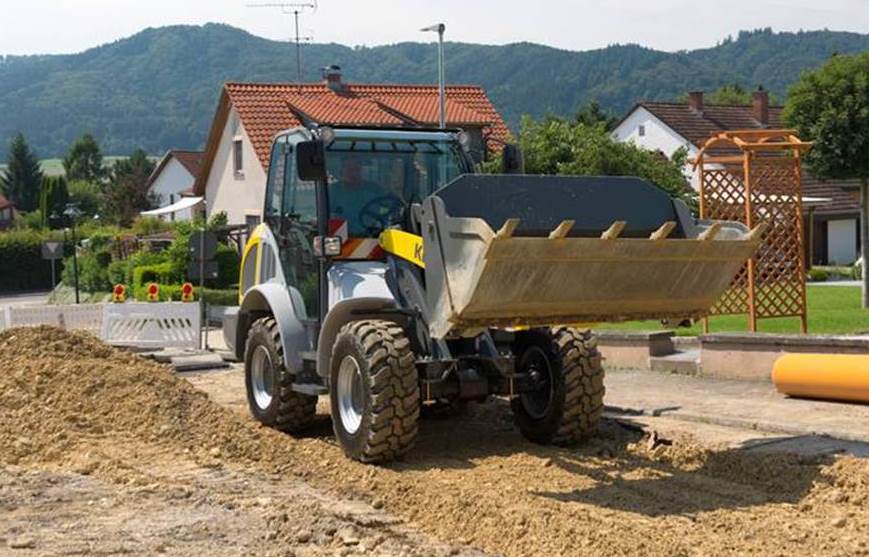

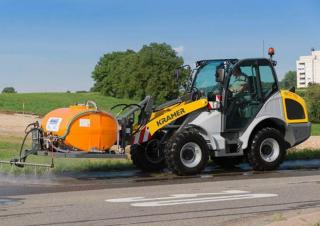

The Kramer 8075 is a wheel loader manufactured from 2014 to 2019. It has a weight of 4.3 tons and a transport length of 5.08 meter…

The Kramer 8075 is a wheel loader manufactured from 2014 to 2019. It has a weight of 4.3 tons and a transport length of 5.08 meters. The bucket capacity is 0.75 cubic meters, with a bucket width of 1.75 meters. The maximum discharge height is 2.4 meters, and it has a travel speed of 20 km/h. The transport width is 1.75 meters, and the transport height is 2.45 meters. The turning radius outside is 2.84 meters, and it is equipped with a quick hitch hydraulic mechanism.

8075

Years of manufacture: 2014—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 8075 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.3 t

Standard tyres: 12.5-18

Bucket width: 1.75 m

Bucket capacity: 0.75 m³

Bucket capacity min.: 0.75 m³

Steering mode: AL

Transport length: 5.08 m

Transport width: 1.75 m

Transport height: 2.45 m

Travel speed: 20 km/h

Max. discharge height: 2.4 m

Turning radius outside: 2.84 m

Engine manuf.: Yanmar

Engine type: 4TNV88

Engine power: 34.8 kW

Displacement: 2.19 l

Emission level: III A

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Kramer 8075 FAQ

When was the Kramer 8075 wheel loader manufactured?

The Kramer 8075 wheel loader was manufactured from 2014 to 2019.

How much does the Kramer 8075 wheel loader weigh?

The Kramer 8075 wheel loader weighs 4.3 tons.

What are the transport dimensions of the Kramer 8075 wheel loader?

The Kramer 8075 has a transport length of 5.08 meters, a transport width of 1.75 meters, and a transport height of 2.45 meters.

What is the travel speed of the Kramer 8075 wheel loader?

The Kramer 8075 wheel loader has a travel speed of 20 km/h.

What is the standard tyre size of the Kramer 8075 wheel loader?

The Kramer 8075 wheel loader has standard tyres sized 12.5-18.

What are the maneuverability specifications of the Kramer 8075 wheel loader?

The Kramer 8075 wheel loader has an outside turning radius of 2.84 meters and features all-wheel steering.

What is the maximum discharge height of the Kramer 8075?

The Kramer 8075 has a maximum discharge height of 2.4 meters.

What are the bucket specifications of the Kramer 8075 wheel loader?

The Kramer 8075 wheel loader has a bucket capacity of 0.75 cubic meters, a minimum bucket capacity of 0.75 cubic meters, and a bucket width of 1.75 meters.

How much is a Kramer 8075 Wheel loader (2014u20132019) worth?

The residual value of the Kramer 8075 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kramer 8075 overview

Operator's cab

The elite among wheel loaders

The wheel loaders of the 80-series by Kramer set high standards in terms of technology, performance and comfort. Other plus points are versatility in use, optimal power to weight ratio and exceptional performance statistics.One-piece frame and all-wheel steeringHydraulic quick coupler system and parallel-controlled loading systemParticularly spacious panoramic cab with the highest level of operator comfortEfficient drive and low operating costsVariety of options for a large range of uses
