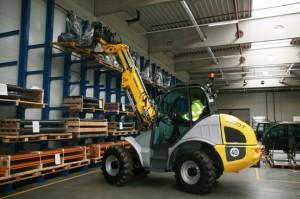

680 T Kramer 680 T Specifications & Technical Data (2010—2014)

The Kramer 680 T is a wheel loader manufactured from 2010 to 2014. It has a weight of 5.95 tons and a transport length of 6.04 met…

The Kramer 680 T is a wheel loader manufactured from 2010 to 2014. It has a weight of 5.95 tons and a transport length of 6.04 meters. The bucket capacity is 0.95 cubic meters, with a bucket width of 2.05 meters. The maximum discharge height is 4 meters, and it has a travel speed of 20 km/h. The transport width is 1.92 meters, and the transport height is 2.75 meters. It has a lifting force of 31 kN and a turning radius outside of 2.85 meters. Special equipment includes a quick hitch mechanism and telescopic capabilities.

680 T

Years of manufacture: 2010—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 680 T Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.95 t

Standard tyres: 14.5-20

Bucket width: 2.05 m

Bucket capacity: 0.95 m³

Bucket capacity min.: 0.95 m³

Steering mode: AL

Transport length: 6.04 m

Transport width: 1.92 m

Transport height: 2.75 m

Travel speed: 20 km/h

Max. discharge height: 4 m

Turning radius outside: 2.85 m

Lifting force: 31 kN

Engine manuf.: Deutz

Engine type: TD2011 L04w

Engine power: 58 kW

Displacement: 3.619 l

Revolutions at max torque: 1600 rpm

More technical details, like: bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Kramer 680 T FAQ

When was the Kramer 680 T manufactured?

The Kramer 680 T was manufactured from 2010 to 2014.

How much does the Kramer 680 T wheel loader weigh?

The Kramer 680 T wheel loader weighs 5.95 tons.

What are the transport dimensions of the Kramer 680 T wheel loader?

The Kramer 680 T has a transport length of 6.04 meters, a transport width of 1.92 meters, and a transport height of 2.75 meters.

What is the travel speed of the Kramer 680 T wheel loader?

The Kramer 680 T has a travel speed of 20 km/h.

What are the undercarriage specifications of the Kramer 680 T wheel loader?

The Kramer 680 T wheel loader is equipped with standard tyres sized 14.5-20.

What are the maneuverability specifications of the Kramer 680 T wheel loader?

The Kramer 680 T has an outside turning radius of 2.85 meters and features all-wheel steering.

What is the lifting force of the Kramer 680 T wheel loader?

The Kramer 680 T wheel loader has a lifting force of 31 kN.

What is the material handling capacity of the Kramer 680 T in terms of discharge height?

The Kramer 680 T has a maximum discharge height of 4 meters.

What are the bucket specifications of the Kramer 680 T wheel loader?

The Kramer 680 T has a bucket capacity of 0.95 cubic meters, a minimum bucket capacity of 0.95 cubic meters, and a bucket width of 2.05 meters.
