650 Kramer 650 Specifications & Technical Data (2012—2014)

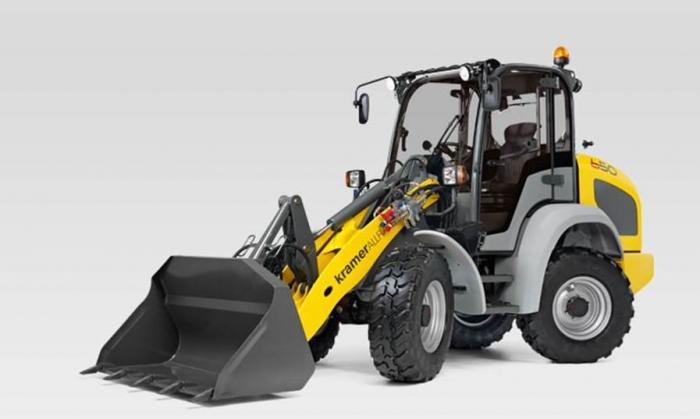

The Kramer 650 Wheel Loader, manufactured from 2012 to 2014, weighs 3.8 tons and has a transport length of 4.955 meters. It is equ…

The Kramer 650 Wheel Loader, manufactured from 2012 to 2014, weighs 3.8 tons and has a transport length of 4.955 meters. It is equipped with a 0.65 cubic meter bucket with a width of 1.65 meters. The maximum discharge height is 2.33 meters, and it can travel at a speed of 30 km/h. The transport width is 1.595 meters, and the transport height is 2.39 meters. With a lifting force of 32.5 kN, it has a turning radius outside of 2.7 meters. The bucket capacity remains constant at 0.65 cubic meters.

650

Years of manufacture: 2012—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 650 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.8 t

Standard tyres: 12.0-18

Bucket width: 1.65 m

Bucket capacity: 0.65 m³

Bucket capacity min.: 0.65 m³

Steering mode: AL

Transport length: 4.955 m

Transport width: 1.595 m

Transport height: 2.39 m

Travel speed: 30 km/h

Max. discharge height: 2.33 m

Turning radius outside: 2.7 m

Lifting force: 32.5 kN

Engine manuf.: Yanmar

Engine type: 4TNV88

Engine power: 35 kW

Emission level: Tier 3 a

More technical details, like: bucket capacity max., model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Kramer 650 FAQ

When was the Kramer 650 manufactured?

The Kramer 650 was manufactured from 2012 to 2014.

How much does the Kramer 650 wheel loader weigh?

The Kramer 650 wheel loader weighs 3.8 tons.

What are the transport dimensions of the Kramer 650 wheel loader?

The Kramer 650 has a transport length of 4.96 meters, a transport width of 1.6 meters, and a transport height of 2.39 meters.

What is the travel speed of the Kramer 650 wheel loader?

The Kramer 650 wheel loader has a travel speed of 30 km/h.

What is the standard tyre size of the Kramer 650 wheel loader?

The Kramer 650 wheel loader has standard tyres sized 12.0-18.

What are the maneuverability specifications of the Kramer 650 wheel loader?

The Kramer 650 wheel loader has an outside turning radius of 2.7 meters and features all-wheel steering.

What is the lifting force of the Kramer 650 wheel loader?

The Kramer 650 wheel loader has a lifting force of 32.5 kN.

What is the maximum discharge height of the Kramer 650?

The Kramer 650 has a maximum discharge height of 2.33 meters.

What are the bucket specifications of the Kramer 650 wheel loader?

The Kramer 650 wheel loader has a bucket capacity of 0.65 cubic meters and a bucket width of 1.65 meters.
