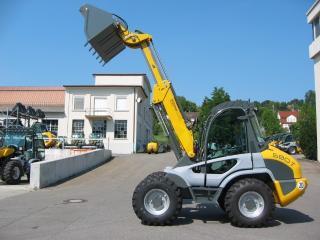

580 T Kramer 580 T Specifications & Technical Data (2003—2009)

The Kramer 580 T is a wheel loader manufactured by Kramer from 2003 to 2009. It has a weight of 5.5 tons and a transport length of…

The Kramer 580 T is a wheel loader manufactured by Kramer from 2003 to 2009. It has a weight of 5.5 tons and a transport length of 5.7 meters. The bucket capacity is 1.6 cubic meters with a width of 1.95 meters. The maximum discharge height is 4.02 meters. It has a travel speed of 20 km/h and a transport width of 1.86 meters. The transport height is 2.82 meters. The lifting force is 30 kN. The turning radius outside is 2.78 meters. It is equipped with a quick hitch mechanism and telescopic capabilities.

580 T

Years of manufacture: 2003—2009

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 580 T Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.5 t

Standard tyres: 14.5-20

Bucket width: 1.95 m

Bucket capacity: 1.6 m³

Bucket capacity min.: 1.6 m³

Steering mode: AL

Transport length: 5.7 m

Transport width: 1.86 m

Transport height: 2.82 m

Travel speed: 20 km/h

Max. discharge height: 4.02 m

Turning radius outside: 2.78 m

Lifting force: 30 kN

Engine manuf.: Deutz

Engine type: BF4M2011

Engine power: 51.5 kW

Displacement: 3.11 l

Revolutions at max torque: 1950 rpm

More technical details, like: bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

580 T Kramer Specification for Europe (DE)

Kramer 580 T FAQ

When was the Kramer 580 T manufactured?

The Kramer 580 T was manufactured from 2003 to 2009.

How much does the Kramer 580 T wheel loader weigh?

The Kramer 580 T wheel loader weighs 5.5 tons.

What are the transport dimensions of the Kramer 580 T wheel loader?

The Kramer 580 T has a transport length of 5.7 meters, a transport width of 1.86 meters, and a transport height of 2.82 meters.

What is the travel speed of the Kramer 580 T wheel loader?

The Kramer 580 T has a travel speed of 20 km/h.

What are the standard tyre specifications of the Kramer 580 T wheel loader?

The Kramer 580 T wheel loader is equipped with standard tyres sized 14.5-20.

What are the maneuverability specifications of the Kramer 580 T wheel loader?

The Kramer 580 T has an outside turning radius of 2.78 meters and features all-wheel steering.

What is the power rating of the Kramer 580 T wheel loader?

The source data does not provide a power rating for the Kramer 580 T wheel loader; it only specifies a lifting force of 30 kN.

What is the maximum discharge height of the Kramer 580 T?

The Kramer 580 T has a maximum discharge height of 4.02 meters.

What are the specifications of the bucket on the Kramer 580 T wheel loader?

The Kramer 580 T wheel loader has a bucket capacity of 1.6 cubic meters, a minimum bucket capacity of 1.6 cubic meters, and a bucket width of 1.95 meters.
