5095 Kramer 5095 Specifications & Technical Data (2015—2019)

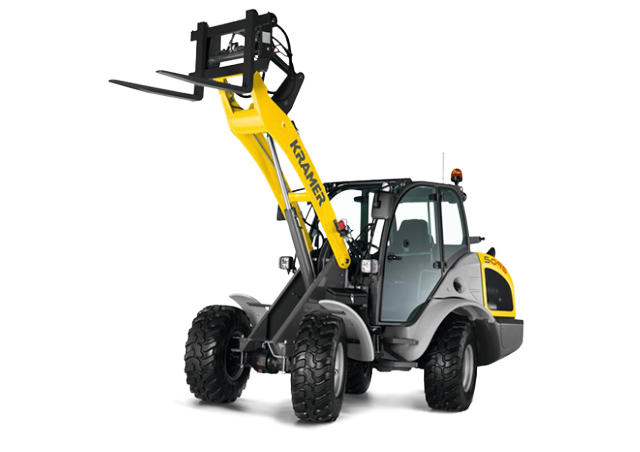

The Kramer 5095 is a wheel loader manufactured from 2015 to 2019. It has a weight of 4.8 tons and a transport length of 5.41 meter…

The Kramer 5095 is a wheel loader manufactured from 2015 to 2019. It has a weight of 4.8 tons and a transport length of 5.41 meters. The bucket capacity ranges from 0.7 to 0.9 cubic meters, with a bucket width of 2.05 meters. The maximum discharge height is 2.58 meters. It has a travel speed of 20 km/h and a transport width of 1.78 meters. The transport height is 2.48 meters. Special equipment includes a quick hitch hydraulic mechanism.

5095

Years of manufacture: 2015—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 5095 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.8 t

Standard tyres: 12.5-20

Bucket width: 2.05 m

Bucket capacity: 0.7 m³

Bucket capacity min.: 0.7 m³

Bucket capacity max.: 0.9 m³

Steering mode: AL

Transport length: 5.41 m

Transport width: 1.78 m

Transport height: 2.48 m

Travel speed: 20 km/h

Max. discharge height: 2.58 m

Engine manuf.: Kohler

Engine type: KDI2504TCR

Engine power: 55.4 kW

Dimension lxwxh: 704.3x523.2x719.5 mm

Displacement: 2.482 l

Max. torque: 300/1500 Nm

No. of cylinders: 4

Cylinder bore x stroke: 88x102 mm

Emission level: Tier 3 b

More technical details, like: turning radius outside, lifting force, model series, revolutions at max torque are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Kramer 5095 FAQ

When was the Kramer 5095 manufactured?

The Kramer 5095 was manufactured from 2015 to 2019.

How much does the Kramer 5095 wheel loader weigh?

The Kramer 5095 wheel loader weighs 4.8 tons.

What are the transport dimensions of the Kramer 5095 wheel loader?

The Kramer 5095 has a transport length of 5.41 meters, a transport width of 1.78 meters, and a transport height of 2.48 meters.

What is the travel speed of the Kramer 5095 wheel loader?

The Kramer 5095 has a travel speed of 20 km/h.

What are the standard tyre specifications of the Kramer 5095 wheel loader?

The Kramer 5095 wheel loader is equipped with standard tyres sized 12.5-20.

What is the steering mode of the Kramer 5095?

The Kramer 5095 has all-wheel steering.

What is the material handling capacity of the Kramer 5095 in terms of discharge height?

The Kramer 5095 has a maximum discharge height of 2.58 meters.

What are the specifications of the bucket on the Kramer 5095 wheel loader?

The Kramer 5095 wheel loader's bucket has a capacity ranging from 0.7 to 0.9 cubic meters and a width of 2.05 meters.
