5025 Kramer 5025 Specifications & Technical Data (2015—2021)

Model rating
7,00 / 10

The Kramer 5025 is a wheel loader manufactured from 2015 to 2021. It has a weight of 1.56 tons and a transport length of 4.08 mete…

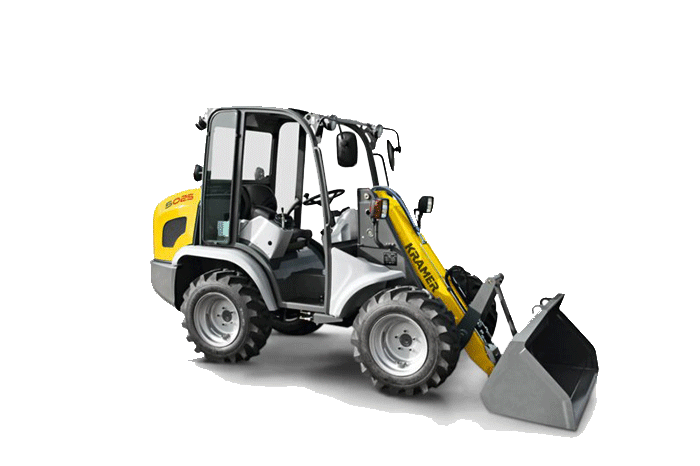

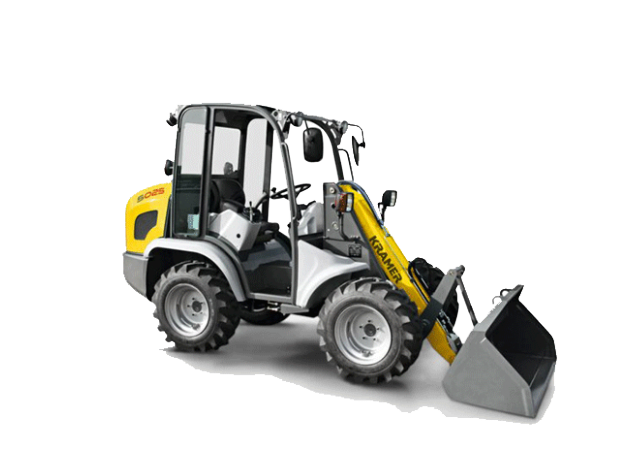

The Kramer 5025 is a wheel loader manufactured from 2015 to 2021. It has a weight of 1.56 tons and a transport length of 4.08 meters. The bucket capacity ranges from 0.25 to 0.65 cubic meters, with a bucket width of 1.25 meters. The maximum discharge height is 2.25 meters. It has a travel speed of 20 km/h and a transport width of 1.2 meters. The transport height is 1.99 meters, and the turning radius outside is 1.95 meters. Special equipment includes a quick hitch hydraulic mechanism.

Wheel Loaders Kramer 5025

Technical specs - 5025 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.56 t
Standard tyres
28x9.00-15
Bucket width
1.25 m
Bucket capacity
0.25 m³
Bucket capacity min.
0.25 m³
Bucket capacity max.
0.65 m³
Steering mode
AL
Transport length
4.08 m
Transport width
1.2 m
Transport height
1.99 m
Travel speed
20 km/h
Max. discharge height
2.25 m
Turning radius outside
1.95 m
Engine manuf.
Yanmar
Engine type
3TNV88
Engine power
23 kW
Displacement
1.642 l
Revolutions at max torque
107/11560 rpm
Emission level
III A

More technical details, like: lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Kramer 5025 FAQ

When was the Kramer 5025 manufactured?

The Kramer 5025 was manufactured from 2015 to 2021.

How much does the Kramer 5025 wheel loader weigh?

The Kramer 5025 wheel loader weighs 1.56 tons.

What are the transport dimensions of the Kramer 5025 wheel loader?

The Kramer 5025 has a transport length of 4.08 meters, a transport width of 1.2 meters, and a transport height of 1.99 meters.

What is the travel speed of the Kramer 5025 wheel loader?

The Kramer 5025 wheel loader has a travel speed of 20 km/h.

What are the standard tyre specifications of the Kramer 5025 wheel loader?

The Kramer 5025 wheel loader is equipped with standard tyres sized 28x9.00-15.

What are the maneuverability specifications of the Kramer 5025 wheel loader?

The Kramer 5025 wheel loader has an outside turning radius of 1.95 meters and features all-wheel steering.

What is the maximum discharge height of the Kramer 5025 wheel loader for material handling?

The Kramer 5025 wheel loader has a maximum discharge height of 2.25 meters.

What are the specifications of the bucket on the Kramer 5025 wheel loader?

The Kramer 5025 wheel loader has a bucket with a capacity ranging from 0.25 to 0.65 cubic meters and a width of 1.25 meters.

How much is a Kramer 5025 Wheel loader (2015u20132021) worth?

The residual value of the Kramer 5025 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kramer 5025 overview

Hydraulic system

The compact genius among wheel loaders

Compact and manoeuvrable wheel loaders for various applications. With an optimised power to weight ratio, low shipping weight and continuous high payload, the efficiency invoice with this model series is in favour of the end user.One-piece frame and all-wheel steeringHydraulic quick coupler system and parallel-controlled loading systemCanopy with perfect circumferential visibilityEfficient drive and low operating costsVersatility through third control circuit
