WA 50-3 Komatsu WA 50-3 Specifications & Technical Data (2001—2008)

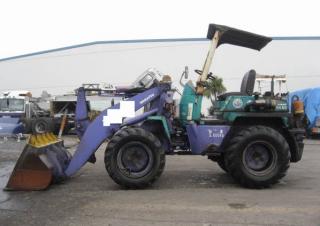

The Komatsu WA 50-3 is a wheel loader manufactured from 2001 to 2008. It has a weight of 3.72 tons and a transport length of 4.55 …

The Komatsu WA 50-3 is a wheel loader manufactured from 2001 to 2008. It has a weight of 3.72 tons and a transport length of 4.55 meters. The bucket capacity is 0.6 cubic meters with a width of 1.69 meters. It has a travel speed of 15 km/h and a transport width and height of 1.69 meters and 2.5 meters respectively. The turning radius outside is 3.61 meters.

Wheel Loaders Komatsu WA 50-3

Visit Komatsu live at

Technical specs - WA 50-3 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.72 t
Standard tyres
15.5/70-18-8 PR
Bucket width
1.69 m
Bucket capacity
0.6 m³
Steering mode
KL
Transport length
4.55 m
Transport width
1.69 m
Transport height
2.5 m
Travel speed
15 km/h
Turning radius outside
3.61 m
Model series
WA
Engine manuf.
Komatsu
Engine type
S3D84E-3B
Engine power
27.2 kW
Displacement
1.5 l
Revolutions at max torque
2500 rpm
No. of cylinders
3
Cylinder bore x stroke
84x90 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu WA 50-3 FAQ

When was the Komatsu WA 50-3 manufactured?

The Komatsu WA 50-3 was manufactured from 2001 to 2008.

How much does the Komatsu WA 50-3 weigh?

The Komatsu WA 50-3 weighs 3.72 tons.

What are the transport dimensions of the Komatsu WA 50-3 wheel loader?

The Komatsu WA 50-3 has a transport length of 4.55 meters, a transport width of 1.69 meters, and a transport height of 2.5 meters.

What is the travel speed of the Komatsu WA 50-3 wheel loader?

The Komatsu WA 50-3 has a travel speed of 15 km/h.

What are the undercarriage specifications of the Komatsu WA 50-3?

The Komatsu WA 50-3 is equipped with standard tyres sized 15.5/70-18-8 PR.

What are the maneuverability specifications of the Komatsu WA 50-3 wheel loader?

The Komatsu WA 50-3 has an articulated-frame steering system and an outside turning radius of 3.61 meters.

What are the bucket specifications of the Komatsu WA 50-3 wheel loader?

The Komatsu WA 50-3 wheel loader has a bucket capacity of 0.6 cubic meters and a bucket width of 1.69 meters.

How much is a Komatsu WA 50-3 Wheel loader (2001u20132008) worth?

The residual value of the Komatsu WA 50-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Komatsu WA 50-3 overview

Komatsu WA 50-3 features overview

Easy Maintenance

Komatsu wheel loaders feature maintenance-free wet-disc brakes and easy opening engine covers to keep your operators productive and efficient.


Superior Stability

A long wheelbase, wide tread and rear axle oscillation result in a comfortable and stable ride in load and carry applications.


Engine / Powertrain / Drivetrain

Hydrostatic Transmission

Speed and dynamic braking are controlled by a single pedal providing low effort machine operation. The forward/reverse lever is mounted within easy reach of the operator.


Operator's cab

Low Noise Operation

Sound suppression materials and air intake resonator are utilized in the engine area decreasing sound output which reduces operator stress and fatigue.


Ergonomically Designed Operator Compartment

Outstanding visibility is achieved by positioning the operator above, not behind the load. This seating position allows the operator excellent bucket visibility for easy load placement. Dual entry and exit as well as conventional controls for ground drive and loader operations reduce operator fatigue and increase productivity.
