80Z IV-2 Kawasaki 80Z IV-2 Specifications & Technical Data (2000—2010)

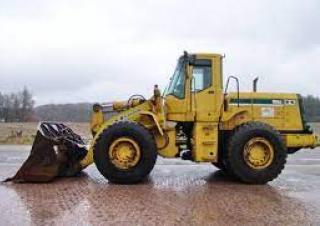

The Kawasaki 80Z IV-2 is a wheel loader manufactured between 2000 and 2010. It weighs 16 tons and has a bucket width of 2 meters. …

The Kawasaki 80Z IV-2 is a wheel loader manufactured between 2000 and 2010. It weighs 16 tons and has a bucket width of 2 meters. The maximum discharge height is 3 meters, and it can travel at a speed of 35 km/h. The transport width and height are both 2 meters and 3 meters respectively. The turning radius outside is 6 meters. The bucket capacity ranges from a minimum of 2 cubic meters to a maximum of 3 cubic meters.

Wheel Loaders Kawasaki 80Z IV-2

Technical specs - 80Z IV-2 Kawasaki

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.55 t
Standard tyres
23.5 x 25
Bucket width
2.8 m
Bucket capacity min.
2.3 m³
Bucket capacity max.
3.1 m³
Transport width
2.685 m
Transport height
3.375 m
Travel speed
35.5 km/h
Max. discharge height
3.405 m
Turning radius outside
6.62 m
Engine manuf.
Cummins
Engine type
C-8.3-C
Engine power
132.7 kW
Displacement
8.268 l
Revolutions at max torque
1500 rpm
Max. torque
557 Nm
No. of cylinders
6
Cylinder bore x stroke
114 x 135 mm

More technical details, like: bucket capacity, steering mode, transport length, lifting force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kawasaki 80Z IV-2 FAQ

When was the Kawasaki 80Z IV-2 manufactured?

The Kawasaki 80Z IV-2 was manufactured from 2000 to 2010.

How much does the Kawasaki 80Z IV-2 wheel loader weigh?

The Kawasaki 80Z IV-2 wheel loader weighs 16.55 tons.

What are the transport dimensions of the Kawasaki 80Z IV-2 wheel loader?

The Kawasaki 80Z IV-2 has a transport width of 2.69 meters and a transport height of 3.38 meters.

What is the travel speed of the Kawasaki 80Z IV-2 wheel loader?

The Kawasaki 80Z IV-2 has a travel speed of 35.5 km/h.

What are the undercarriage specifications of the Kawasaki 80Z IV-2 wheel loader?

The Kawasaki 80Z IV-2 wheel loader is equipped with standard tyres sized 23.5 x 25.

What is the turning radius of the Kawasaki 80Z IV-2 wheel loader?

The Kawasaki 80Z IV-2 has an outside turning radius of 6.62 meters.

What is the maximum discharge height of the Kawasaki 80Z IV-2 wheel loader?

The Kawasaki 80Z IV-2 wheel loader has a maximum discharge height of 3.41 meters.

What are the bucket specifications of the Kawasaki 80Z IV-2 wheel loader?

The Kawasaki 80Z IV-2 wheel loader has a bucket width of 2.8 meters, with a capacity ranging from 2.3 to 3.1 cubic meters.
