80Z 7 Kawasaki 80Z 7 Specifications & Technical Data (2012—2026)

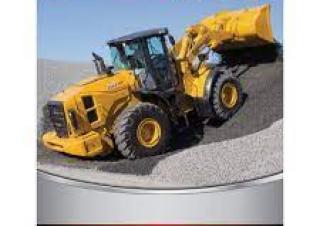

The Kawasaki 80Z 7 is a wheel loader manufactured since 2012. It has a weight of 20 tons and a bucket width of 3 meters. The maxim…

The Kawasaki 80Z 7 is a wheel loader manufactured since 2012. It has a weight of 20 tons and a bucket width of 3 meters. The maximum discharge height is 3 meters, and it can travel at a speed of 36 km/h. The transport width is 2 meters, and the transport height is 3 meters. The bucket capacity ranges from 2 to 4 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, and a telescopic mechanism.

80Z 7

Years of manufacture: 2012—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 80Z 7 Kawasaki

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 20.84 t

Standard tyres: 26.5 x 25

Bucket width: 3.1 m

Bucket capacity min.: 2.6 m³

Bucket capacity max.: 4 m³

Transport width: 2.98 m

Transport height: 3.46 m

Travel speed: 36.4 km/h

Max. discharge height: 3.56 m

Engine manuf.: Isuzu

Engine type: 6HK1

Engine power: 186 kW

Displacement: 7.79 l

Revolutions at max torque: 2000 rpm

No. of cylinders: 6

Cylinder bore x stroke: 115 x 125 mm

Emission level: Tier 4/EU Stage IIIB

More technical details, like: bucket capacity, steering mode, transport length, turning radius outside, lifting force, model series, dimension lxwxh, max. torque are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: Yes
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Kawasaki 80Z 7 FAQ

When was the Kawasaki 80Z 7 manufactured?

The Kawasaki 80Z 7 was first produced in 2012.

How much does the Kawasaki 80Z 7 wheel loader weigh?

The Kawasaki 80Z 7 wheel loader weighs 20.84 tons.

What are the transport dimensions of the Kawasaki 80Z 7 wheel loader?

The Kawasaki 80Z 7 has a transport width of 2.98 meters and a transport height of 3.46 meters.

What is the travel speed of the Kawasaki 80Z 7 wheel loader?

The Kawasaki 80Z 7 has a travel speed of 36.4 km/h.

What is the standard tyre size of the Kawasaki 80Z 7 wheel loader?

The Kawasaki 80Z 7 wheel loader has standard tyres sized 26.5 x 25.

What is the maximum discharge height of the Kawasaki 80Z 7?

The Kawasaki 80Z 7 has a maximum discharge height of 3.56 meters.

What are the specifications of the bucket on the Kawasaki 80Z 7 wheel loader?

The Kawasaki 80Z 7 wheel loader's bucket has a maximum capacity of 4 cubic meters, a minimum capacity of 2.6 cubic meters, and a width of 3.1 meters.

How much is a Kawasaki 80Z 7 Wheel loader (2012u20132025) worth?

The residual value of the Kawasaki 80Z 7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
