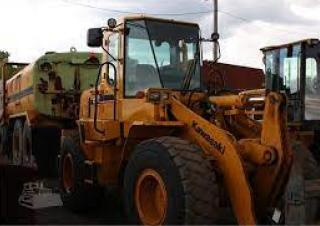

65Z IV-2 Kawasaki 65Z IV-2 Specifications & Technical Data (2000—2010)

The Kawasaki 65Z IV-2 is a wheel loader manufactured by Kawasaki from 2000 to 2010. It has a weight of 10 tons and a bucket width …

The Kawasaki 65Z IV-2 is a wheel loader manufactured by Kawasaki from 2000 to 2010. It has a weight of 10 tons and a bucket width of 2 meters. The maximum discharge height is 2 meters and it can travel at a speed of 37 km/h. The transport width is 2 meters and the transport height is 3 meters. It has a turning radius outside of 5 meters. The maximum bucket capacity is 2 cubic meters, while the minimum bucket capacity is 1 cubic meter.

65Z IV-2

Years of manufacture: 2000—2010

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 65Z IV-2 Kawasaki

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.42 t

Standard tyres: 17.5 x 25

Bucket width: 2.45 m

Bucket capacity min.: 1.6 m³

Bucket capacity max.: 2 m³

Transport width: 2.375 m

Transport height: 3.2 m

Travel speed: 37 km/h

Max. discharge height: 2.695 m

Turning radius outside: 5.745 m

Engine manuf.: Cummins

Engine type: B5.9-C

Engine power: 99.9 kW

Displacement: 5.883 l

Revolutions at max torque: 1400 rpm

Max. torque: 383 Nm

No. of cylinders: 6

Cylinder bore x stroke: 102 x 120 mm

More technical details, like: bucket capacity, steering mode, transport length, lifting force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

65Z IV-2 Kawasaki Specification for North America (EN)

Kawasaki 65Z IV-2 FAQ

When was the Kawasaki 65Z IV-2 manufactured?

The Kawasaki 65Z IV-2 was manufactured from 2000 to 2010.

How much does the Kawasaki 65Z IV-2 weigh?

The Kawasaki 65Z IV-2 weighs 10.42 tons.

What are the transport dimensions of the Kawasaki 65Z IV-2 wheel loader?

The Kawasaki 65Z IV-2 has a transport width of 2.38 meters and a transport height of 3.2 meters.

What is the travel speed of the Kawasaki 65Z IV-2 wheel loader?

The Kawasaki 65Z IV-2 has a travel speed of 37 km/h.

What is the standard tyre size of the Kawasaki 65Z IV-2 wheel loader?

The Kawasaki 65Z IV-2 wheel loader has standard tyres sized 17.5 x 25.

What is the turning radius of the Kawasaki 65Z IV-2 wheel loader?

The Kawasaki 65Z IV-2 has an outside turning radius of 5.745 meters.

What is the maximum discharge height of the Kawasaki 65Z IV-2 wheel loader?

The Kawasaki 65Z IV-2 wheel loader has a maximum discharge height of 2.7 meters.

What are the specifications of the bucket on the Kawasaki 65Z IV-2 wheel loader?

The Kawasaki 65Z IV-2 wheel loader has a bucket with a maximum capacity of 2 cubic meters, a minimum capacity of 1.6 cubic meters, and a width of 2.45 meters.
