824 P John Deere Construction 824 P Specifications & Technical Data (2022—2026)

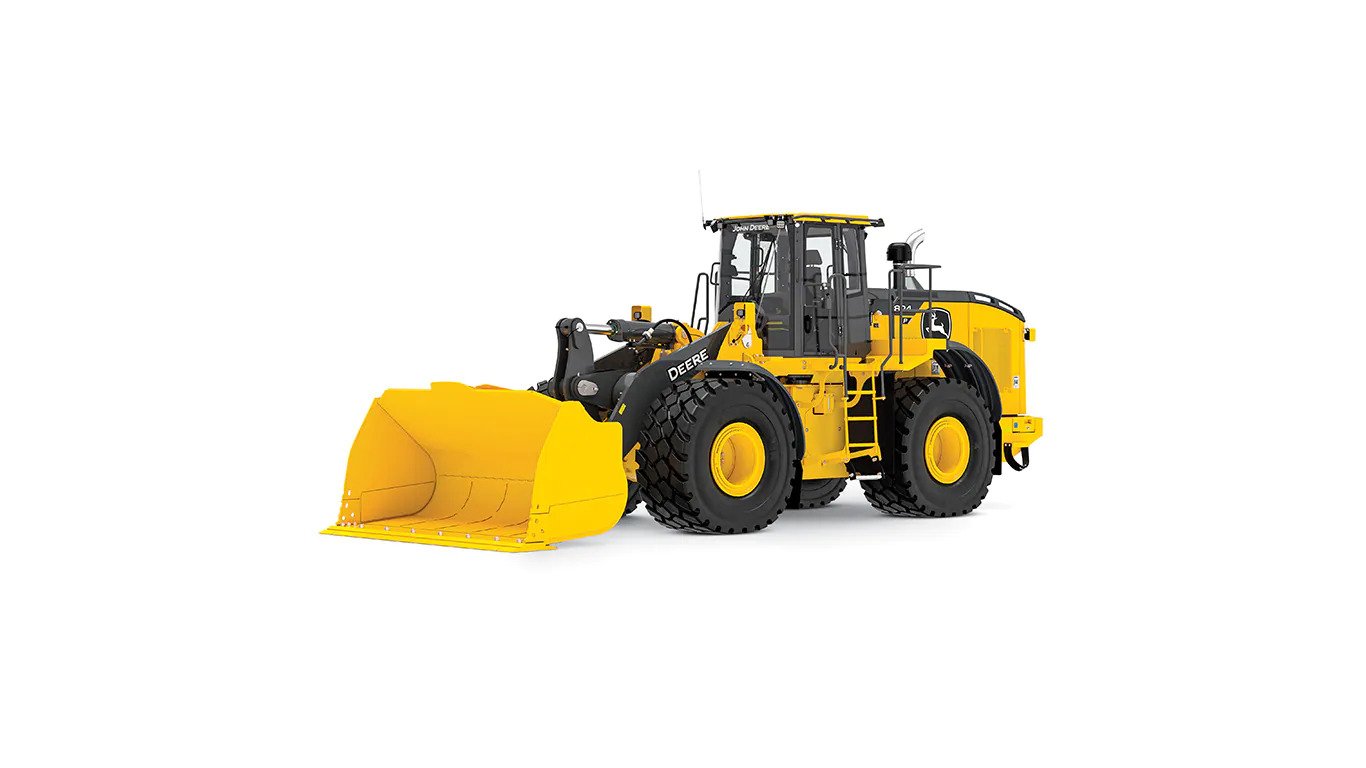

The John Deere Construction 824 P is a wheel loader manufactured since 2022. It has a weight of 28.101 tons and a transport length…

The John Deere Construction 824 P is a wheel loader manufactured since 2022. It has a weight of 28.101 tons and a transport length of 9.99 meters. The bucket width is 3.31 meters and the maximum discharge height is 4.85 meters. It has a travel speed of 40 km/h and a transport width and height of 3.31 and 3.57 meters, respectively. The turning radius outside is 5.92 meters. The bucket capacity ranges from 3.8 to 5.2 cubic meters. Special equipment includes air conditioning and a diesel particulate filter.

824 P

Years of manufacture: 2022—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 824 P John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 28.101 t

Standard tyres: 26.5 R25

Bucket width: 3.31 m

Bucket capacity min.: 3.8 m³

Bucket capacity max.: 5.2 m³

Transport length: 9.99 m

Transport width: 3.31 m

Transport height: 3.57 m

Travel speed: 40 km/h

Max. discharge height: 4.85 m

Turning radius outside: 5.92 m

Model series: P

Engine manuf.: John Deere

Engine type: PowerTech PSS 6090

Engine power: 256 kW

Displacement: 9 l

Revolutions at max torque: 1600 rpm

Max. torque: 1627 Nm

No. of cylinders: 6

Emission level: EPA Tier 4 / EU Stage V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

John Deere Construction 824 P FAQ

When was the John Deere Construction 824 P manufactured?

The John Deere Construction 824 P was first produced in 2022.

How much does the John Deere Construction 824 P wheel loader weigh?

The John Deere Construction 824 P wheel loader weighs 28.1 tons.

What are the transport dimensions of the John Deere Construction 824 P wheel loader?

The John Deere Construction 824 P has a transport length of 9.99 meters, a transport width of 3.31 meters, and a transport height of 3.57 meters.

What is the travel speed of the John Deere Construction 824 P wheel loader?

The John Deere Construction 824 P has a travel speed of 40 km/h.

What is the standard tyre size of the John Deere Construction 824 P wheel loader?

The John Deere Construction 824 P wheel loader has standard tyres sized 26.5 R25.

What is the turning radius of the John Deere Construction 824 P wheel loader?

The John Deere Construction 824 P has an outside turning radius of 5.92 meters.

What is the maximum discharge height of the John Deere Construction 824 P?

The John Deere Construction 824 P has a maximum discharge height of 4.85 meters.

What are the bucket specifications of the John Deere Construction 824 P wheel loader?

The John Deere Construction 824 P wheel loader has a bucket width of 3.31 meters, with a capacity ranging from 3.8 to 5.2 cubic meters.
