744K-II John Deere Construction 744K-II Specifications & Technical Data (2015—2019)

The John Deere Construction 744K-II is a wheel loader manufactured from 2015 to 2019. It has a weight of 25.31 tons and a transpor…

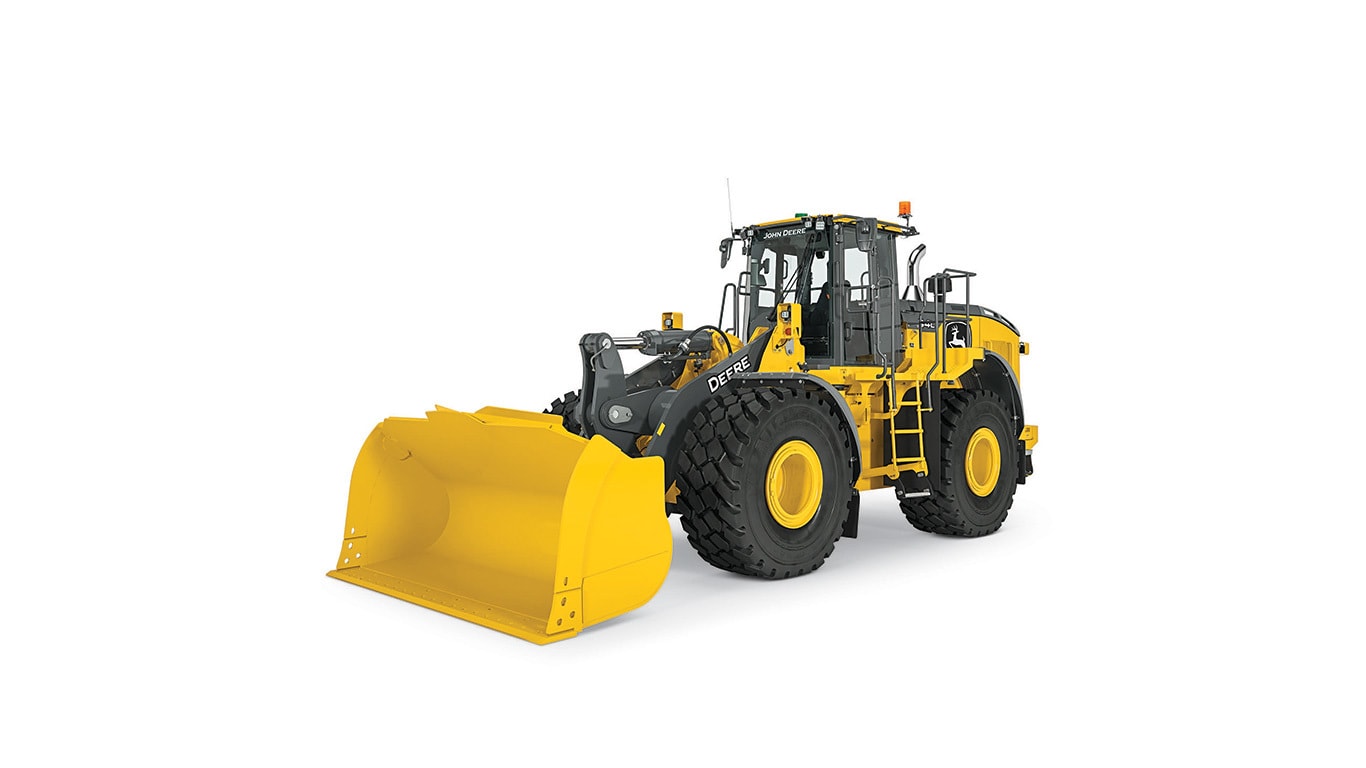

The John Deere Construction 744K-II is a wheel loader manufactured from 2015 to 2019. It has a weight of 25.31 tons and a transport length of 9.02 meters. The bucket width is 3.27 meters and the maximum discharge height is 2.97 meters. It has a travel speed of 40 km/h and a transport width of 3.08 meters. The transport height is 3.5 meters, and the turning radius outside is 5.92 meters. The bucket capacity ranges from 3.4 to 4 cubic meters. Special equipment includes air conditioning.

744K-II

Years of manufacture: 2015—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 744K-II John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 25.31 t

Standard tyres: 26.5 R25

Bucket width: 3.27 m

Bucket capacity min.: 4 m³

Bucket capacity max.: 3.4 m³

Steering mode: AL

Transport length: 9.02 m

Transport width: 3.08 m

Transport height: 3.5 m

Travel speed: 40 km/h

Max. discharge height: 2.97 m

Turning radius outside: 5.92 m

Model series: K

Engine manuf.: John Deere

Engine type: PowerTech Plus 6090H

Engine power: 227 kW

Displacement: 9 l

Revolutions at max torque: 1500 rpm

Max. torque: 1456/1400 Nm

No. of cylinders: 6

Emission level: Tier 3/EU IIIA

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

John Deere Construction 744K-II FAQ

When was the John Deere Construction 744K-II manufactured?

The John Deere Construction 744K-II was manufactured from 2015 to 2019.

How much does the John Deere Construction 744K-II wheel loader weigh?

The John Deere Construction 744K-II wheel loader weighs 25.31 tons.

What are the transport dimensions of the John Deere Construction 744K-II wheel loader?

The John Deere Construction 744K-II has a transport length of 9.02 meters, a transport width of 3.08 meters, and a transport height of 3.5 meters.

What is the travel speed of the John Deere Construction 744K-II wheel loader?

The John Deere Construction 744K-II has a travel speed of 40 km/h.

What is the size of the standard tyres on the John Deere Construction 744K-II?

The John Deere Construction 744K-II comes equipped with standard tyres sized 26.5 R25.

What are the maneuverability specifications of the John Deere Construction 744K-II wheel loader?

The John Deere Construction 744K-II has an outside turning radius of 5.92 meters and features all-wheel steering.

What is the material handling capacity of the John Deere Construction 744K-II in terms of discharge height?

The John Deere Construction 744K-II has a maximum discharge height of 2.97 meters.

What are the bucket specifications of the John Deere Construction 744K-II wheel loader?

The John Deere Construction 744K-II wheel loader has a bucket width of 3.27 meters, a minimum bucket capacity of 4 cubic meters, and a maximum bucket capacity of 3.4 cubic meters.
