724K John Deere Construction 724K Specifications & Technical Data (2013—2019)

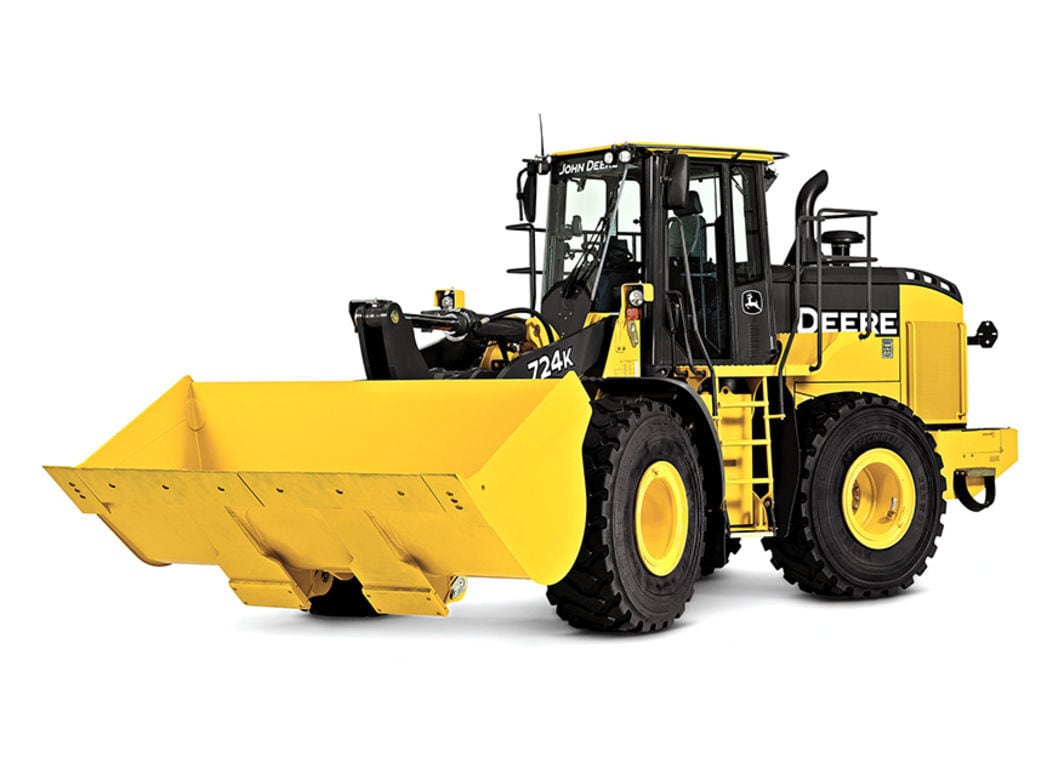

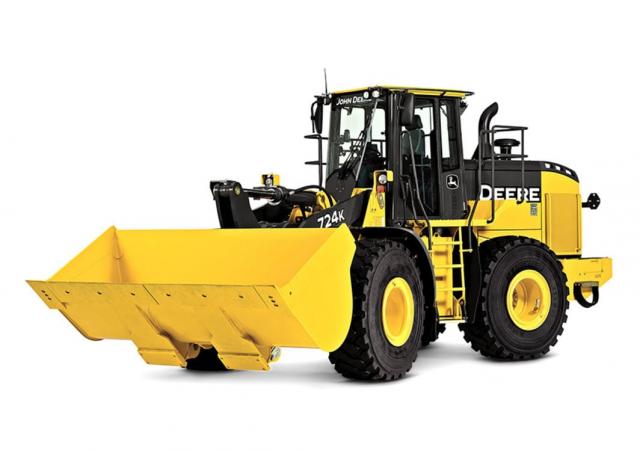

The John Deere Construction 724K is a wheel loader manufactured from 2013 to 2019. It has a weight of 19.42 tons and a transport l…

The John Deere Construction 724K is a wheel loader manufactured from 2013 to 2019. It has a weight of 19.42 tons and a transport length of 8.2 meters. The bucket width is 3.04 meters, and it has a maximum discharge height of 2.91 meters. The travel speed of this machine is 35.6 km/h. It has a transport width of 2.88 meters and a transport height of 3.43 meters. The turning radius outside is 5.64 meters. The bucket capacity ranges from a maximum of 3.2 cubic meters to a minimum of 3 cubic meters. It is equipped with air conditioning.

724K

Years of manufacture: 2013—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 724K John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.42 t

Standard tyres: 23.5 R25

Bucket width: 3.04 m

Bucket capacity min.: 3 m³

Bucket capacity max.: 3.2 m³

Steering mode: AL

Transport length: 8.2 m

Transport width: 2.88 m

Transport height: 3.43 m

Travel speed: 35.6 km/h

Max. discharge height: 2.91 m

Turning radius outside: 5.64 m

Model series: K

Engine manuf.: John Deere

Engine type: Powertech 6090H

Engine power: 197 kW

Displacement: 9 l

Revolutions at max torque: 1800 rpm

Max. torque: 1159/1300 Nm

No. of cylinders: 6

Emission level: Tier 2/EU II

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

John Deere Construction 724K FAQ

When was the John Deere Construction 724K manufactured?

The John Deere Construction 724K was manufactured from 2013 to 2019.

How much does the John Deere Construction 724K wheel loader weigh?

The John Deere Construction 724K wheel loader weighs 19.42 tons.

What are the transport dimensions of the John Deere Construction 724K wheel loader?

The John Deere Construction 724K has a transport length of 8.2 meters, a transport width of 2.88 meters, and a transport height of 3.43 meters.

What is the travel speed of the John Deere Construction 724K wheel loader?

The John Deere Construction 724K has a travel speed of 35.6 km/h.

What are the undercarriage specifications of the John Deere Construction 724K wheel loader?

The John Deere Construction 724K wheel loader is equipped with standard tyres sized 23.5 R25.

What are the maneuverability specifications of the John Deere Construction 724K wheel loader?

The John Deere Construction 724K features all-wheel steering and has an outside turning radius of 5.64 meters.

What is the material handling capacity of the John Deere Construction 724K in terms of discharge height?

The John Deere Construction 724K has a maximum discharge height of 2.91 meters.

What are the bucket specifications of the John Deere Construction 724K wheel loader?

The John Deere Construction 724K wheel loader has a bucket capacity ranging from 3 to 3.2 cubic meters and a bucket width of 3.04 meters.

How much is a John Deere Construction 724K Wheel loader (2013u20132019) worth?

The residual value of the John Deere Construction 724K depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
