184 John Deere Construction 184 Specifications & Technical Data (2023—2026)

Weight: 4.84t – Standard tyres: 365/70R18 – Bucket capacity: 1.1m³ – Bucket capacity min.: 0.7m³ – Bucket capacity max.: 1.1m³ – Transport length: 6.35m

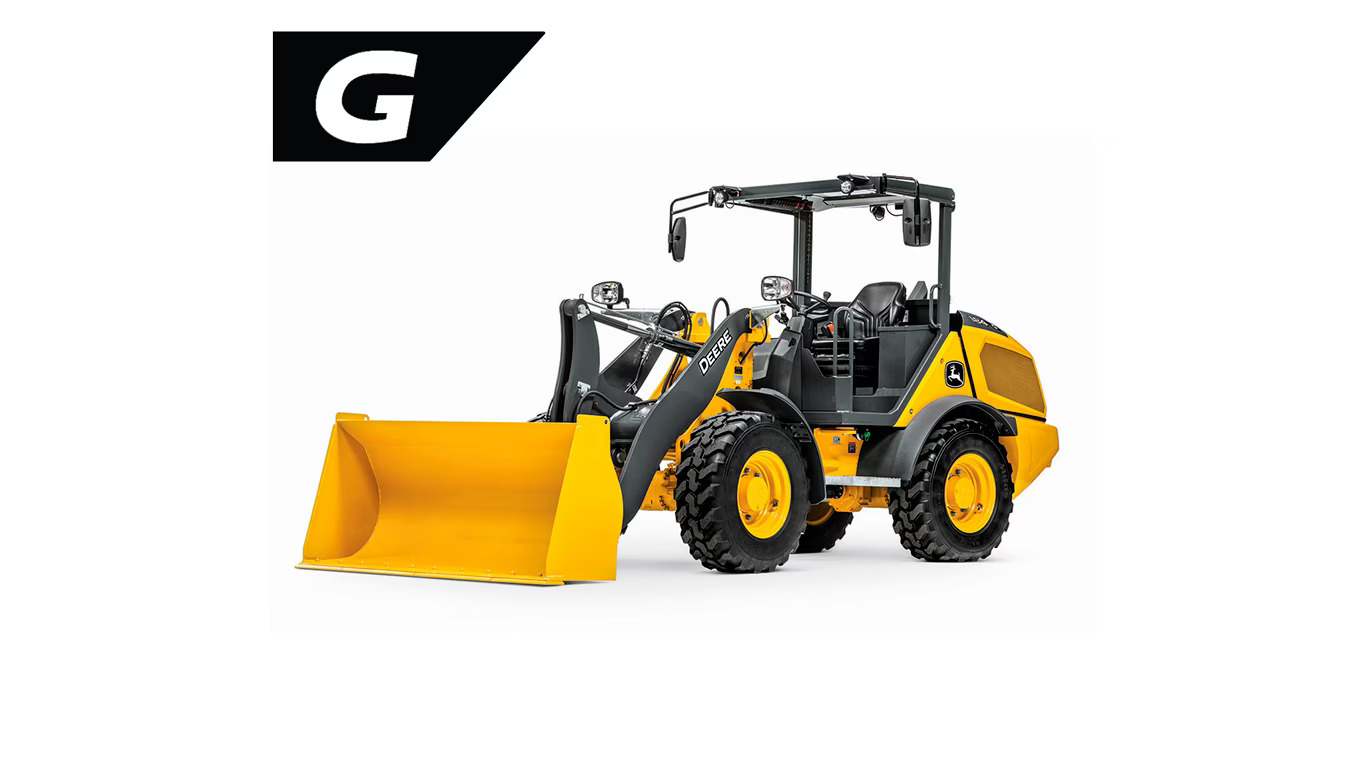

Wheel Loaders John Deere Construction 184

Technical specs - 184 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.84 t
Standard tyres
365/70R18
Bucket capacity
1.1 m³
Bucket capacity min.
0.7 m³
Bucket capacity max.
1.1 m³
Transport length
6.35 m
Transport width
1.78 m
Transport height
2.43 m
Travel speed
20 km/h
Max. discharge height
3.16 m
Turning radius outside
4.457 m
Engine manuf.
Yanmar
Engine type
4TNV88C
Engine power
33 kW
Displacement
2.2 l
Revolutions at max torque
2200 rpm
Max. torque
146 Nm
Emission level
EPA Tier 4 / EU Stage V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 184 FAQ

When was the John Deere Construction 184 manufactured?

The John Deere Construction 184 was first produced in 2023.

How much does the John Deere Construction 184 wheel loader weigh?

The John Deere Construction 184 wheel loader weighs 4.84 tons.

What are the transport dimensions of the John Deere Construction 184 wheel loader?

The John Deere Construction 184 has a transport length of 6.35 meters, a transport width of 1.78 meters, and a transport height of 2.43 meters.

What is the travel speed of the John Deere Construction 184 wheel loader?

The John Deere Construction 184 wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the John Deere Construction 184 wheel loader?

The John Deere Construction 184 wheel loader is equipped with standard tyres sized 365/70R18.

What is the turning radius of the John Deere Construction 184 wheel loader?

The John Deere Construction 184 wheel loader has an outside turning radius of 4.457 meters.

What is the maximum discharge height of the John Deere Construction 184 wheel loader?

The John Deere Construction 184 wheel loader has a maximum discharge height of 3.16 meters.

What are the bucket capacity specifications of the John Deere Construction 184 wheel loader?

The John Deere Construction 184 wheel loader has a bucket capacity ranging from 0.7 to 1.1 cubic meters, with a maximum and standard capacity of 1.1 cubic meters.
