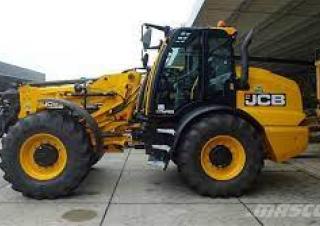

TM420 JCB TM420 Specifications & Technical Data (2018—2020)
Visit JCB live at
.jpg){kind=logo}
Technical specs - TM420 JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 9.53 t
- Standard tyres
- XMCL 480/80R26
- Bucket capacity
- 1.6 m³
- Steering mode
- KL
- Transport length
- 7.01 m
- Transport width
- 2.35 m
- Transport height
- 2.8 m
- Travel speed
- 40 km/h
- Max. discharge height
- 4.411 m
- Turning radius outside
- 5.68 m
- Lifting force
- 72 kN
- Model series
- TM
- Engine manuf.
- JCB
- Engine type
- EcoMax
- Engine power
- 108 kW
- Displacement
- 4.8 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 560 Nm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: bucket width, bucket capacity min., bucket capacity max., dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
Yes
- Swing loader
-
No
- telescopic
-
Yes
- Aircondition
-
Yes
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
