TM 180 JCB TM 180 Specifications & Technical Data (2016—2019)

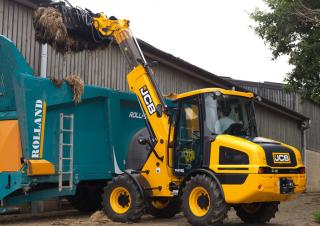

The JCB TM 180 is a telescopic wheel loader manufactured by JCB from 2016 to 2019. It has a weight of 5.98 tons and a transport le…

The JCB TM 180 is a telescopic wheel loader manufactured by JCB from 2016 to 2019. It has a weight of 5.98 tons and a transport length of 6 meters. The bucket capacity is 0.7 cubic meters with a width of 1.85 meters. The maximum discharge height is 3.57 meters. It has a travel speed of 20 km/h and a transport width of 1.75 meters. The transport height is 2.49 meters. The lifting force of this machine is 40.6 kN. It has a turning radius outside of 4.48 meters.

Wheel Loaders JCB TM 180

Visit JCB live at

Technical specs - TM 180 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.98 t
Standard tyres
365/70 R18 SPT9
Bucket width
1.85 m
Bucket capacity
0.7 m³
Steering mode
KL
Transport length
6 m
Transport width
1.75 m
Transport height
2.49 m
Travel speed
20 km/h
Max. discharge height
3.57 m
Turning radius outside
4.48 m
Lifting force
40.6 kN
Model series
TM
Engine manuf.
Kohler
Engine type
KDI2054TCR
Engine power
48 kW
Displacement
2.482 l
Revolutions at max torque
1500 rpm
Max. torque
300 Nm
No. of cylinders
4
Emission level
III B

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB TM 180 FAQ

When was the JCB TM 180 manufactured?

The JCB TM 180 was manufactured from 2016 to 2019.

How much does the JCB TM 180 wheel loader weigh?

The JCB TM 180 wheel loader weighs 5.98 tons.

What are the transport dimensions of the JCB TM 180 wheel loader?

The JCB TM 180 has a transport length of 6 meters, a transport width of 1.75 meters, and a transport height of 2.49 meters.

What is the travel speed of the JCB TM 180 wheel loader?

The JCB TM 180 has a travel speed of 20 km/h.

What are the undercarriage specifications of the JCB TM 180 wheel loader?

The JCB TM 180 wheel loader is equipped with standard tyres sized 365/70 R18 SPT9.

What are the maneuverability specifications of the JCB TM 180 wheel loader?

The JCB TM 180 wheel loader has an articulated-frame steering system and an outside turning radius of 4.48 meters.

What is the power rating of the JCB TM 180 wheel loader?

The source data does not provide a power rating for the JCB TM 180 wheel loader.

What is the maximum discharge height of the JCB TM 180 wheel loader?

The JCB TM 180 wheel loader has a maximum discharge height of 3.57 meters.

What are the specifications of the bucket on the JCB TM 180 wheel loader?

The bucket on the JCB TM 180 has a capacity of 0.7 cubic meters and a width of 1.85 meters.

How much is a JCB TM 180 Wheel loader (2016u20132019) worth?

The residual value of the JCB TM 180 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
