457 HT JCB 457 HT Specifications & Technical Data (2015—2019)

The JCB 457 HT is a wheel loader manufactured from 2015 to 2019. It has a weight of 20.53 tons and a transport length of 8.52 mete…

The JCB 457 HT is a wheel loader manufactured from 2015 to 2019. It has a weight of 20.53 tons and a transport length of 8.52 meters. The bucket capacity is 3.5 cubic meters, and the maximum discharge height is 3.03 meters. It has a travel speed of 40 km/h and a transport width of 2.73 meters. The transport height is 3.43 meters, and the lifting force is 143 kN. The turning radius outside is 6.63 meters, and it is equipped with air conditioning.

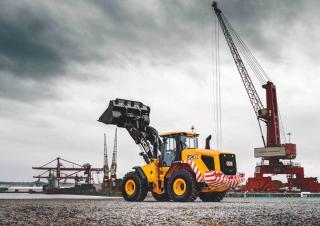

Wheel Loaders JCB 457 HT
Wheel Loaders JCB 457 HT
Wheel Loaders JCB 457 HT
Wheel Loaders JCB 457 HT

Visit JCB live at

Technical specs - 457 HT JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.53 t
Standard tyres
23.5 R25 XHA
Bucket capacity
3.5 m³
Bucket capacity min.
3.5 m³
Steering mode
KL
Transport length
8.52 m
Transport width
2.73 m
Transport height
3.43 m
Travel speed
40 km/h
Max. discharge height
3.03 m
Turning radius outside
6.63 m
Lifting force
143 kN
Engine manuf.
MTU
Engine type
6 R 1000
Engine power
191 kW
Displacement
7.7 l
Revolutions at max torque
1600 rpm
Max. torque
1200 Nm
No. of cylinders
6
Emission level
IV

More technical details, like: bucket width, bucket capacity max., model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 457 HT FAQ

When was the JCB 457 HT manufactured?

The JCB 457 HT was manufactured from 2015 to 2019.

How much does the JCB 457 HT wheel loader weigh?

The JCB 457 HT wheel loader weighs 20.53 tons.

What are the transport dimensions of the JCB 457 HT wheel loader?

The JCB 457 HT has a transport length of 8.52 meters, a transport width of 2.73 meters, and a transport height of 3.43 meters.

What is the travel speed of the JCB 457 HT wheel loader?

The JCB 457 HT wheel loader has a travel speed of 40 km/h.

What are the tyre specifications of the JCB 457 HT wheel loader?

The JCB 457 HT wheel loader is equipped with standard tyres sized 23.5 R25 XHA.

What are the maneuverability specifications of the JCB 457 HT wheel loader?

The JCB 457 HT wheel loader has an articulated-frame steering system and an outside turning radius of 6.63 meters.

What is the lifting force of the JCB 457 HT wheel loader?

The JCB 457 HT wheel loader has a lifting force of 143 kN.

What is the maximum discharge height of the JCB 457 HT?

The JCB 457 HT has a maximum discharge height of 3.03 meters.

What is the bucket capacity of the JCB 457 HT wheel loader?

The JCB 457 HT wheel loader has a bucket capacity of 3.5 cubic meters.

How much is a JCB 457 HT Wheel loader (2015u20132019) worth?

The residual value of the JCB 457 HT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB 457 HT overview

JCB 457 HT features overview

Loader – HT

Widely spaced four ram geometry provides the combination of excellent visibility with high bucket torque characteristics throughout the working arc. The pin, bush and sealing design on all pivot points provide extended maintenance intervals.


Engine / Powertrain / Drivetrain

Engine

6-cylinder variable geometry turbo-charged and charge air cooled 8.9l diesel engine. High pressure common rail fuel injection, cooled exhaust gas recirculation and a diesel particulate filter combine to reduce emissions and optimise fuel efficiency.


Transmission

4 wheel drive, automatic 4 speed transmission. “Power-inch” intelligent clutch cut off technology as standard. Optional 5 speed transmission with auto-locking torque converter available for even more speed and efficiency.


Axles

3 axles options available; Torque proportioning differentials, Limited slip differentials or Open differentials with automatic differential locking. All axle options feature wheel speed braking for lower heat build up and longer service life.


Brakes

Hydraulic power braking on all wheels, operating pressure 80 bar (1160psi). Dual circuit with accumulator back-up provide maximum safety under all conditions. In board mounted, oil immersed, multi-plate disc brakes with sintered linings reduce heat build up. Wheel speed braking improves performance and reduce wear. Parking brake, electro-hydraulic disc type operating on transmission output shaft.


Hydraulic system

Steering

Priority steer hydraulic system with emergency steering. Piston pump meters flow through steer valve to provide smooth low effort response. Steering angle = 40°. Steer rams fitted with end rod damping to provide cushioned steering at full articulation. Adjustable steering column.
