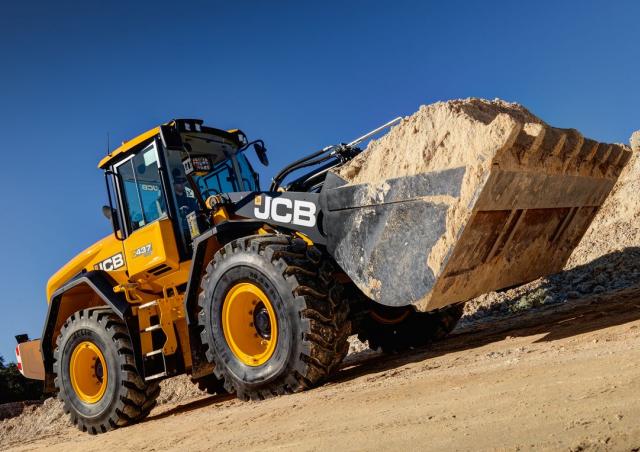

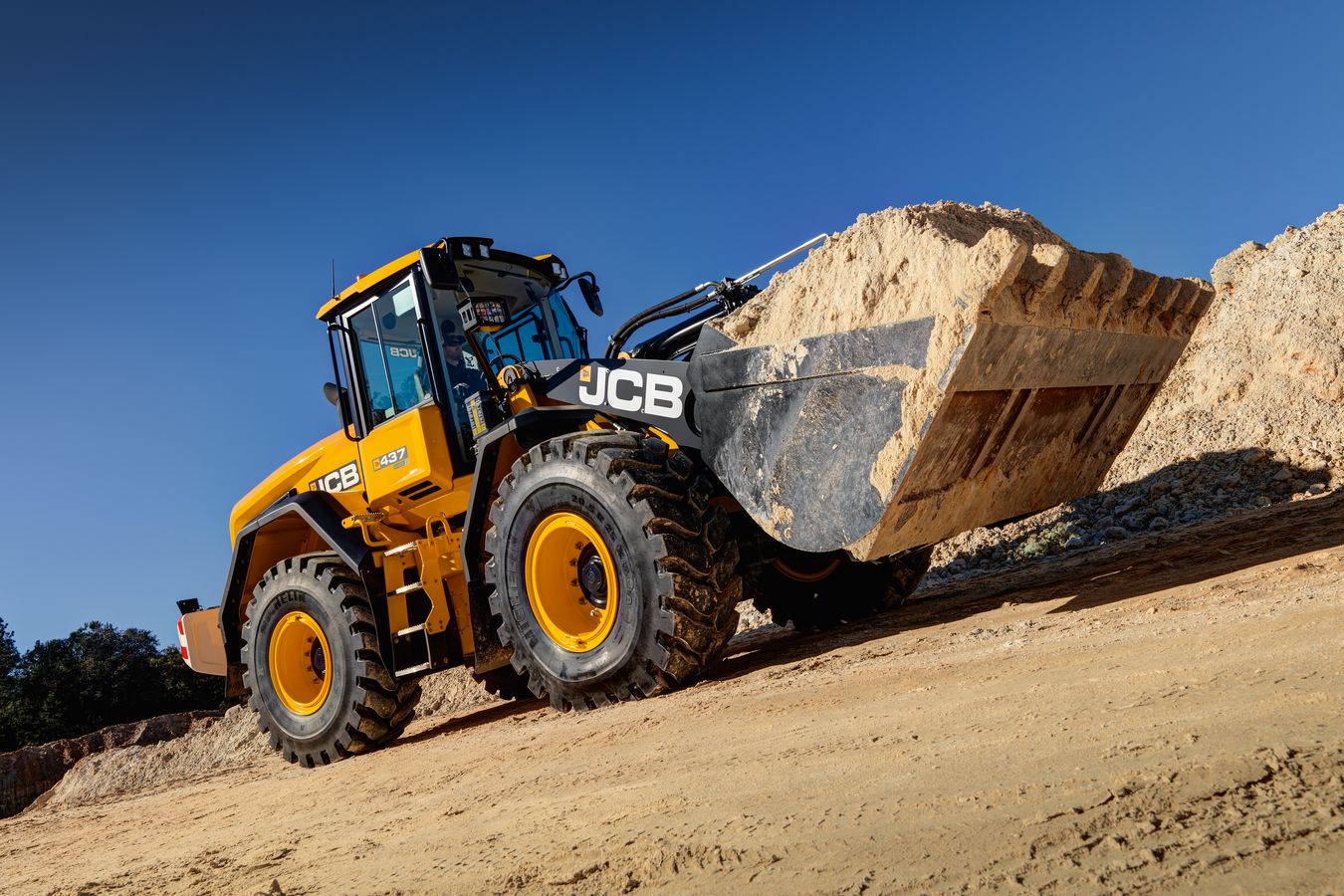

437 HT JCB 437 HT Specifications & Technical Data (2019—2026)
.jpg)
Visit JCB live at
.jpg){kind=logo}
Technical specs - 437 HT JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16.02 t
- Standard tyres
- 20.5R25 XHA2
- Bucket capacity
- 2.3 m³
- Bucket capacity min.
- 2.3 m³
- Bucket capacity max.
- 2.7 m³
- Steering mode
- KL
- Transport length
- 8.49 m
- Transport width
- 2.6 m
- Transport height
- 3.36 m
- Travel speed
- 40 km/h
- Max. discharge height
- 4.01 m
- Turning radius outside
- 6.626 m
- Lifting force
- 153 kN
- Model series
- 400
- Engine manuf.
- Cummins
- Engine type
- QSB6.7
- Engine power
- 145 kW
- Displacement
- 6.7 l
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 881 Nm
- No. of cylinders
- 6
- Emission level
- V
More technical details, like: bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
Yes
- Swing loader
-
No
- telescopic
-
No
- Aircondition
-
Yes
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
