419 S JCB 419 S Specifications & Technical Data (2017—2020)

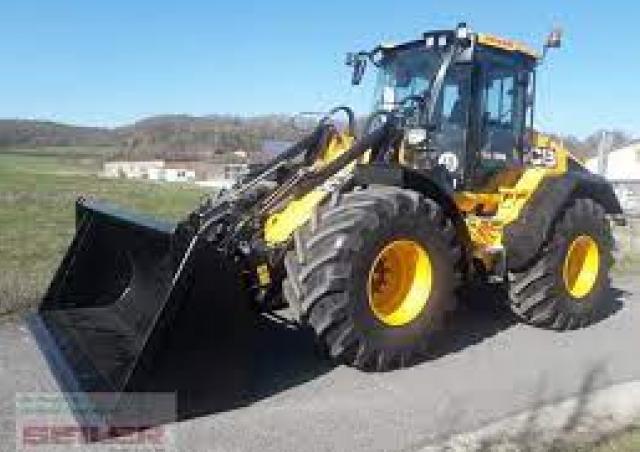

The JCB 419 S is a wheel loader manufactured by JCB from 2017 to 2020. It has a weight of 10.61 tons and a transport length of 6.6…

The JCB 419 S is a wheel loader manufactured by JCB from 2017 to 2020. It has a weight of 10.61 tons and a transport length of 6.63 meters. The bucket capacity is 1.6 cubic meters, with a maximum discharge height of 2.75 meters. The travel speed of the machine is 48 km/h. It has a transport width of 2.7 meters and a transport height of 3.19 meters. The lifting force of the loader is 92 kN, and it has a turning radius outside of 5.74 meters. The bucket capacity is a minimum of 1.6 cubic meters. The special equipment includes air conditioning and a quick hitch hydraulic system.

Wheel Loaders JCB 419 S

Visit JCB live at

Technical specs - 419 S JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.61 t
Standard tyres
620/75 R26
Bucket capacity
1.6 m³
Bucket capacity min.
1.6 m³
Steering mode
KL
Transport length
6.63 m
Transport width
2.7 m
Transport height
3.19 m
Travel speed
48 km/h
Max. discharge height
2.75 m
Turning radius outside
5.74 m
Lifting force
92 kN
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
136 kW
Displacement
6.7 l
Revolutions at max torque
1950 rpm
Max. torque
840/1500 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
IV

More technical details, like: bucket width, bucket capacity max., model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

JCB 419 S FAQ

When was the JCB 419 S manufactured?

The JCB 419 S was manufactured from 2017 to 2020.

How much does the JCB 419 S wheel loader weigh?

The JCB 419 S wheel loader weighs 10.61 tons.

What are the transport dimensions of the JCB 419 S wheel loader?

The JCB 419 S has a transport length of 6.63 meters, a transport width of 2.7 meters, and a transport height of 3.19 meters.

What is the travel speed of the JCB 419 S wheel loader?

The JCB 419 S wheel loader has a travel speed of 48 km/h.

What are the standard tyre specifications of the JCB 419 S wheel loader?

The JCB 419 S wheel loader has standard tyres sized 620/75 R26.

What are the maneuverability specifications of the JCB 419 S wheel loader?

The JCB 419 S has an outside turning radius of 5.74 meters and uses articulated-frame steering.

What are the power ratings of the JCB 419 S wheel loader?

The available data does not provide power ratings for the JCB 419 S wheel loader.

What is the maximum discharge height of the JCB 419 S?

The JCB 419 S has a maximum discharge height of 2.75 meters.

What is the bucket capacity of the JCB 419 S wheel loader?

The JCB 419 S wheel loader has a bucket capacity of 1.6 cubic meters.

How much is a JCB 419 S Wheel loader (2017u20132020) worth?

The residual value of the JCB 419 S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
