417 HT JCB 417 HT Specifications & Technical Data (2021—2026)

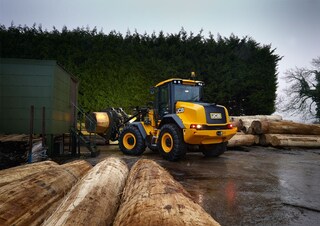

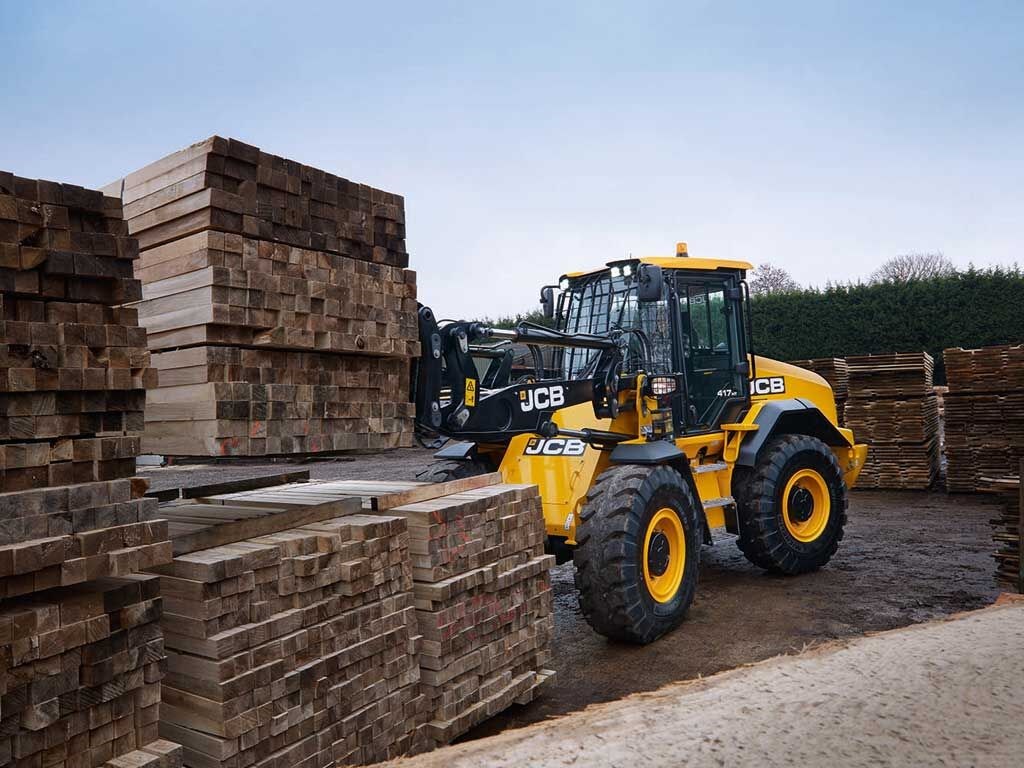

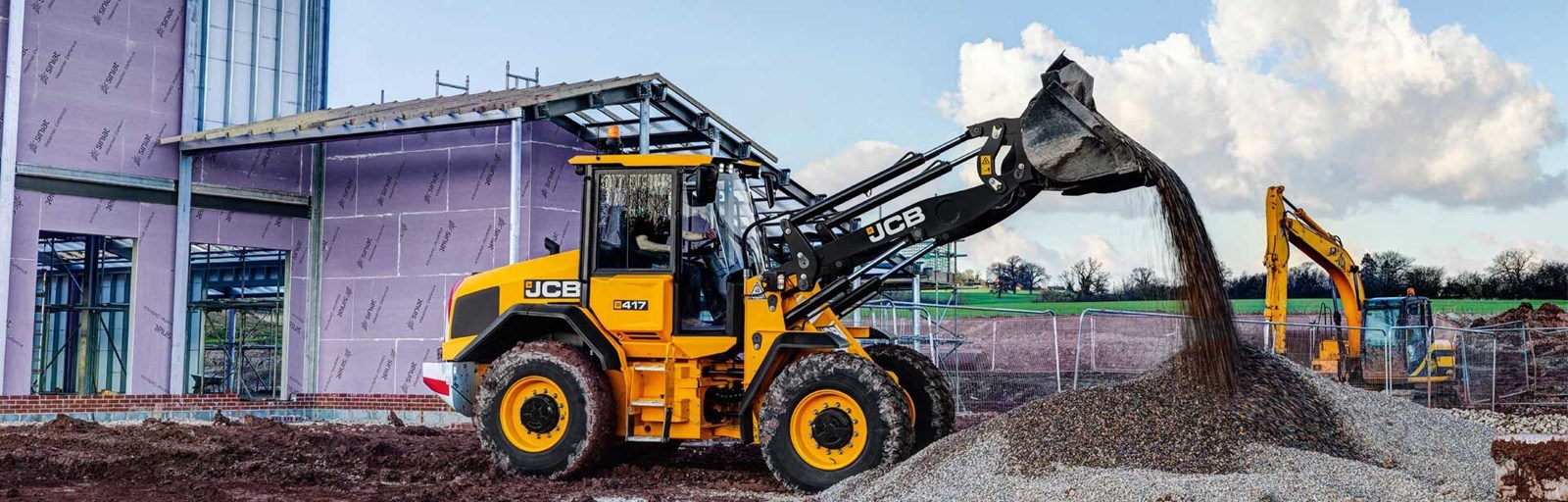

The JCB 417 HT is a wheel loader manufactured by JCB since 2021. It has a weight of 9.81 tons and a transport length of 6.29 meter…

The JCB 417 HT is a wheel loader manufactured by JCB since 2021. It has a weight of 9.81 tons and a transport length of 6.29 meters. The bucket capacity is 1.6 cubic meters with a width of 2.4 meters. The maximum discharge height is 2.67 meters. It has a travel speed of 40 km/h and a transport width of 2.33 meters. The transport height is 3.08 meters. The lifting force is 65 kN and the turning radius outside is 5.46 meters. The bucket capacity is a minimum of 1.6 cubic meters. It is equipped with air conditioning, a diesel particulate filter, and a quick hitch hydraulic system.

Visit JCB live at

417 HT

Years of manufacture: 2021—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - 417 HT JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.81 t

Standard tyres: 17.5 R25 XHA

Bucket width: 2.4 m

Bucket capacity: 1.6 m³

Bucket capacity min.: 1.6 m³

Steering mode: KL

Transport length: 6.29 m

Transport width: 2.33 m

Transport height: 3.08 m

Travel speed: 40 km/h

Max. discharge height: 2.67 m

Turning radius outside: 5.46 m

Lifting force: 65 kN

Model series: 400

Engine manuf.: JCB

Engine type: EcoMax

Engine power: 97 kW

Displacement: 4.8 l

Revolutions at max torque: 1500 rpm

Max. torque: 550 Nm

No. of cylinders: 4

Cylinder bore x stroke: 106x139 mm

Emission level: V

More technical details, like: bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

JCB 417 HT FAQ

When was the JCB 417 HT manufactured?

The JCB 417 HT was first produced in 2021.

How much does the JCB 417 HT wheel loader weigh?

The JCB 417 HT wheel loader weighs 9.81 tons.

What are the transport dimensions of the JCB 417 HT wheel loader?

The JCB 417 HT has a transport length of 6.29 meters, a transport width of 2.33 meters, and a transport height of 3.08 meters.

What is the travel speed of the JCB 417 HT wheel loader?

The JCB 417 HT wheel loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 417 HT wheel loader?

The JCB 417 HT wheel loader is equipped with standard tyres sized 17.5 R25 XHA.

What are the maneuverability specifications of the JCB 417 HT wheel loader?

The JCB 417 HT wheel loader has an outside turning radius of 5.46 meters and uses articulated-frame steering.

What is the lifting force of the JCB 417 HT wheel loader?

The JCB 417 HT wheel loader has a lifting force of 65 kN.

What is the maximum discharge height of the JCB 417 HT?

The JCB 417 HT has a maximum discharge height of 2.67 meters.

What are the bucket specifications of the JCB 417 HT wheel loader?

The JCB 417 HT wheel loader has a bucket with a capacity of 1.6 cubic meters, a minimum capacity of 1.6 cubic meters, and a width of 2.4 meters.

How much is a JCB 417 HT Wheel loader (2021u20132025) worth?

The residual value of the JCB 417 HT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
