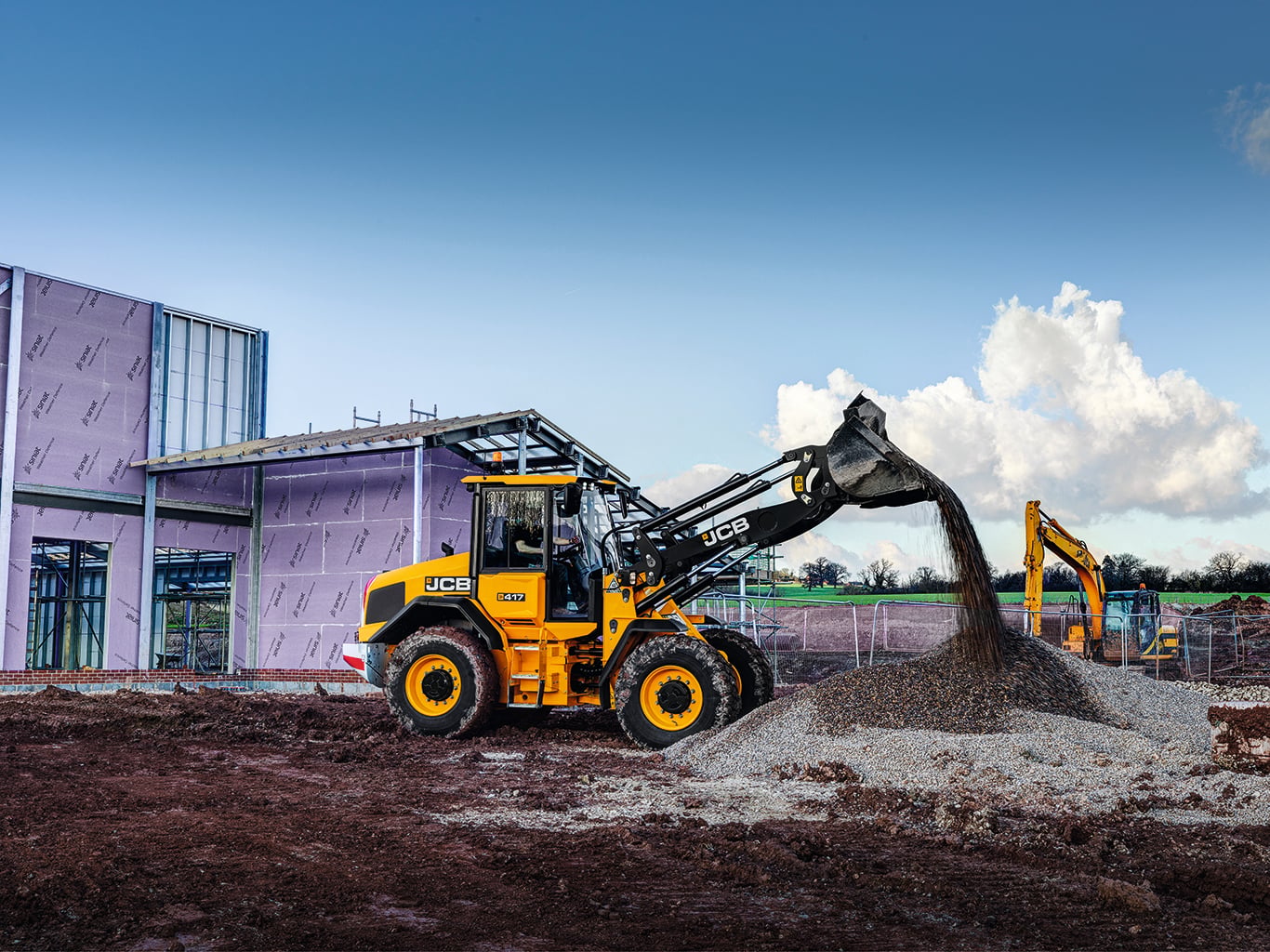

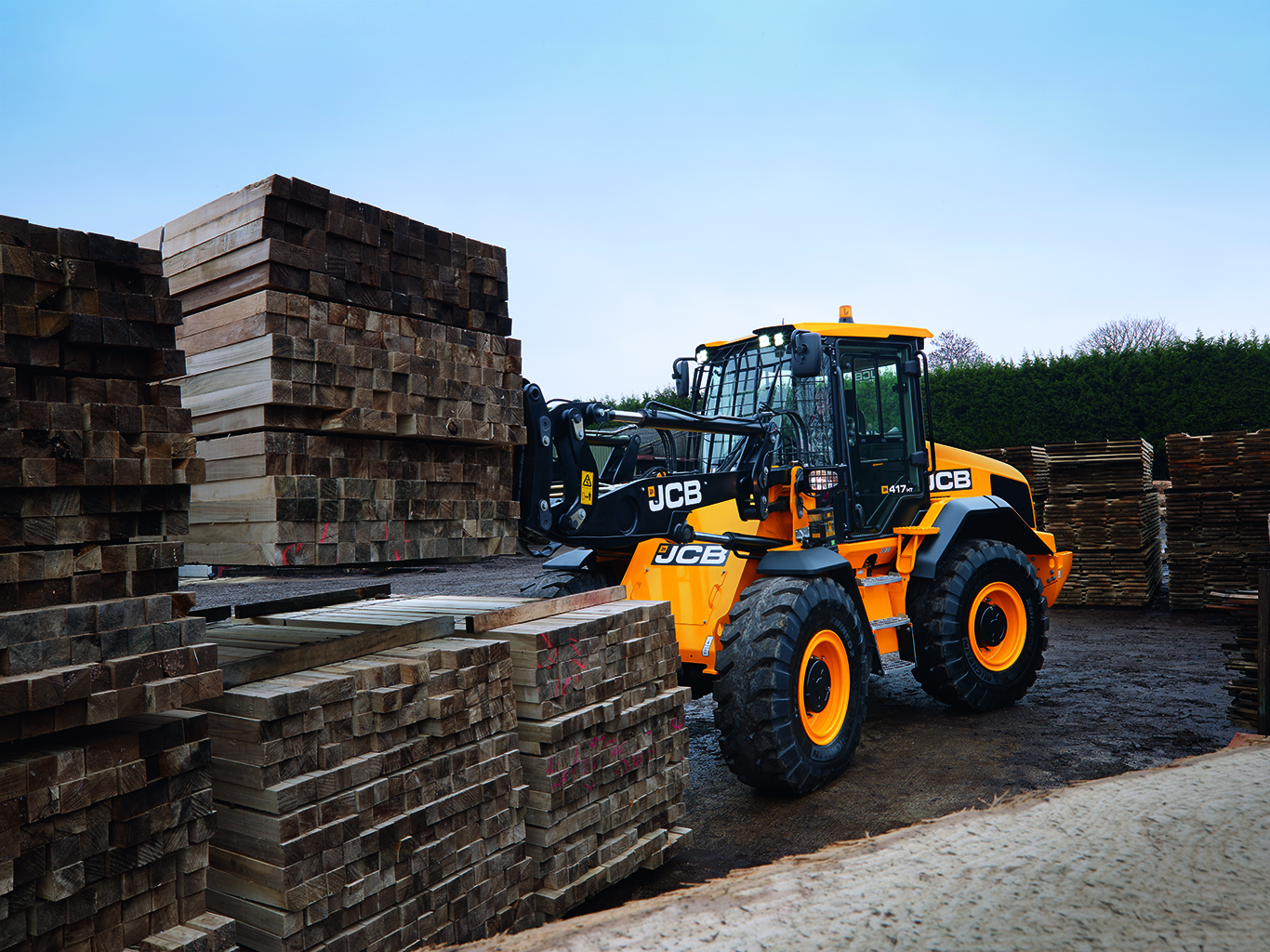

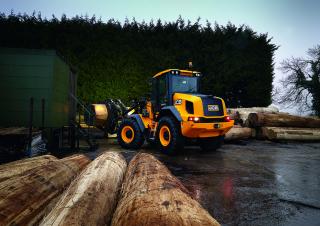

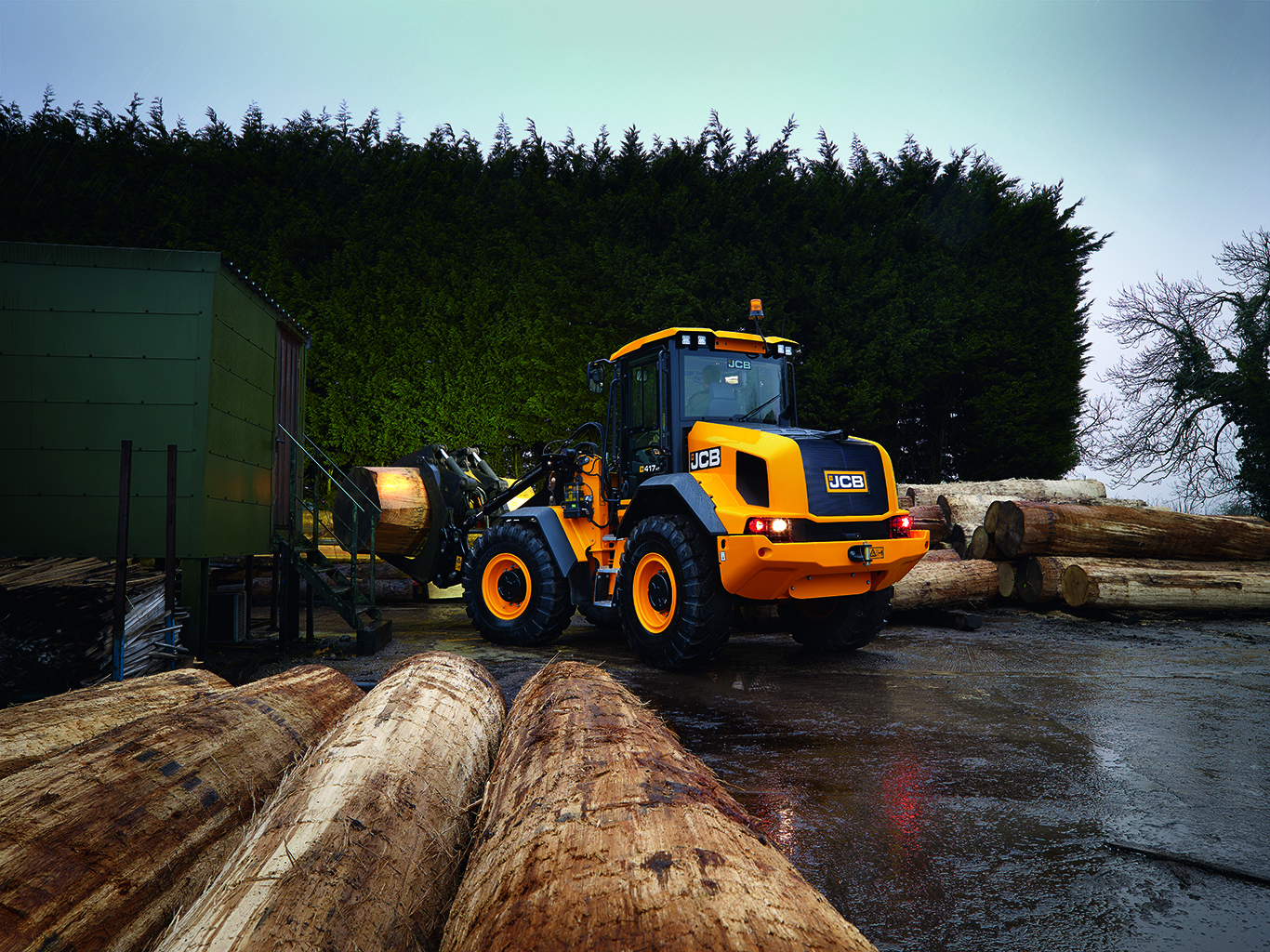

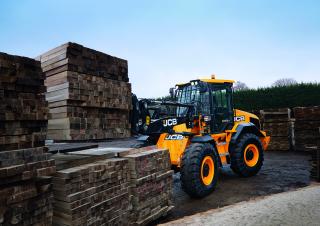

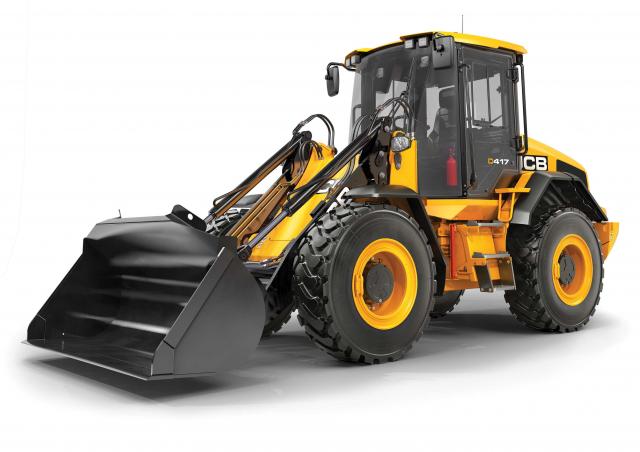

417 HT JCB 417 HT Specifications & Technical Data (2013—2016)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit JCB live at
.jpg){kind=logo}
Technical specs - 417 HT JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 9.77 t
- Standard tyres
- 15.5 R25 XHA
- Bucket width
- 2.4 m
- Bucket capacity
- 1.6 m³
- Bucket capacity min.
- 1.4 m³
- Steering mode
- KL
- Transport length
- 6.49 m
- Transport width
- 2.33 m
- Transport height
- 3.08 m
- Travel speed
- 40 km/h
- Max. discharge height
- 2.88 m
- Turning radius outside
- 5.35 m
- Lifting force
- 65 kN
- Engine manuf.
- JCB
- Engine type
- EcoMax
- Engine power
- 93 kW
- Displacement
- 4.4 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 550 Nm
- No. of cylinders
- 4
- Emission level
- Tier 4 i
More technical details, like: bucket capacity max., model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Swing loader
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
