409 JCB 409 Specifications & Technical Data (2014—2019)

Productivity and cost benefits

By providing information like idle time monitoring and machine fuel consumption, JCB LiveLink helps reduce your fuel usage, saving money and improving productivity. Machine location information can help improve efficiency and perhaps even reduce insurance costs.

Maintenance benefits

Manage machine maintenance easily – accurate hours monitoring and service alerts improve maintenance planning, while real-time location data helps you manage your fleet. Critical machine alerts and maintenance history records are also available.

Security benefits

LiveLink’s real-time geofencing alerts tell you when machines move out of predetermined zones, and real-time curfew alerts inform you of unauthorised usage. Further benefits include real-time location information.

Productive Performance

The JCB 406, 407 and 409 are highly productive wheel loaders with optimal power-to-weight ratio, making them perfect tool carriers. Both larger machines are Tier 4 Final/Stage IV-compliant using just a diesel oxidation catalyst (DOC). They’re also more frugal than outgoing Tier 3 models.

Versatility by the bucketload

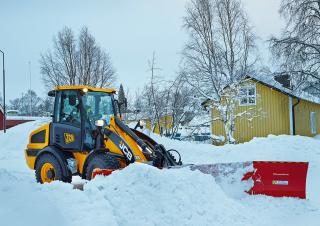

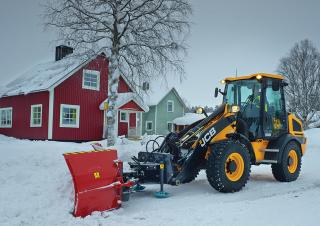

Equip your wheel loader with our new towing option and you’ll get a hitch with rear electrics and hydraulics, allowing you to trailer loads of up to 3.5 tonnes or carry rear attachments like salt spreaders. By splitting power between the transmission and the hydraulics, our inching pedal allows precise, efficient, stepless load handling. Our wheel loaders are even more versatile when you use both front and rear attachments; you could, for example, combine a snow plough and rear grit spreader.

General Machine Features

Parallel lift geometry, JCB Hydraulic Quickhitch, articulated steering, front and rear fenders, one piece opening bonnet, recovery hitch, lifting lugs, temperature controlled engine cooling fan.

JCB Compact Wheel Loaders

JCB compact wheel loaders like the 406, 407 and 409 are designed to make work more straightforward. They’re easy to access, intuitive to operate, and they’re operated from the centre of the machine for superb visibility. After all, a comfortable, confident operator is a more productive one.

A Comfortable Operator

The JCB 406, 407 and 409 all benefit from a comfortable and spacious cab. The operating position is designed for optimum all-round visibility, unhindered by components like silencers. Our tilting telescopic steering column is easy to adjust for an ergonomic driving position. All the instruments needed to operate a JCB wheel loader are within easy reach of the seat, so there’s no need to hunt around for information whilst working. With a fully opening right-hand window operators can enjoy increased ventilation whilst still being protected from dust.

In Complete Control

A stylish, modern central dash display on the 407 and 409 combines analogue dials and a colour LCD screen – this can display machine health details, service requirements, operating information and more. These compact wheel loaders are equipped with an ergonomically designed joystick control system for comfortable and intuitive operation.

Hydraulics

Single lever manual control, gear pump with priority steer, emergency steer back up. ROPS/FOPS safety structure, fully adjustable seat, interior light, adjustable tilt steering column, safety glass, front and rear screen wash/wipe, 3 speed heater fan with replaceable filters, sun visor.

Wheel Loaders

At JCB, we understand that a wheel loader is a key part of any on-site process. That’s why the 406, 407 and 409 are built on a foundation of quality and reliability, ensuring that they’ll always be a key part of your working process.

Built to last.

We understand how tough materials handling can be, so our machines are developed to be highly durable. A case in point is our heavy-duty centre joint, which oscillates through ± 10°. These machines benefit from a strong chassis and the best possible weight distribution; this allows for the best possible absorption of external forces.
