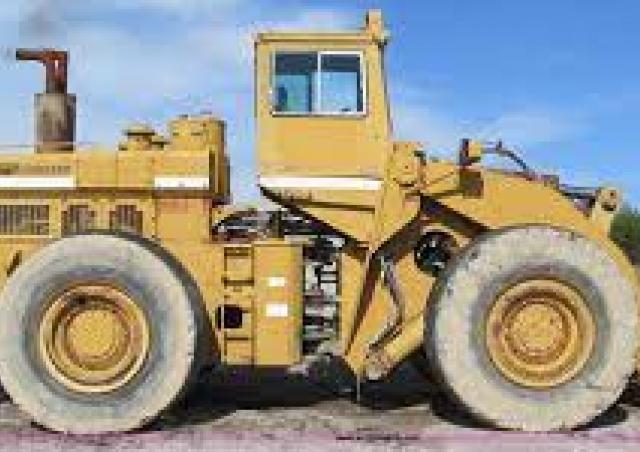

570 International Harvester 570 Specifications & Technical Data (1980—2026)

The International 570 is a wheel loader manufactured since 1980. It has a weight of 59 tons and a bucket capacity of 9 cubic meter…

The International 570 is a wheel loader manufactured since 1980. It has a weight of 59 tons and a bucket capacity of 9 cubic meters, with a bucket width of 4 meters. The travel speed is 36 km/h.

Wheel Loaders International Harvester 570

Technical specs - 570 International Harvester

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
59.96 t
Standard tyres
65/40 x 39
Bucket width
4.27 m
Bucket capacity
9.18 m³
Travel speed
36.4 km/h
Engine manuf.
Cummins
Engine type
VT-1710-C
Engine power
474 kW
Displacement
28 l
Revolutions at max torque
2100 rpm
No. of cylinders
12

More technical details, like: bucket capacity min., bucket capacity max., steering mode, transport length, transport width, transport height, max. discharge height, turning radius outside, lifting force, model series, dimension lxwxh, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., steering mode, transport length, transport width, transport height, max. discharge height, turning radius outside, lifting force, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

International Harvester 570 FAQ

When was the International Harvester 570 manufactured?

The International Harvester 570 was first produced in 1980.

How much does the International Harvester 570 weigh?

The International Harvester 570 weighs 59.96 tons.

What is the travel speed of the International Harvester 570 wheel loader?

The International Harvester 570 has a travel speed of 36.4 km/h.

What are the undercarriage specifications of the International Harvester 570 wheel loader?

The International Harvester 570 wheel loader is equipped with standard tyres sized 65/40 x 39.

What are the bucket specifications of the International Harvester 570 wheel loader?

The International Harvester 570 wheel loader has a bucket capacity of 9.18 cubic meters and a bucket width of 4.27 meters.
