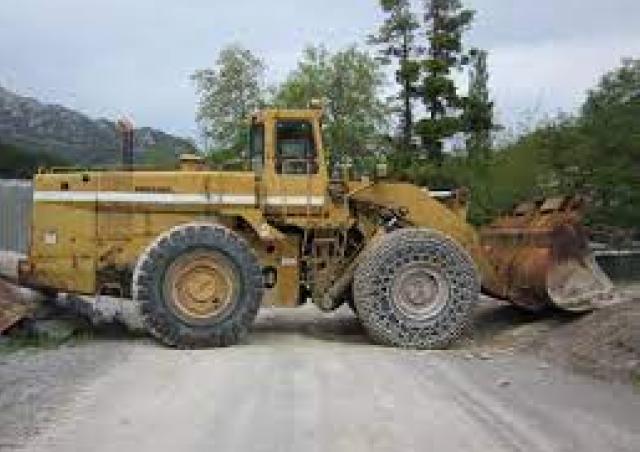

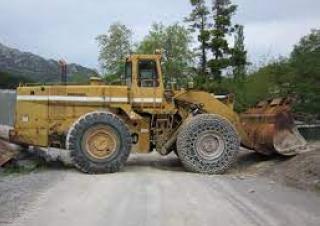

560B International Harvester 560B Specifications & Technical Data (1982—1993)
Technical specs - 560B International Harvester
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 39.61 t
- Standard tyres
- 29.5 x 29
- Bucket width
- 3.6 m
- Bucket capacity
- 5.7 m³
- Transport height
- 4.2 m
- Travel speed
- 32.5 km/h
- Max. discharge height
- 5.05 m
- Turning radius outside
- 8.6 m
- Engine manuf.
- Cummins
- Engine type
- KT-1150-C
- Engine power
- 335 kW
- Revolutions at max torque
- 2100 rpm
- Max. torque
- 1831 Nm
- No. of cylinders
- 6
More technical details, like: bucket capacity min., bucket capacity max., steering mode, transport length, transport width, lifting force, model series, dimension lxwxh, displacement, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Swing loader
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download datasheets (PDF)
International Harvester 560B FAQ
How much does the International Harvester 560B weigh?
What is the transport height of the International Harvester 560B wheel loader?
What is the travel speed of the International Harvester 560B wheel loader?
What is the standard tyre size of the International Harvester 560B?
What is the turning radius of the International Harvester 560B wheel loader?
What is the maximum discharge height of the International Harvester 560B wheel loader?
What are the bucket specifications of the International Harvester 560B wheel loader?
How much is a International Harvester 560B Wheel loader (1982u20131993) worth?
