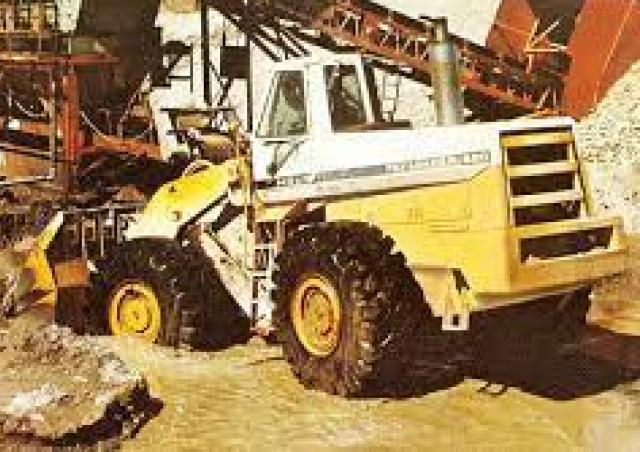

560 International Harvester 560 Specifications & Technical Data (1977—2026)
Technical specs - 560 International Harvester
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 29.11 t
- Standard tyres
- 29.5 x 29
- Bucket width
- 3.56 m
- Bucket capacity min.
- 4.21 m³
- Bucket capacity max.
- 9.17 m³
- Transport height
- 4.03 m
- Travel speed
- 35.72 km/h
- Max. discharge height
- 3.75 m
- Engine manuf.
- International
- Engine type
- DT-817C
- Engine power
- 313 kW
- Displacement
- 13.39 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 1638 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 136.5 x 154.2 mm
More technical details, like: bucket capacity, steering mode, transport length, transport width, turning radius outside, lifting force, model series, dimension lxwxh, emission level are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Swing loader
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download datasheets (PDF)
