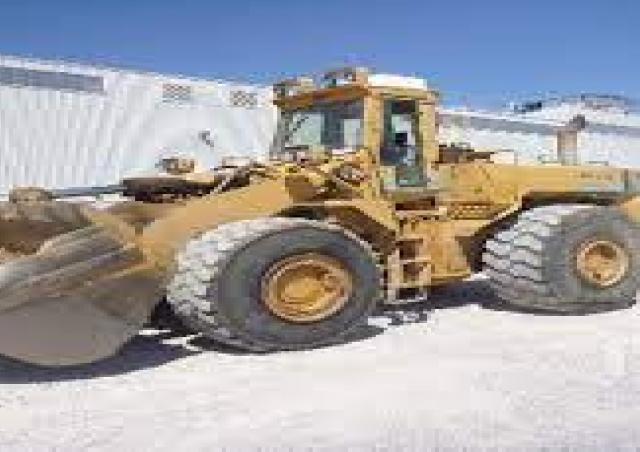

555 International Harvester 555 Specifications & Technical Data (1989—2026)

The International 555 is a wheel loader manufactured since 1989. It has a weight of 30 tons and a bucket width of 3 meters. The ma…

The International 555 is a wheel loader manufactured since 1989. It has a weight of 30 tons and a bucket width of 3 meters. The maximum discharge height is 4 meters and it can travel at a speed of 35 km/h. The transport width and height are both 3 meters. The bucket capacity ranges from 4 to 8 cubic meters.

Wheel Loaders International Harvester 555

Technical specs - 555 International Harvester

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
30.11 t
Standard tyres
26.5 x 25
Bucket width
3.48 m
Bucket capacity min.
4.21 m³
Bucket capacity max.
8.41 m³
Transport width
3.18 m
Transport height
3.6 m
Travel speed
35.1 km/h
Max. discharge height
4.78 m
Engine manuf.
Cummins
Engine type
NTA 855
Engine power
234.9 kW
Displacement
14 l
Revolutions at max torque
1400 rpm
Max. torque
1464 Nm
No. of cylinders
6
Cylinder bore x stroke
140 x 160 mm

More technical details, like: bucket capacity, steering mode, transport length, turning radius outside, lifting force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

International Harvester 555 FAQ

When was the International Harvester 555 manufactured?

The International Harvester 555 was first produced in 1989.

How much does the International Harvester 555 wheel loader weigh?

The International Harvester 555 wheel loader weighs 30.11 tons.

What are the transport dimensions of the International Harvester 555?

The International Harvester 555 has a transport width of 3.18 meters and a transport height of 3.6 meters.

What is the travel speed of the International Harvester 555 wheel loader?

The International Harvester 555 wheel loader has a travel speed of 35.1 km/h.

What are the undercarriage specifications of the International Harvester 555 wheel loader?

The International Harvester 555 wheel loader is equipped with standard tyres sized 26.5 x 25.

What is the material handling capacity of the International Harvester 555 in terms of discharge height?

The International Harvester 555 has a maximum discharge height of 4.78 meters.

What are the bucket specifications of the International Harvester 555 wheel loader?

The International Harvester 555 wheel loader has a bucket width of 3.48 meters, with a maximum capacity of 8.41 cubic meters and a minimum capacity of 4.21 cubic meters.
