515 International Harvester 515 Specifications & Technical Data (1976—2026)

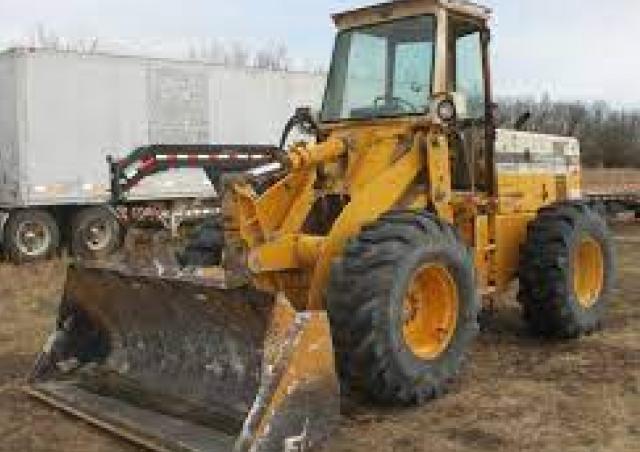

The International 515 Wheel Loader, manufactured since 1976, is a construction machine with a bucket width of 2 meters. It has a m…

The International 515 Wheel Loader, manufactured since 1976, is a construction machine with a bucket width of 2 meters. It has a maximum discharge height of 2 meters and a travel speed of 37 km/h. The transport height of the machine is 3 meters. The bucket capacity ranges from a maximum of 1 cubic meter to a minimum of 0 cubic meters.

Wheel Loaders International Harvester 515

Technical specs - 515 International Harvester

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Standard tyres
18.4 x 24/15.5 x 25
Bucket width
2.39 m
Bucket capacity max.
1.53 m³
Transport height
3.18 m
Travel speed
37.01 km/h
Max. discharge height
2.82 m
Engine manuf.
International
Engine type
D-360
Engine power
102 kW
Displacement
5.9 l
Revolutions at max torque
1800 rpm
Max. torque
348 Nm
No. of cylinders
6
Cylinder bore x stroke
99 x 129 mm

More technical details, like: weight, bucket capacity, bucket capacity min., steering mode, transport length, transport width, turning radius outside, lifting force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

International Harvester 515 FAQ

When was the International Harvester 515 manufactured?

The International Harvester 515 was first produced in 1976.

What is the transport height of the International Harvester 515 wheel loader?

The transport height of the International Harvester 515 wheel loader is 3.18 meters.

What is the travel speed of the International Harvester 515 wheel loader?

The International Harvester 515 wheel loader has a travel speed of 37.01 km/h.

What are the undercarriage specifications of the International Harvester 515 wheel loader?

The International Harvester 515 wheel loader comes with standard tyres sized 18.4 x 24 and 15.5 x 25.

What is the maximum discharge height of the International Harvester 515?

The International Harvester 515 has a maximum discharge height of 2.82 meters.

What are the bucket specifications of the International Harvester 515 wheel loader?

The International Harvester 515 wheel loader has a maximum bucket capacity of 1.53 cubic meters and a bucket width of 2.39 meters.
