LX 290 E Hitachi LX 290 E Specifications & Technical Data (2003—2007)

Model rating: 7,67 / 10

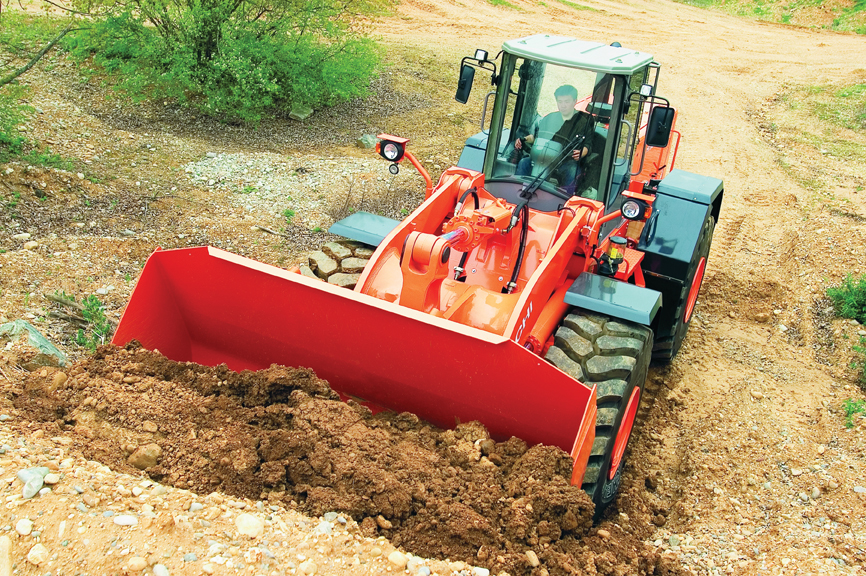

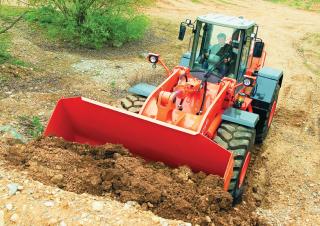

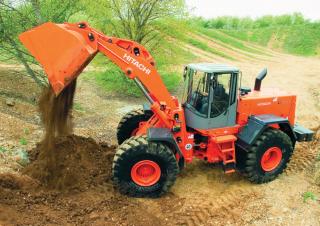

The Hitachi LX 290 E is a wheel loader manufactured by Hitachi from 2003 to 2007. It has a weight of 21.6 tons and a transport len…

The Hitachi LX 290 E is a wheel loader manufactured by Hitachi from 2003 to 2007. It has a weight of 21.6 tons and a transport length of 8.4 meters. The bucket capacity is 4 cubic meters, with a minimum capacity of 4 cubic meters. The transport width is 2.97 meters and the transport height is 3.45 meters. The machine is equipped with air conditioning as special equipment.

Visit Hitachi live at

LX 290 E

Years of manufacture: 2003—2007

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - LX 290 E Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 21.6 t

Standard tyres: 26.5 R25

Bucket capacity: 4 m³

Bucket capacity min.: 4 m³

Steering mode: KL

Transport length: 8.4 m

Transport width: 2.97 m

Transport height: 3.45 m

Model series: LX

Engine manuf.: Isuzu

Engine type: 6 SD 1 XQF

Engine power: 228 kW

More technical details, like: bucket width, bucket capacity max., travel speed, max. discharge height, turning radius outside, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Hitachi LX 290 E FAQ

When was the Hitachi LX 290 E manufactured?

The Hitachi LX 290 E was manufactured from 2003 to 2007.

How much does the Hitachi LX 290 E wheel loader weigh?

The Hitachi LX 290 E wheel loader weighs 21.6 tons.

What are the transport dimensions of the Hitachi LX 290 E wheel loader?

The Hitachi LX 290 E has a transport length of 8.4 meters, a transport width of 2.97 meters, and a transport height of 3.45 meters.

What are the undercarriage specifications of the Hitachi LX 290 E wheel loader?

The Hitachi LX 290 E wheel loader is equipped with standard tyres sized 26.5 R25.

What is the steering mode of the Hitachi LX 290 E wheel loader?

The Hitachi LX 290 E wheel loader uses articulated-frame steering.

What is the bucket capacity of the Hitachi LX 290 E wheel loader?

The Hitachi LX 290 E wheel loader has a bucket capacity of 4 cubic meters.

How much is a Hitachi LX 290 E Wheel loader (2003u20132007) worth?

The residual value of the Hitachi LX 290 E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hitachi LX 290 E overview

Engine / Powertrain / Drivetrain

Controls

Control of loader kinematics by one joystick in compliance with ISO standards. Control of auxiliary hydraulic circuit (optional) by means of a separate lever. Control locking is possible when driving on the road. Reverse/forward shift by switch on equipment joystick or by commodo on steering column. Automatic gear selection with 'gear keep function', or manual selection by commodo on the steering column. Horn activation on steering wheel or mono-lever. Parking brake application on dashboard. Adjustable steering column.

Hydraulic system

Devices for maintenance

Centralized lubrication of the loader kinematics. Centralized lubrication of the rear axle articulation and oscillation. Tiltable cab for quick intervention on the hydraulic system, the transmission and the braking system. Transmission oil radiator, engine coolant radiator and hydraulic cooler are side by side. Air filter with radial ring and clogging indicator. Maintenance-free batteries, accessible from the ground, located in a case at the back of the machine. Fuses block located in the cab. Checking of air filter and engine oil level from the ground. Attachment pins with special seals. Lubrication every 100 hours. Inspection glasses to check the fluid level of hydraulic oil and transmission oil from the ground.

Operator's cab

Cabin

360° round visibility with a perfect view over all outer sides and edges of the wheel loader. Forward position of the cab giving an excellent visibility over the loader equipment. The operator sits exactly above the articulation joint. User-friendly, air suspension seat. Heating, pressurization, filtration, ventilation. Air-conditioning option. Low noise level in compliance with EC regulations.
