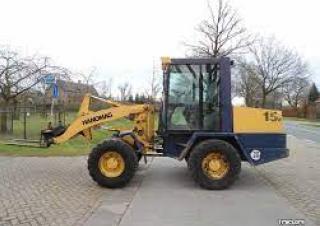

Hanomag 15 F Wheel Loader Specs & Dimensions (1990 - 1998)

Technical specs - 15 F Hanomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.6 t

Standard tyres: 14.5-20

Bucket capacity: 0.8 m³

Bucket capacity min.: 0.8 m³

Steering mode: KL

Transport length: 5.21 m

Transport width: 1.55 m

Transport height: 2.63 m

Engine manuf.: Perkins

Engine type: T 3.1524

Engine power: 40 kW

More technical details, like: bucket width, bucket capacity max., travel speed, max. discharge height, turning radius outside, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket width, bucket capacity max., travel speed, max. discharge height, turning radius outside, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Hanomag 15 F FAQ

When was the Hanomag 15 F manufactured?

The Hanomag 15 F was manufactured from 1990 to 1998.

How much does the Hanomag 15 F wheel loader weigh?

The Hanomag 15 F wheel loader weighs 4.6 tons.

What are the transport dimensions of the Hanomag 15 F wheel loader?

The Hanomag 15 F has a transport length of 5.21 meters, a transport width of 1.55 meters, and a transport height of 2.63 meters.

What is the standard tyre size of the Hanomag 15 F wheel loader?

The Hanomag 15 F wheel loader has standard tyres sized 14.5-20.

What is the steering mode of the Hanomag 15 F wheel loader?

The Hanomag 15 F wheel loader uses articulated-frame steering.

What is the bucket capacity of the Hanomag 15 F wheel loader?

The Hanomag 15 F wheel loader has a bucket capacity of 0.8 cubic meters.

How much is a Hanomag 15 F Wheel loader (1990u20131998) worth?

The residual value of the Hanomag 15 F depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
