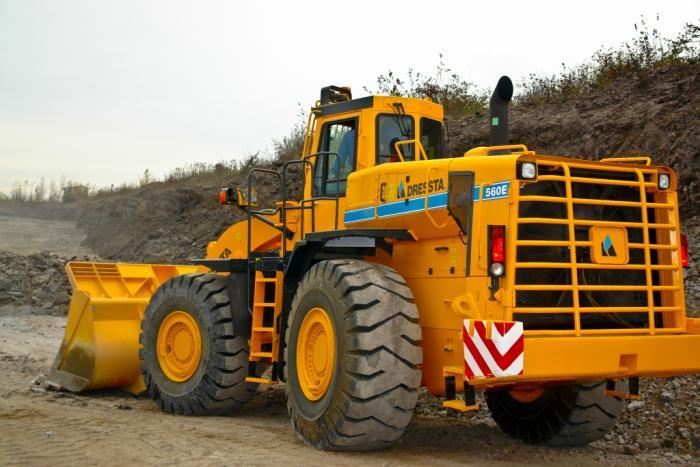

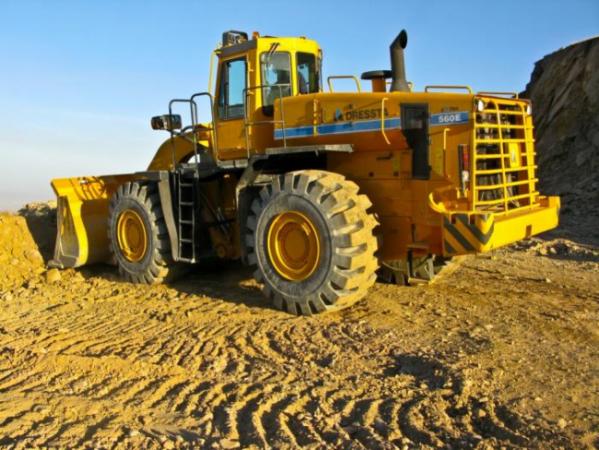

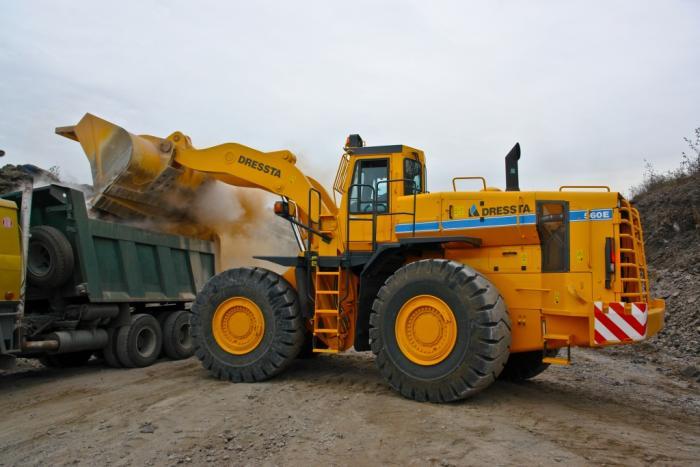

560 E Extra Dressta 560 E Extra Specifications & Technical Data (2007—2015)

The Dressta 560 E Extra is a wheel loader manufactured by Dressta from 2007 to 2015. It has a weight of 42 tons and a transport le…

The Dressta 560 E Extra is a wheel loader manufactured by Dressta from 2007 to 2015. It has a weight of 42 tons and a transport length of 8.24 meters. The bucket capacity is 5.3 cubic meters with a width of 3.65 meters. The maximum discharge height is 3.096 meters. It has a travel speed of 42.4 km/h and a transport width of 2.69 meters. The transport height is 3.65 meters and the turning radius outside is 6.22 meters. The maximum bucket capacity is 11.5 cubic meters, while the minimum is 5.3 cubic meters.

560 E Extra

Years of manufacture: 2007—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 560 E Extra Dressta

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 42 t

Standard tyres: 29.5x29-34 PR (L3)

Bucket width: 3.65 m

Bucket capacity: 5.3 m³

Bucket capacity min.: 5.3 m³

Bucket capacity max.: 11.5 m³

Steering mode: KL

Transport length: 8.24 m

Transport width: 2.69 m

Transport height: 3.65 m

Travel speed: 42.4 km/h

Max. discharge height: 3.096 m

Turning radius outside: 6.22 m

Model series: E

Engine manuf.: Cummins

Engine type: QSB6.7

Engine power: 155 kW

Displacement: 6.7 l

Revolutions at max torque: 1500 rpm

More technical details, like: lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

560 E Extra Dressta Specification for Europe (EN)

Dressta 560 E Extra FAQ

When was the Dressta 560 E Extra manufactured?

The Dressta 560 E Extra was manufactured from 2007 to 2015.

How much does the Dressta 560 E Extra weigh?

The Dressta 560 E Extra weighs 42 tons.

What are the transport dimensions of the Dressta 560 E Extra wheel loader?

The Dressta 560 E Extra has a transport length of 8.24 meters, a transport width of 2.69 meters, and a transport height of 3.65 meters.

What is the travel speed of the Dressta 560 E Extra wheel loader?

The Dressta 560 E Extra has a travel speed of 42.4 km/h.

What are the standard tyre specifications for the Dressta 560 E Extra wheel loader?

The Dressta 560 E Extra wheel loader has standard tyres sized 29.5x29-34 PR (L3).

What are the maneuverability specifications of the Dressta 560 E Extra wheel loader?

The Dressta 560 E Extra has an articulated-frame steering system and an outside turning radius of 6.22 meters.

What is the maximum discharge height of the Dressta 560 E Extra wheel loader?

The Dressta 560 E Extra wheel loader has a maximum discharge height of 3.1 meters.

What are the bucket specifications of the Dressta 560 E Extra wheel loader?

The Dressta 560 E Extra wheel loader has a bucket capacity ranging from 5.3 to 11.5 cubic meters, with a bucket width of 3.65 meters.

How much is a Dressta 560 E Extra Wheel loader (2007u20132015) worth?

The residual value of the Dressta 560 E Extra depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
