555 C Extra Dressta 555 C Extra Specifications & Technical Data (2007—2015)

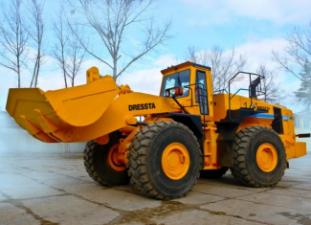

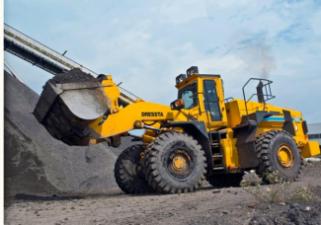

The Dressta 555 C Extra is a wheel loader manufactured by Dressta from 2007 to 2015. It has a weight of 28.9 tons and a transport …

The Dressta 555 C Extra is a wheel loader manufactured by Dressta from 2007 to 2015. It has a weight of 28.9 tons and a transport length of 9.28 meters. The bucket capacity is 4.2 cubic meters, with a width of 3.49 meters. The maximum discharge height is 3.3 meters. It has a travel speed of 35 km/h and a transport width of 3.27 meters. The transport height is 3.65 meters. The lifting force is 280.6 kN. The turning radius outside is 6.5 meters. The maximum bucket capacity is 8.4 cubic meters, while the minimum is 4.2 cubic meters.

555 C Extra

Years of manufacture: 2007—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 555 C Extra Dressta

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 28.9 t

Standard tyres: 26.5x25-28 PR

Bucket width: 3.49 m

Bucket capacity: 4.2 m³

Bucket capacity min.: 4.2 m³

Bucket capacity max.: 8.4 m³

Transport length: 9.28 m

Transport width: 3.27 m

Transport height: 3.65 m

Travel speed: 35 km/h

Max. discharge height: 3.3 m

Turning radius outside: 6.5 m

Lifting force: 280.6 kN

Model series: C

Engine manuf.: Cummins

Engine type: QSM11

Engine power: 247 kW

Displacement: 10.8 l

Revolutions at max torque: 1400 rpm

More technical details, like: steering mode, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

555 C Extra Dressta Specification for Europe (EN)

Dressta 555 C Extra FAQ

When was the Dressta 555 C Extra manufactured?

The Dressta 555 C Extra was manufactured from 2007 to 2015.

How much does the Dressta 555 C Extra weigh?

The Dressta 555 C Extra weighs 28.9 tons.

What are the transport dimensions of the Dressta 555 C Extra wheel loader?

The Dressta 555 C Extra has a transport length of 9.28 meters, a transport width of 3.27 meters, and a transport height of 3.65 meters.

What is the travel speed of the Dressta 555 C Extra wheel loader?

The Dressta 555 C Extra has a travel speed of 35 km/h.

What are the undercarriage specifications of the Dressta 555 C Extra wheel loader?

The Dressta 555 C Extra wheel loader is equipped with standard tyres sized 26.5x25-28 PR.

What is the turning radius of the Dressta 555 C Extra wheel loader?

The Dressta 555 C Extra has an outside turning radius of 6.5 meters.

What is the lifting force of the Dressta 555 C Extra wheel loader?

The Dressta 555 C Extra wheel loader has a lifting force of 280.6 kN.

What is the maximum discharge height of the Dressta 555 C Extra?

The Dressta 555 C Extra has a maximum discharge height of 3.3 meters.

What are the specifications of the bucket on the Dressta 555 C Extra wheel loader?

The Dressta 555 C Extra wheel loader has a bucket with a width of 3.49 meters, a capacity ranging from 4.2 to 8.4 cubic meters, with the standard bucket capacity being 4.2 cubic meters.
