570 Dresser 570 Specifications & Technical Data (1987—1994)

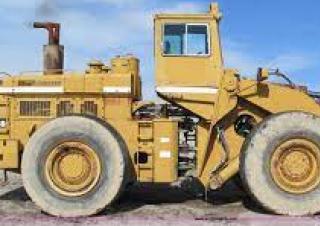

The Dresser 570 is a wheel loader manufactured from 1987 to 1994. It has a weight of 63 tons and a bucket capacity of 9 cubic mete…

The Dresser 570 is a wheel loader manufactured from 1987 to 1994. It has a weight of 63 tons and a bucket capacity of 9 cubic meters. The maximum discharge height is 5 meters and it can travel at a speed of 36 km/h. The transport width is 5 meters and the transport height is 4 meters. It has a lifting force of 448 kN and a turning radius outside of 8 meters.

Wheel Loaders Dresser 570

Technical specs - 570 Dresser

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
63.55 t
Standard tyres
65/40 x 39-30PR
Bucket capacity
9.18 m³
Transport width
5.08 m
Transport height
4.8 m
Travel speed
36.4 km/h
Max. discharge height
5.63 m
Turning radius outside
8.38 m
Lifting force
448.4 kN
Engine manuf.
Cummins
Engine type
VTA 28-C
Engine power
440 kW
Displacement
28 l
Revolutions at max torque
1500 rpm
Max. torque
2368 Nm
No. of cylinders
12
Cylinder bore x stroke
140 x 160 mm

More technical details, like: bucket width, bucket capacity min., bucket capacity max., steering mode, transport length, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Dresser 570 FAQ

When was the Dresser 570 manufactured?

The Dresser 570 was manufactured from 1987 to 1994.

How much does the Dresser 570 wheel loader weigh?

The Dresser 570 wheel loader weighs 63.55 tons.

What are the transport dimensions of the Dresser 570 wheel loader?

The Dresser 570 wheel loader has a transport width of 5.08 meters and a transport height of 4.8 meters.

What is the travel speed of the Dresser 570 wheel loader?

The Dresser 570 wheel loader has a travel speed of 36.4 km/h.

What are the undercarriage tyre specifications of the Dresser 570 wheel loader?

The Dresser 570 wheel loader is equipped with standard tyres sized 65/40 x 39-30PR.

What is the turning radius of the Dresser 570 wheel loader?

The Dresser 570 wheel loader has an outside turning radius of 8.38 meters.

What are the power ratings of the Dresser 570 wheel loader?

The source data does not provide power rating information for the Dresser 570 wheel loader.

What is the maximum discharge height of the Dresser 570?

The Dresser 570 has a maximum discharge height of 5.63 meters.

What is the bucket capacity of the Dresser 570 wheel loader?

The bucket capacity of the Dresser 570 wheel loader is 9.18 cubic meters.

How much is a Dresser 570 Wheel loader (1987u20131994) worth?

The residual value of the Dresser 570 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
