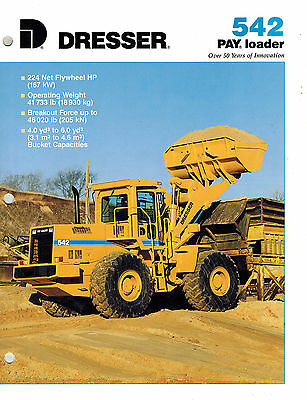

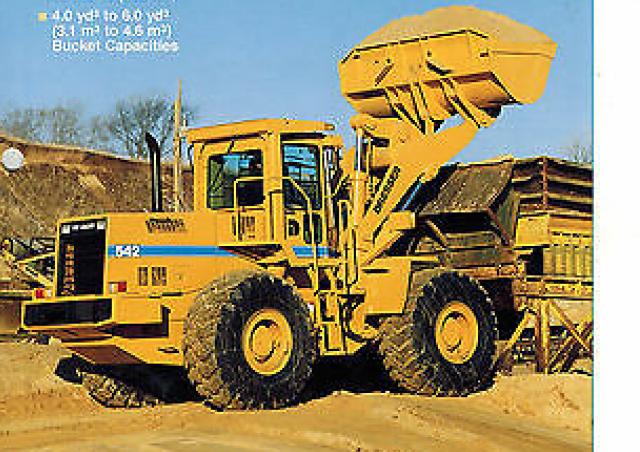

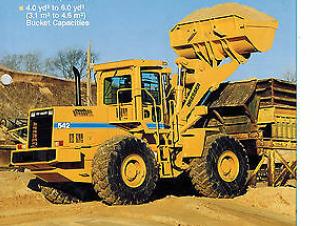

542 Dresser 542 Specifications & Technical Data (1990—1994)
Technical specs - 542 Dresser
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 18 t
- Standard tyres
- 26.5 x 25-20PR
- Bucket width
- 3 m
- Bucket capacity min.
- 3 m³
- Bucket capacity max.
- 4 m³
- Transport length
- 6.44 m
- Transport width
- 3.05 m
- Transport height
- 3.58 m
- Travel speed
- 37.3 km/h
- Max. discharge height
- 4.09 m
- Lifting force
- 205 kN
- Engine manuf.
- KDC
- Engine type
- 614TA
- Engine power
- 167 kW
- Displacement
- 8.27 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 853 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 114 x 135 mm
More technical details, like: bucket capacity, steering mode, turning radius outside, model series, dimension lxwxh, emission level are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Swing loader
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download datasheets (PDF)
