SD380 Doosan SD380 Specifications & Technical Data (2021—2023)

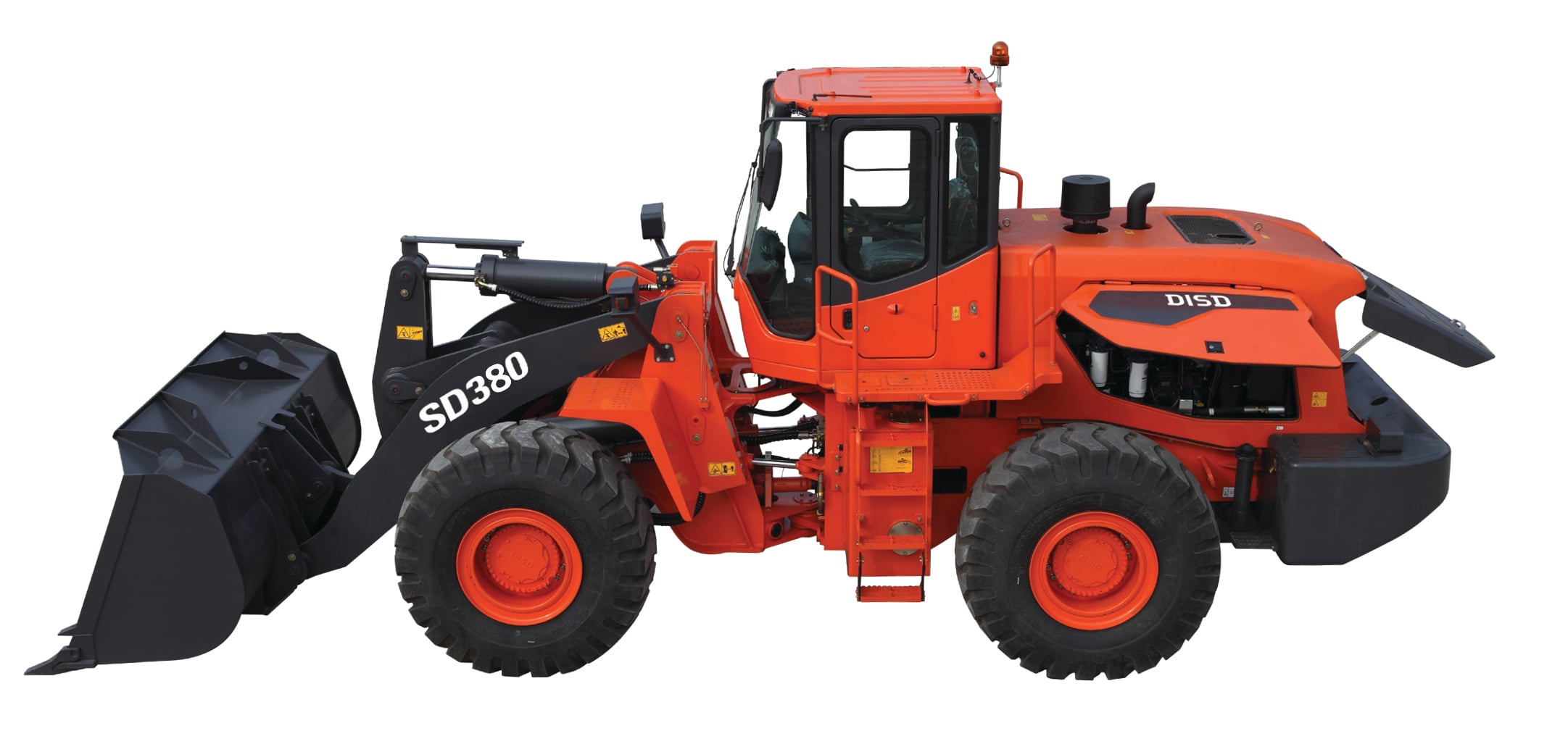

The Doosan SD380 is a wheel loader manufactured since 2021. With a weight of 19 tons, it has a transport length of 8.434 meters an…

The Doosan SD380 is a wheel loader manufactured since 2021. With a weight of 19 tons, it has a transport length of 8.434 meters and a transport width of 3.026 meters. The machine stands at a transport height of 3.45 meters. Equipped with a bucket capacity of 3.2 cubic meters, it can handle a maximum discharge height of 3.2 meters. The wheel loader has a travel speed of 35.1 km/h and a turning radius outside of 6.74 meters. It boasts a lifting force of 183 kN. The bucket capacity ranges from a minimum of 3.2 cubic meters to a maximum of 5 cubic meters. Additionally, the machine features air conditioning as special equipment.

Wheel Loaders Doosan SD380

Technical specs - SD380 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19 t
Standard tyres
23.5 - 25 - 20 PR
Bucket capacity
3.2 m³
Bucket capacity min.
3.2 m³
Bucket capacity max.
5 m³
Transport length
8.434 m
Transport width
3.026 m
Transport height
3.45 m
Travel speed
35.1 km/h
Max. discharge height
3.2 m
Turning radius outside
6.74 m
Lifting force
183 kN
Model series
SD
Engine manuf.
Weichai Steyr
Engine type
WD10G240E343
Engine power
178 kW
Displacement
9.7 l
Revolutions at max torque
1500 rpm
Max. torque
1100 Nm
No. of cylinders
6
Cylinder bore x stroke
126x130 mm
Emission level
Tier 3

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan SD380 FAQ

When was the Doosan SD380 manufactured?

The Doosan SD380 was manufactured from 2021 to 2023.

How much does the Doosan SD380 wheel loader weigh?

The Doosan SD380 wheel loader weighs 19 tons.

What are the transport dimensions of the Doosan SD380 wheel loader?

The Doosan SD380 has a transport length of 8.43 meters, a transport width of 3.03 meters, and a transport height of 3.45 meters.

What is the travel speed of the Doosan SD380 wheel loader?

The Doosan SD380 wheel loader has a travel speed of 35.1 km/h.

What are the undercarriage specifications of the Doosan SD380 wheel loader?

The Doosan SD380 wheel loader is equipped with standard tyres sized 23.5 - 25 - 20 PR.

What is the turning radius of the Doosan SD380 wheel loader?

The Doosan SD380 wheel loader has an outside turning radius of 6.74 meters.

What is the lifting force rating of the Doosan SD380 wheel loader?

The Doosan SD380 wheel loader has a lifting force rating of 183 kN.

What is the maximum discharge height of the Doosan SD380?

The Doosan SD380 has a maximum discharge height of 3.2 meters.

What are the bucket capacity specifications of the Doosan SD380 wheel loader?

The Doosan SD380 wheel loader has a bucket capacity of 3.2 cubic meters, with a minimum capacity of 3.2 cubic meters and a maximum capacity of 5 cubic meters.

How much is a Doosan SD380 Wheel loader (2021u20132023) worth?

The residual value of the Doosan SD380 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan SD380 overview

Doosan SD380 features overview

GearBox

The torque converter gearbox from German manufacturer ZF perfectly matches the engine, while Doosan's uniquely designed and patented gearshift-shock-improving technology efficiently prolongs the service life of the gearbox.


Acceleration Performance Exceeds Industry Level

The injection pump has undergone special debugging at a professional test bench and features greatly improved engine acceleration performance, enabling Doosan machines to start work in the 3rd second while other brand machines are still in the acceleration phase.


Transmission Shaft

The use of a reinforced drive shaft and a self-locking nut for the drive shaft's connecting bolt has improved the durability of the drive system.


Engine / Powertrain / Drivetrain

DISD – A Pioneer of Low-RPM Engine Matching Technology!

With 178KW rated power and 2,000 rpm rated rotation, the Weichai WD10G220E343 engine has been adjusted on the basis of condition subdivision, enabling lower fuel consumption in the most commonly used operating states.


Hydraulic system

Cooling System

By improving the cooling system's layout and materials, DISD's unique patented cooling technology greatly reduces hydraulic oil temperature and coolant temperature during operation time, thus resolving the high temperature problem that has been hanging over the industry for many years. The machine is guaranteed not to overheat even after 24hrs of continuous work under 45°C atmospheric temperature.


Entertainment System

High-quality audio entertainment systems (MP3, radio) create a pleasant and relaxed work environment. A USB port is also available for charging mobile phones.


Operator's cab

Cab

The cab's interior features an ergonomic design, a super-large driving space, wider front and rear visual fields, a user-friendly design for easier operability, and industry-leading driving comfort. A new model of shock pad is used to provide stronger durability and reduced shock and noise, effectively relieving the driver's fatigue.


Bucket and Ground Engaging Tools

Hydraulic System Action Time

The sum total of the times of the three actions (lifting 5.5s, dumping 1.5s, lowering 3.6s) is 10.6s, which is much faster than the industry level, leading to a shorter cycle operation time and greater efficiency.
