SD300 Doosan SD300 Specifications & Technical Data (2021—2023)

The Doosan SD300 is a wheel loader manufactured since 2021. With a weight of 16.8 tons, it has a transport length of 8.08 meters. …

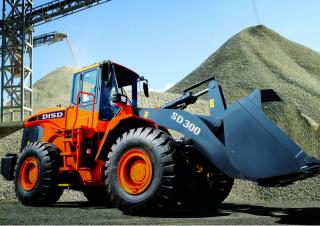

The Doosan SD300 is a wheel loader manufactured since 2021. With a weight of 16.8 tons, it has a transport length of 8.08 meters. The bucket capacity is 3 cubic meters, with a width of 2.992 meters. It can reach a maximum discharge height of 4.15 meters. The transport width is 2.976 meters, while the transport height is 3.127 meters. The SD300 has a lifting force of 161 kN. Additionally, it is equipped with air conditioning for operator comfort.

Wheel Loaders Doosan SD300
Wheel Loaders Doosan SD300
Wheel Loaders Doosan SD300
Wheel Loaders Doosan SD300
Wheel Loaders Doosan SD300
Wheel Loaders Doosan SD300

Technical specs - SD300 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.8 t
Standard tyres
23.5-25-16PR
Bucket width
2.992 m
Bucket capacity
3 m³
Transport length
8.08 m
Transport width
2.976 m
Transport height
3.127 m
Max. discharge height
4.15 m
Lifting force
161 kN
Model series
SD
Engine manuf.
Weichai
Engine type
WD10G220E23
Engine power
162 kW
Displacement
9.726 l
Max. torque
930 Nm
No. of cylinders
6
Cylinder bore x stroke
126x130 mm
Emission level
Tier 2

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan SD300 FAQ

When was the Doosan SD300 manufactured?

The Doosan SD300 was manufactured from 2021 to 2023.

How much does the Doosan SD300 wheel loader weigh?

The Doosan SD300 wheel loader weighs 16.8 tons.

What are the transport dimensions of the Doosan SD300 wheel loader?

The Doosan SD300 has a transport length of 8.08 meters, a transport width of 2.98 meters, and a transport height of 3.13 meters.

What is the standard tyre size of the Doosan SD300 wheel loader?

The Doosan SD300 wheel loader is equipped with standard tyres sized 23.5-25-16PR.

What are the power ratings of the Doosan SD300 wheel loader?

The source data does not provide power ratings for the Doosan SD300 wheel loader.

What is the material handling capacity of the Doosan SD300 in terms of maximum discharge height?

The Doosan SD300 has a maximum discharge height of 4.15 meters.

What are the specifications of the primary work tool on the Doosan SD300 wheel loader?

The Doosan SD300 wheel loader has a bucket with a capacity of 3 cubic meters and a width of 2.99 meters.

How much is a Doosan SD300 Wheel loader (2021u20132023) worth?

The residual value of the Doosan SD300 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan SD300 overview

Doosan SD300 features overview

GearBox

The torque converter gearbox from an established domestic manufacturer perfectly matches the engine, while Doosan's uniquely designed and patented gearshift-shock- improving technology efficiently prolongs the service life of the gearbox.


Acceleration Performance Exceeds Industry Level

The injection pump has undergone special debugging at a professional test bench and features greatly improved engine acceleration performance, enabling Doosan machines to start work in the 3rd second while other brand machines are still in the acceleration phase.


Booster Pump Benefits

The booster pump delivers a higher augmented-thrust ratio, more stable braking performance, and more convenient daily maintenance thanks to its being mounted on the body's side.


Engine / Powertrain / Drivetrain

DISD – A Pioneer of Low-RPM Engine Matching Technology!

With 162KW rated power and 2,000 rpm rated rotation, the Weichai Steyr WD10G220E23 engine has been adjusted on the basis of condition subdivision, enabling lower fuel consumption in the most commonly used operating states.


Hydraulic system

Cooling System

By improving the cooling system's layout and materials, DISD's unique patented cooling technology greatly reduces hydraulic oil temperature and coolant temperature during operation time, thus resolving the high temperature problem that has been hanging over the industry for many years. The machine is guaranteed not to overheat even after 24hrs of continuous work under 45°C atmospheric temperature.


Entertainment System

High-quality audio entertainment systems (MP3, radio) create a pleasant and relaxed work environment. A USB port is also available for charging mobile phones.


Operator's cab

Comfort

The whole system comes with a standard integrated driving system that respects human health and safety, relieves fatigue, and improves work efficiency.


Cab

The cab's interior features an ergonomic design, a super-large driving space, wider front and rear visual fields, a user-friendly design for easier operability, and industry-leading driving comfort. A new model of shock pad is used to provide stronger durability and reduced shock and noise, effectively relieving the driver's fatigue.


Bucket and Ground Engaging Tools

Hydraulic System Action Time

The sum total of the times of the three actions (lifting 5.5s, dumping 1.5s, lowering 3.5s) is 10.5s, which is much faster than the industry level, leading to a shorter cycle operation time and greater efficiency.
