    Lectura specs Baumaschinen Radlader Radlader Doosan Doosan DL550-5 specifications

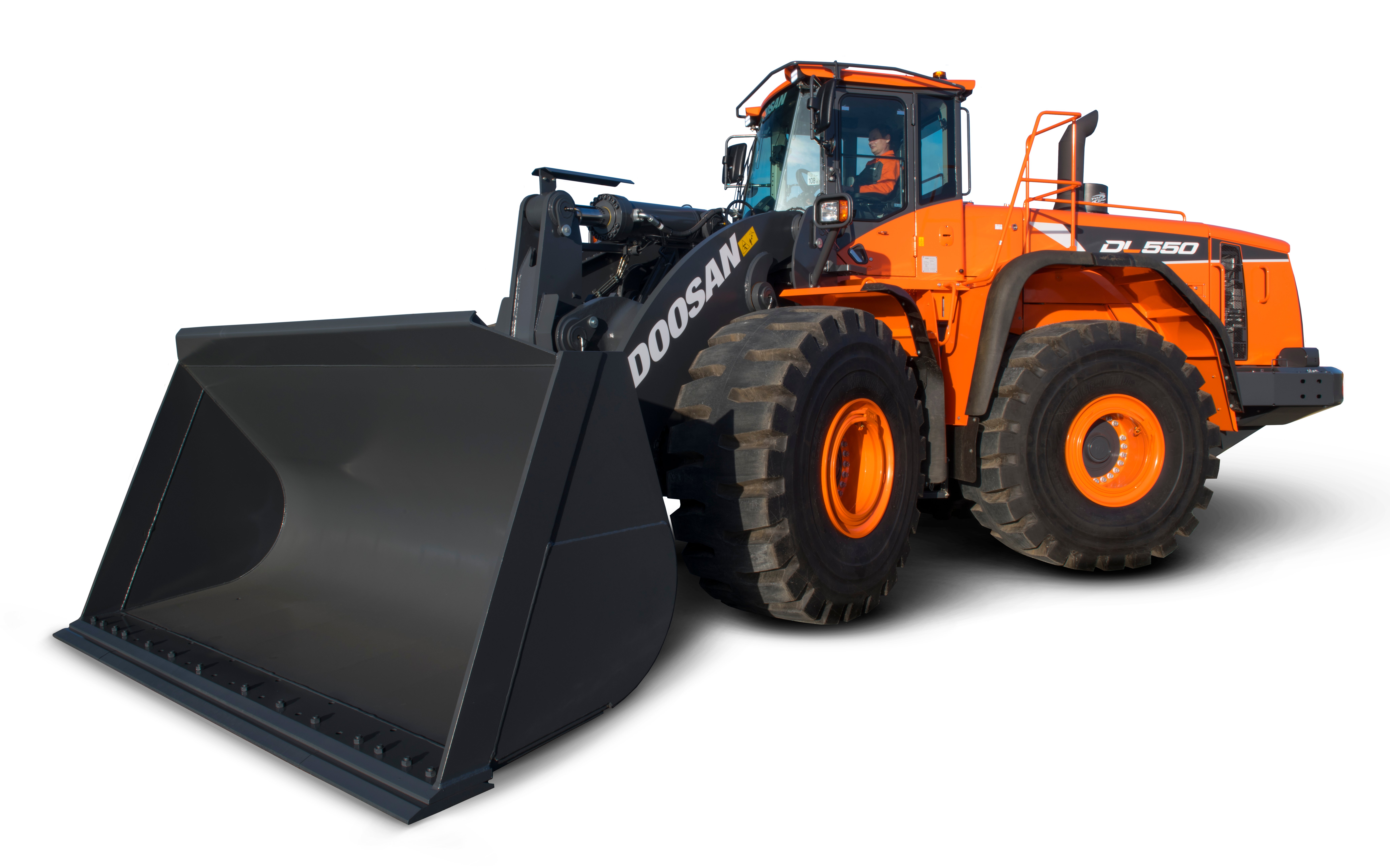

    Technical specs - DL550-5 Doosan

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 32.77 t
    Standard tyres 29.5 R25 (L5)
    Bucket width 3.405 m
    Bucket capacity 5.4 m³
    Bucket capacity min. 5.4 m³
    Steering mode KL
    Transport length 9.87 m
    Transport width 3.405 m
    Transport height 3.785 m
    Travel speed 37 km/h
    Max. discharge height 3.285 m
    Turning radius outside 7.565 m
    Lifting force 247 kN
    Engine manuf. Scania
    Engine type DC 13
    Engine power 283 kW
    Engine power 380 HP
    Displacement 12.7 l
    Revolutions at max torque 1300 rpm
    Max. torque 1765 Nm
    No. of cylinders 6
    Cylinder bore x stroke 130 x 160 mm
    Emission level Stage IV, Tier 4 f
    Bucket capacity max. ###
    Dimension lxwxh ###
    Weight ###
    Engine Manufacturer ###
    Engine Model ###
    Emission Rating ###
    Emissions Technology ###
    After Treatment System ###
    Aspiration ###
    Rated Speed ###
    Engine Output - Gross ###
    Torque ###
    Transmission Type ###
    Transmission Manufacturer ###
    Transmission Model ###
    Traction Control ###
    Tyre - Size ###
    Service Brake - Type ###
    Service Brake - Location ###
    Height - Over Cab ###
    Wheelbase ###
    Length - Shovel On Ground ###
    Ground Clearance ###
    Width - Over Tyres ###
    Shovel - Type ###
    Shovel - Width ###
    Full Lift Dump Height ###
    Full Lift Reach ###
    Loader - Arm Type ###
    Loader - Geometry ###
    Dump Angle - At Dump ###
    Dump Angle - Maximum ###
    Height - Pivot Pin ###
    Full Lift Dump Height - Maximum ###
    Dig Depth ###
    Turning Radius - Over Shovel ###
    Fuel Tank ###
    Heaped Capacity ###
    Straight Tipping Load ###
    Full Turn Tipping Load ###
    Breakout - Shovel ###
    Breakout - Shovel ###
    Ride Control System ###
    Load Sensing ###
    Oscillation - Rear Axle ###
    Operating Weight ###

    Basic model with ROPS cabin, std. shovel and teeth

    DL550-5 Doosan - Special equipment

    • Diesel particulate filter
    • Pivoting loader
    • telescopic
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.

    Download data sheets - Doosan DL550-5
