DL550-3 Doosan DL550-3 Specifications & Technical Data (2013—2017)

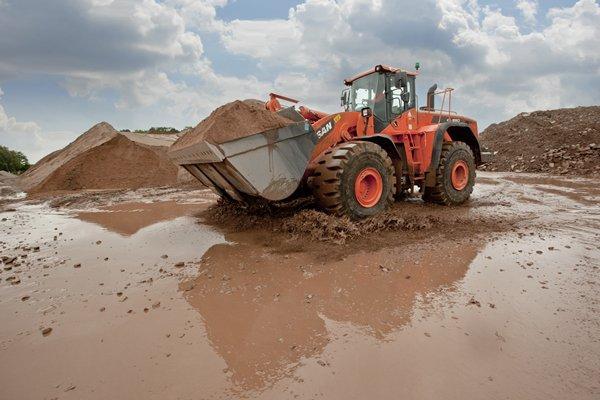

The Doosan DL550-3 is a wheel loader manufactured from 2013 to 2017. It has a weight of 31.5 tons and a bucket capacity of 4.8 cub…

The Doosan DL550-3 is a wheel loader manufactured from 2013 to 2017. It has a weight of 31.5 tons and a bucket capacity of 4.8 cubic meters, with a bucket width of 3.4 meters. The maximum discharge height is 4.58 meters and it can travel at a speed of 36 km/h. The transport width is 3.53 meters and the transport height is 3.4 meters. It has a lifting force of 273 kN and a turning radius outside of 7.37 meters. Special equipment includes air conditioning.

DL550-3

Years of manufacture: 2013—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DL550-3 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 31.5 t

Standard tyres: 29.5 R25-22

Bucket width: 3.4 m

Bucket capacity: 4.8 m³

Bucket capacity min.: 4.8 m³

Steering mode: KL

Transport width: 3.53 m

Transport height: 3.4 m

Travel speed: 36 km/h

Max. discharge height: 4.58 m

Turning radius outside: 7.37 m

Lifting force: 273 kN

Model series: DL

Engine manuf.: Scania

Engine type: DC 13

Engine power: 283 kW

Displacement: 12.7 l

Revolutions at max torque: 1300 rpm

Max. torque: 1765 Nm

No. of cylinders: 6

Cylinder bore x stroke: 130x160 mm

Emission level: IV. Tier 4 f

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DL550-3 FAQ

When was the Doosan DL550-3 manufactured?

The Doosan DL550-3 was manufactured from 2013 to 2017.

How much does the Doosan DL550-3 wheel loader weigh?

The Doosan DL550-3 wheel loader weighs 31.5 tons.

What are the transport dimensions of the Doosan DL550-3 wheel loader?

The Doosan DL550-3 has a transport width of 3.53 meters and a transport height of 3.4 meters.

What is the travel speed of the Doosan DL550-3 wheel loader?

The Doosan DL550-3 has a travel speed of 36 km/h.

What are the standard tyres of the Doosan DL550-3 wheel loader?

The Doosan DL550-3 wheel loader is equipped with standard tyres 29.5 R25-22.

What are the maneuverability specifications of the Doosan DL550-3 wheel loader?

The Doosan DL550-3 has an articulated-frame steering mode and an outside turning radius of 7.37 meters.

What are the power ratings of the Doosan DL550-3?

The available data does not include power ratings for the Doosan DL550-3.

What is the material handling capacity of the Doosan DL550-3 in terms of discharge height?

The Doosan DL550-3 has a maximum discharge height of 4.58 meters.

What are the specifications of the bucket on the Doosan DL550-3 wheel loader?

The Doosan DL550-3 wheel loader has a bucket capacity of 4.8 cubic meters and a bucket width of 3.4 meters.

How much is a Doosan DL550-3 Wheel loader (2013u20132017) worth?

The residual value of the Doosan DL550-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
