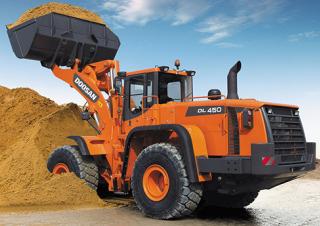

DL450-3 Doosan DL450-3 Specifications & Technical Data (2013—2017)

The Doosan DL450-3 is a wheel loader manufactured by Doosan from 2013 to 2017. It has a weight of 25.6 tons and a transport length…

The Doosan DL450-3 is a wheel loader manufactured by Doosan from 2013 to 2017. It has a weight of 25.6 tons and a transport length of 8.71 meters. The bucket capacity is 4.8 cubic meters with a width of 3.2 meters. The maximum discharge height is 3.2 meters. It has a travel speed of 38 km/h and a transport width of 3 meters. The transport height is 3.54 meters. The lifting force is 239 kN and the turning radius outside is 7.05 meters. The special equipment includes air conditioning.

DL450-3

Years of manufacture: 2013—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DL450-3 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 25.6 t

Standard tyres: 29.5 R25-22

Bucket width: 3.2 m

Bucket capacity: 4.8 m³

Bucket capacity min.: 4.8 m³

Steering mode: KL

Transport length: 8.71 m

Transport width: 3 m

Transport height: 3.54 m

Travel speed: 38 km/h

Max. discharge height: 3.2 m

Turning radius outside: 7.05 m

Lifting force: 239 kN

Model series: DL

Engine manuf.: Scania

Engine type: DC 13

Engine power: 264 kW

Displacement: 12.7 l

Revolutions at max torque: 1400 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DL450-3 FAQ

When was the Doosan DL450-3 manufactured?

The Doosan DL450-3 was manufactured from 2013 to 2017.

How much does the Doosan DL450-3 weigh?

The Doosan DL450-3 weighs 25.6 tons.

What are the transport dimensions of the Doosan DL450-3 wheel loader?

The Doosan DL450-3 has a transport length of 8.71 meters, a transport width of 3 meters, and a transport height of 3.54 meters.

What is the travel speed of the Doosan DL450-3 wheel loader?

The Doosan DL450-3 has a travel speed of 38 km/h.

What are the undercarriage specifications of the Doosan DL450-3 wheel loader?

The Doosan DL450-3 wheel loader is equipped with standard tyres sized 29.5 R25-22.

What are the maneuverability specifications of the Doosan DL450-3 wheel loader?

The Doosan DL450-3 has an outside turning radius of 7.05 meters and uses articulated-frame steering for maneuverability.

What is the lifting force of the Doosan DL450-3 wheel loader?

The Doosan DL450-3 wheel loader has a lifting force of 239 kN.

What is the material handling capacity of the Doosan DL450-3 in terms of discharge height?

The Doosan DL450-3 has a maximum discharge height of 3.2 meters.

What are the bucket specifications of the Doosan DL450-3 wheel loader?

The Doosan DL450-3 wheel loader has a bucket capacity of 4.8 cubic meters, a minimum bucket capacity of 4.8 cubic meters, and a bucket width of 3.2 meters.
