DL420-7 Doosan DL420-7 Specifications & Technical Data (2021—2023)

The Doosan DL420-7 is a wheel loader manufactured since 2021. It has a weight of 23.42 tons and a transport length of 9.138 meters…

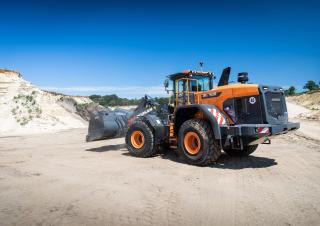

The Doosan DL420-7 is a wheel loader manufactured since 2021. It has a weight of 23.42 tons and a transport length of 9.138 meters. The bucket capacity is 4.3 cubic meters, with a width of 3.2 meters. The maximum discharge height is 2.835 meters. It has a travel speed of 40 km/h and a transport width of 2.98 meters. The transport height is 3.66 meters. The lifting force is 183 kN, and the turning radius outside is 6.388 meters. The bucket capacity ranges from a minimum of 4.3 cubic meters to a maximum of 4.9 cubic meters.

DL420-7

Years of manufacture: 2021—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DL420-7 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 23.42 t

Standard tyres: 26.5 R25

Bucket width: 3.2 m

Bucket capacity: 4.3 m³

Bucket capacity min.: 4.3 m³

Bucket capacity max.: 4.9 m³

Steering mode: KL

Transport length: 9.14 m

Transport width: 2.98 m

Transport height: 3.66 m

Travel speed: 40 km/h

Max. discharge height: 2.84 m

Turning radius outside: 6.388 m

Lifting force: 183 kN

Model series: DL

Engine manuf.: Scania

Engine type: DC13

Engine power: 257 kW

Dimension lxwxh: 1398x965x1119 mm

Displacement: 12.7 l

Revolutions at max torque: 1800 rpm

Max. torque: 2196/1100 Nm

No. of cylinders: 6

Cylinder bore x stroke: 130x160 mm

Emission level: Stage V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DL420-7 FAQ

When was the Doosan DL420-7 manufactured?

The Doosan DL420-7 was manufactured from 2021 to 2023.

How much does the Doosan DL420-7 weigh?

The Doosan DL420-7 weighs 23.42 tons.

What are the transport dimensions of the Doosan DL420-7 wheel loader?

The Doosan DL420-7 has a transport length of 9.14 meters, a transport width of 2.98 meters, and a transport height of 3.66 meters.

What is the travel speed of the Doosan DL420-7 wheel loader?

The Doosan DL420-7 has a travel speed of 40 km/h.

What are the undercarriage specifications of the Doosan DL420-7 wheel loader?

The Doosan DL420-7 wheel loader is equipped with standard tyres sized 26.5 R25.

What are the maneuverability specifications of the Doosan DL420-7 wheel loader?

The Doosan DL420-7 has an articulated-frame steering mode and an outside turning radius of 6.388 meters.

What is the lifting force of the Doosan DL420-7 wheel loader?

The Doosan DL420-7 has a lifting force of 183 kN. No power rating data is provided in the source.

What is the material handling capacity of the Doosan DL420-7 in terms of discharge height?

The Doosan DL420-7 has a maximum discharge height of 2.84 meters for material handling.

What are the specifications of the bucket on the Doosan DL420-7 wheel loader?

The Doosan DL420-7 wheel loader has a bucket capacity ranging from 4.3 to 4.9 cubic meters, with a bucket width of 3.2 meters.
