DL350-5 Doosan DL350-5 Specifications & Technical Data (2015—2021)

The Doosan DL350-5 is a wheel loader manufactured by Doosan from 2015 to 2021. It has a weight of 19.74 tons and a transport lengt…

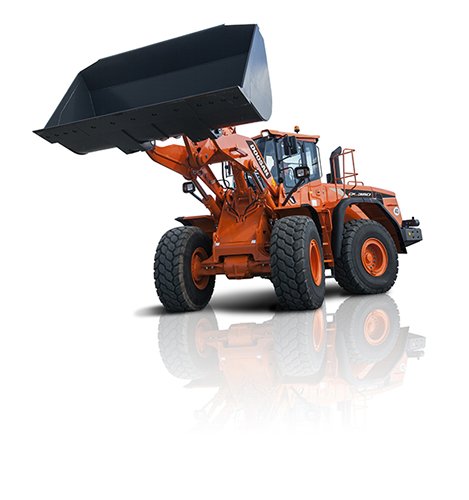

The Doosan DL350-5 is a wheel loader manufactured by Doosan from 2015 to 2021. It has a weight of 19.74 tons and a transport length of 8.32 meters. The bucket capacity is 3.5 cubic meters with a width of 3 meters. The maximum discharge height is 3.04 meters. It has a travel speed of 37 km/h and a transport width and height of 3 meters and 3.47 meters respectively. The lifting force of this wheel loader is 164 kN. It has a turning radius outside of 6.61 meters. The special equipment included is an airconditioning system.

DL350-5

Years of manufacture: 2015—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DL350-5 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.74 t

Standard tyres: 23.5 R25 (L3)

Bucket width: 3 m

Bucket capacity: 3.5 m³

Bucket capacity min.: 3.5 m³

Steering mode: KL

Transport length: 8.32 m

Transport width: 3 m

Transport height: 3.47 m

Travel speed: 37 km/h

Max. discharge height: 3.04 m

Turning radius outside: 6.61 m

Lifting force: 164 kN

Model series: DL

Engine manuf.: Scania

Engine type: DC 09

Engine power: 202 kW

Displacement: 9.3 l

Revolutions at max torque: 1400 rpm

Max. torque: 1275 Nm

No. of cylinders: 5

Cylinder bore x stroke: 130 x 140 mm

Emission level: Stage IV. Tier 4 f

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DL350-5 FAQ

When was the Doosan DL350-5 manufactured?

The Doosan DL350-5 was manufactured from 2015 to 2021.

How much does the Doosan DL350-5 wheel loader weigh?

The Doosan DL350-5 wheel loader weighs 19.74 tons.

What are the transport dimensions of the Doosan DL350-5 wheel loader?

The Doosan DL350-5 has a transport length of 8.32 meters, a transport width of 3 meters, and a transport height of 3.47 meters.

What is the travel speed of the Doosan DL350-5 wheel loader?

The Doosan DL350-5 has a travel speed of 37 km/h.

What are the undercarriage specifications of the Doosan DL350-5 wheel loader?

The Doosan DL350-5 wheel loader is equipped with standard tyres sized 23.5 R25 (L3).

What are the maneuverability specifications of the Doosan DL350-5 wheel loader?

The Doosan DL350-5 has an articulated-frame steering system and an outside turning radius of 6.61 meters.

What is the lifting force of the Doosan DL350-5 wheel loader?

The Doosan DL350-5 wheel loader has a lifting force of 164 kN.

What is the maximum discharge height of the Doosan DL350-5 wheel loader?

The Doosan DL350-5 wheel loader has a maximum discharge height of 3.04 meters.

What are the specifications of the bucket on the Doosan DL350-5 wheel loader?

The Doosan DL350-5 wheel loader has a bucket with a capacity of 3.5 cubic meters and a width of 3 meters.
