DL 420 Doosan DL 420 Specifications & Technical Data (2010—2013)

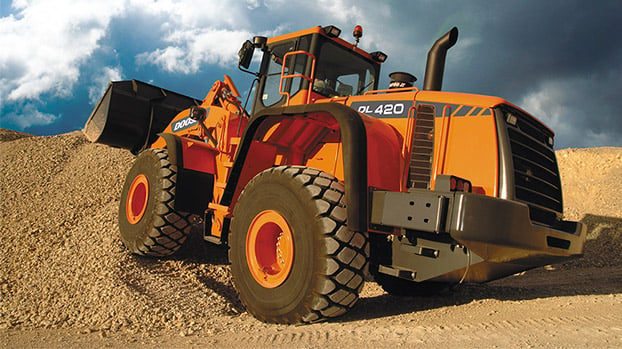

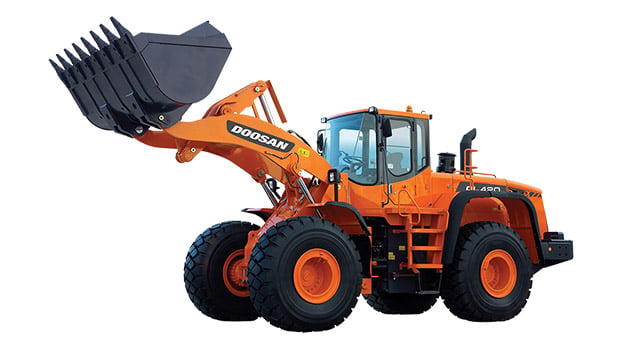

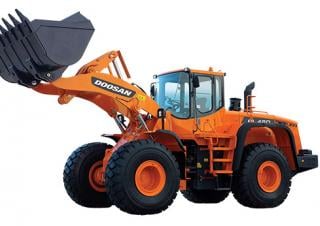

The Doosan DL 420 is a wheel loader manufactured from 2010 to 2013. It has a weight of 22.8 tons and a transport length of 8.71 me…

The Doosan DL 420 is a wheel loader manufactured from 2010 to 2013. It has a weight of 22.8 tons and a transport length of 8.71 meters. The bucket capacity is 3.9 cubic meters with a width of 3.2 meters. The maximum discharge height is 3.2 meters. It has a travel speed of 38 km/h and a transport width of 3.2 meters. The transport height is 3.52 meters. The lifting force is 212 kN and the turning radius outside is 6.98 meters. The special equipment includes air conditioning.

DL 420

Years of manufacture: 2010—2013

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DL 420 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 22.8 t

Standard tyres: 26.5 R25 L3

Bucket width: 3.2 m

Bucket capacity: 3.9 m³

Bucket capacity min.: 3.9 m³

Steering mode: KL

Transport length: 8.71 m

Transport width: 3.2 m

Transport height: 3.52 m

Travel speed: 38 km/h

Max. discharge height: 3.2 m

Turning radius outside: 6.98 m

Lifting force: 212 kN

Model series: DL

Engine manuf.: Cummins

Engine type: QSM11

Engine power: 209 kW

Displacement: 10.8 l

Revolutions at max torque: 1400 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DL 420 FAQ

When was the Doosan DL 420 manufactured?

The Doosan DL 420 was manufactured from 2010 to 2013.

How much does the Doosan DL 420 wheel loader weigh?

The Doosan DL 420 wheel loader weighs 22.8 tons.

What are the transport dimensions of the Doosan DL 420 wheel loader?

The Doosan DL 420 has a transport length of 8.71 meters, a transport width of 3.2 meters, and a transport height of 3.52 meters.

What is the travel speed of the Doosan DL 420 wheel loader?

The Doosan DL 420 has a travel speed of 38 km/h.

What are the undercarriage specifications of the Doosan DL 420 wheel loader?

The Doosan DL 420 wheel loader is equipped with standard tyres sized 26.5 R25 L3.

What are the maneuverability specifications of the Doosan DL 420 wheel loader?

The Doosan DL 420 wheel loader has an articulated-frame steering system and an outside turning radius of 6.98 meters.

What is the lifting force of the Doosan DL 420 wheel loader?

The Doosan DL 420 wheel loader has a lifting force of 212 kN.

What is the maximum discharge height of the Doosan DL 420?

The Doosan DL 420 has a maximum discharge height of 3.2 meters.

What are the bucket specifications of the Doosan DL 420 wheel loader?

The Doosan DL 420 wheel loader has a bucket capacity of 3.9 cubic meters and a bucket width of 3.2 meters.

How much is a Doosan DL 420 Wheel loader (2010u20132013) worth?

The residual value of the Doosan DL 420 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
