DL 350 Doosan DL 350 Specifications & Technical Data (2009—2013)

Model rating: 8,50 / 10

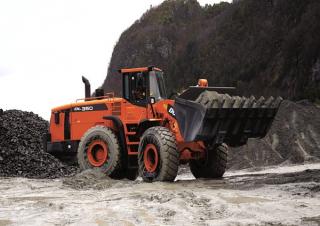

The Doosan DL 350 is a wheel loader manufactured by Doosan from 2009 to 2013. It has a weight of 19 tons and a transport length of…

The Doosan DL 350 is a wheel loader manufactured by Doosan from 2009 to 2013. It has a weight of 19 tons and a transport length of 8.467 meters. The bucket capacity is 3.6 cubic meters with a width of 2.92 meters. The maximum discharge height is 3 meters and it has a travel speed of 34 km/h. The transport width is 3 meters and the transport height is 3.426 meters. The lifting force of this machine is 171 kN and it has a turning radius outside of 6.6 meters. It is equipped with air conditioning.

DL 350

Years of manufacture: 2009—2013

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DL 350 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19 t

Standard tyres: 23.5-25 16

Bucket width: 2.92 m

Bucket capacity: 3.6 m³

Bucket capacity min.: 3.6 m³

Steering mode: KL

Transport length: 8.467 m

Transport width: 3 m

Transport height: 3.426 m

Travel speed: 34 km/h

Max. discharge height: 3 m

Turning radius outside: 6.6 m

Lifting force: 171 kN

Model series: DL

Engine manuf.: Doosan

Engine type: DL 08

Engine power: 183 kW

Displacement: 7.6 l

Revolutions at max torque: 1900 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DL 350 FAQ

When was the Doosan DL 350 manufactured?

The Doosan DL 350 was manufactured from 2009 to 2013.

How much does the Doosan DL 350 wheel loader weigh?

The Doosan DL 350 wheel loader weighs 19 tons.

What are the transport dimensions of the Doosan DL 350 wheel loader?

The Doosan DL 350 has a transport length of 8.47 meters, a transport width of 3 meters, and a transport height of 3.43 meters.

What is the travel speed of the Doosan DL 350 wheel loader?

The Doosan DL 350 wheel loader has a travel speed of 34 km/h.

What are the undercarriage specifications of the Doosan DL 350 wheel loader?

The Doosan DL 350 wheel loader is equipped with standard tyres sized 23.5-25 16.

What are the maneuverability specifications of the Doosan DL 350 wheel loader?

The Doosan DL 350 wheel loader has an articulated-frame steering system and an outside turning radius of 6.6 meters.

What is the lifting force of the Doosan DL 350 wheel loader?

The Doosan DL 350 wheel loader has a lifting force of 171 kN.

What is the maximum discharge height of the Doosan DL 350?

The Doosan DL 350 has a maximum discharge height of 3 meters.

What are the bucket specifications of the Doosan DL 350 wheel loader?

The Doosan DL 350 wheel loader has a bucket capacity of 3.6 cubic meters and a bucket width of 2.92 meters.
