475CT Clark Michigan 475CT Specifications & Technical Data (1983—1985)

The Clark Michigan 475CT is a wheel loader manufactured from 1983 to 1985. It has a bucket capacity of 9 cubic meters and a maximu…

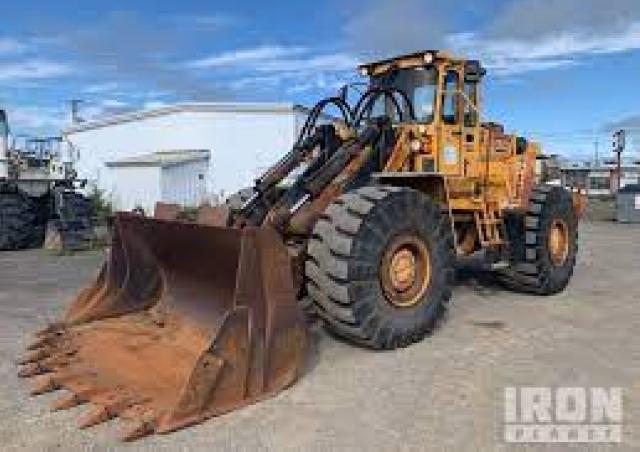

The Clark Michigan 475CT is a wheel loader manufactured from 1983 to 1985. It has a bucket capacity of 9 cubic meters and a maximum discharge height of 6 meters. The travel speed is 25 km/h, and the transport width and height are 4 meters.

Wheel Loaders Clark Michigan 475CT

Technical specs - 475CT Clark Michigan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Standard tyres
37.5-39
Bucket capacity
9.2 m³
Transport width
4.14 m
Transport height
4.912 m
Travel speed
25.4 km/h
Max. discharge height
6.309 m
Engine manuf.
Cummins
Engine type
VTA-28C
Engine power
541 kW
Displacement
28 l
Revolutions at max torque
1300 rpm
Max. torque
3204 Nm
No. of cylinders
12
Cylinder bore x stroke
140 x 152 mm

More technical details, like: weight, bucket width, bucket capacity min., bucket capacity max., steering mode, transport length, turning radius outside, lifting force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Clark Michigan 475CT FAQ

When was the Clark Michigan 475CT manufactured?

The Clark Michigan 475CT was manufactured from 1983 to 1985.

What are the transport dimensions of the Clark Michigan 475CT wheel loader?

The Clark Michigan 475CT has a transport width of 4.14 meters and a transport height of 4.91 meters.

What is the travel speed of the Clark Michigan 475CT wheel loader?

The Clark Michigan 475CT has a travel speed of 25.4 km/h.

What are the undercarriage tyre specifications for the Clark Michigan 475CT wheel loader?

The Clark Michigan 475CT wheel loader is equipped with standard tyres sized 37.5-39.

What is the maximum discharge height of the Clark Michigan 475CT?

The Clark Michigan 475CT has a maximum discharge height of 6.31 meters.

What is the bucket capacity of the Clark Michigan 475CT wheel loader?

The bucket capacity of the Clark Michigan 475CT wheel loader is 9.2 cubic meters.

How much is a Clark Michigan 475CT Wheel loader (1983u20131985) worth?

The residual value of the Clark Michigan 475CT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
