996 Changlin 996 Specifications & Technical Data (2017—2026)

The Changlin 996 is a wheel loader manufactured since 2017. It has a weight of 31.5 tons and a transport length of 9.343 meters. T…

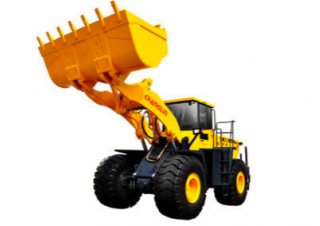

The Changlin 996 is a wheel loader manufactured since 2017. It has a weight of 31.5 tons and a transport length of 9.343 meters. The bucket capacity is 5.1 cubic meters, with a bucket width of 3.5 meters. The maximum discharge height is 3.5 meters, and it has a travel speed of 32 km/h. The transport width is 3.2 meters, and the transport height is 3.832 meters. It has a lifting force of 202 kN and a turning radius outside of 7.511 meters. The minimum bucket capacity is 5.1 cubic meters.

996

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 996 Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 31.5 t

Standard tyres: 29.5-25-28PR(L-3)

Bucket width: 3.5 m

Bucket capacity: 5.1 m³

Bucket capacity min.: 5.1 m³

Transport length: 9.343 m

Transport width: 3.2 m

Transport height: 3.832 m

Travel speed: 32 km/h

Max. discharge height: 3.5 m

Turning radius outside: 7.511 m

Lifting force: 202 kN

Engine manuf.: Cummins

Engine type: QSM11

Engine power: 250 kW

Displacement: 10.8 l

Revolutions at max torque: 2100 rpm

Max. torque: 1674/1400 Nm

Cylinder bore x stroke: 125x147 mm

Emission level: EU Stage III

More technical details, like: bucket capacity max., steering mode, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

996 Changlin Specification for Europe (EN)

Changlin 996 FAQ

When was the Changlin 996 manufactured?

The Changlin 996 was first produced in 2017.

How much does the Changlin 996 wheel loader weigh?

The Changlin 996 wheel loader weighs 31.5 tons.

What are the transport dimensions of the Changlin 996 wheel loader?

The Changlin 996 wheel loader has a transport length of 9.34 meters, a transport width of 3.2 meters, and a transport height of 3.83 meters.

What is the travel speed of the Changlin 996 wheel loader?

The Changlin 996 wheel loader has a travel speed of 32 km/h.

What are the undercarriage specifications of the Changlin 996 wheel loader?

The Changlin 996 wheel loader is equipped with standard tyres sized 29.5-25-28PR(L-3).

What is the turning radius of the Changlin 996 wheel loader?

The Changlin 996 wheel loader has an outside turning radius of 7.511 meters.

What is the lifting force of the Changlin 996 wheel loader?

The Changlin 996 wheel loader has a lifting force of 202 kN.

What is the maximum discharge height of the Changlin 996?

The Changlin 996 has a maximum discharge height of 3.5 meters.

What are the bucket specifications of the Changlin 996 wheel loader?

The Changlin 996 wheel loader has a bucket capacity of 5.1 cubic meters, a minimum bucket capacity of 5.1 cubic meters, and a bucket width of 3.5 meters.

How much is a Changlin 996 Wheel loader (2017u20132025) worth?

The residual value of the Changlin 996 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Changlin 996 overview

Engine / Powertrain / Drivetrain

Engine Features

Adopted Cummins engine that features large power reservation, low oil consumption and good power performance. Shifting control handle adopts electronic induction control prolonging service lifetime. Key components adopt international famous brand greatly enhance reliability. Wet-type axles with limited-slip differentials deliver maximum traction in changing traction conditions.

Hydraulic system

PPC Features

Imported single handle PPC features comfortable and easy and accurate operation, fast reaction. Combined flow of two pumps saves energy and increases efficiency. Hydraulic tank with vacuum device ensures easy maintenance and fixing of hydraulic system. Rexroth Loading sensitive hydraulic system with high energy saving and easy operation.

Operator's cab

Luxury cabin

Electronic monitor panel with digital show and adjustable steering wheel make operation easy and comfortable. It has the function of automatic diagnosis troubleshooting, greatly improving efficiency. Full-automatic control of the KD switch offers perfect control performance. The fabricated luxury interior decoration provides a beautiful appearance and good visibility. The ensemble constitution cabin is equipped with ROPS/FOPS.
