933 Changlin 933 Specifications & Technical Data (2017—2026)

The Changlin 933 is a wheel loader manufactured since 2017. It has a weight of 10.2 tons and a transport length of 6.863 meters. T…

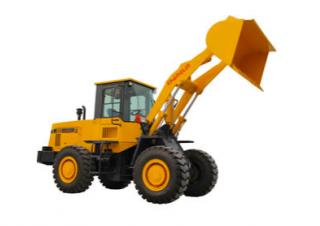

The Changlin 933 is a wheel loader manufactured since 2017. It has a weight of 10.2 tons and a transport length of 6.863 meters. The bucket capacity ranges from 1.4 to 3.1 cubic meters, with a maximum discharge height of 2.88 meters. It has a travel speed of 36 km/h and a transport width of 2.46 meters. The transport height is 3.096 meters, and it has a lifting force of 96 kN.

933

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 933 Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.2 t

Standard tyres: 17.5-25-12PR

Bucket capacity: 1.4 m³

Bucket capacity min.: 1.4 m³

Bucket capacity max.: 3.1 m³

Transport length: 6.863 m

Transport width: 2.46 m

Transport height: 3.096 m

Travel speed: 36 km/h

Max. discharge height: 2.88 m

Lifting force: 96 kN

Engine manuf.: Yuchai

Engine type: YC6B125-T20(B7635)

Engine power: 92 kW

Max. torque: 440 Nm

More technical details, like: bucket width, steering mode, turning radius outside, model series, dimension lxwxh, displacement, revolutions at max torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

933 Changlin Specification for Europe (EN)

Changlin 933 FAQ

When was the Changlin 933 manufactured?

The Changlin 933 was first produced in 2017.

How much does the Changlin 933 wheel loader weigh?

The Changlin 933 wheel loader weighs 10.2 tons.

What are the transport dimensions of the Changlin 933 wheel loader?

The Changlin 933 wheel loader has a transport length of 6.86 meters, a transport width of 2.46 meters, and a transport height of 3.1 meters.

What is the travel speed of the Changlin 933 wheel loader?

The Changlin 933 wheel loader has a travel speed of 36 km/h.

What are the undercarriage specifications of the Changlin 933 wheel loader?

The Changlin 933 wheel loader is equipped with standard tyres sized 17.5-25-12PR.

What is the lifting force of the Changlin 933 wheel loader?

The Changlin 933 wheel loader has a lifting force of 96 kN.

What is the maximum discharge height of the Changlin 933?

The Changlin 933 has a maximum discharge height of 2.88 meters.

What are the bucket capacity specifications of the Changlin 933 wheel loader?

The Changlin 933 wheel loader has a bucket capacity of 1.4 mu00b3, with a minimum capacity of 1.4 mu00b3 and a maximum capacity of 3.1 mu00b3.
