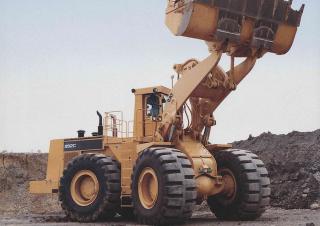

992C Caterpillar 992C Specifications & Technical Data (1986—1995)

The Caterpillar 992C is a wheel loader manufactured from 1986 to 1995. It has a weight of 88.43 tons and a transport length of 13.…

The Caterpillar 992C is a wheel loader manufactured from 1986 to 1995. It has a weight of 88.43 tons and a transport length of 13.13 meters. The bucket capacity is 10.3 cubic meters with a width of 4.75 meters. The maximum discharge height is 4.17 meters. It has a travel speed of 21 km/h and a transport width of 4.75 meters. The transport height is 5.49 meters. The lifting force is 650 kN and it has a turning radius outside of 9.91 meters.

Wheel Loaders Caterpillar 992C

Technical specs - 992C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
88.43 t
Standard tyres
45/65-45. 38PR
Bucket width
4.75 m
Bucket capacity
10.3 m³
Transport length
13.13 m
Transport width
4.75 m
Transport height
5.49 m
Travel speed
21 km/h
Max. discharge height
4.17 m
Turning radius outside
9.91 m
Lifting force
650 kN

More technical details, like: bucket capacity min., bucket capacity max., steering mode, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity min., bucket capacity max., steering mode, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 992C FAQ

When was the Caterpillar 992C manufactured?

The Caterpillar 992C was manufactured from 1986 to 1995.

How much does the Caterpillar 992C weigh?

The Caterpillar 992C weighs 88.43 tons.

What are the transport dimensions of the Caterpillar 992C wheel loader?

The Caterpillar 992C has a transport length of 13.13 meters, a transport width of 4.75 meters, and a transport height of 5.49 meters.

What is the travel speed of the Caterpillar 992C wheel loader?

The Caterpillar 992C wheel loader has a travel speed of 21 km/h.

What are the standard tyre specifications of the Caterpillar 992C?

The Caterpillar 992C has standard tyres sized 45/65-45 with a 38PR rating.

What is the turning radius of the Caterpillar 992C wheel loader?

The Caterpillar 992C wheel loader has an outside turning radius of 9.91 meters.

What is the lifting force of the Caterpillar 992C wheel loader?

The Caterpillar 992C wheel loader has a lifting force of 650 kN.

What is the maximum discharge height of the Caterpillar 992C wheel loader?

The Caterpillar 992C wheel loader has a maximum discharge height of 4.17 meters.

What are the bucket specifications of the Caterpillar 992C wheel loader?

The Caterpillar 992C wheel loader has a bucket capacity of 10.3 cubic meters and a bucket width of 4.75 meters.

How much is a Caterpillar 992C Wheel loader (1986u20131995) worth?

The residual value of the Caterpillar 992C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
